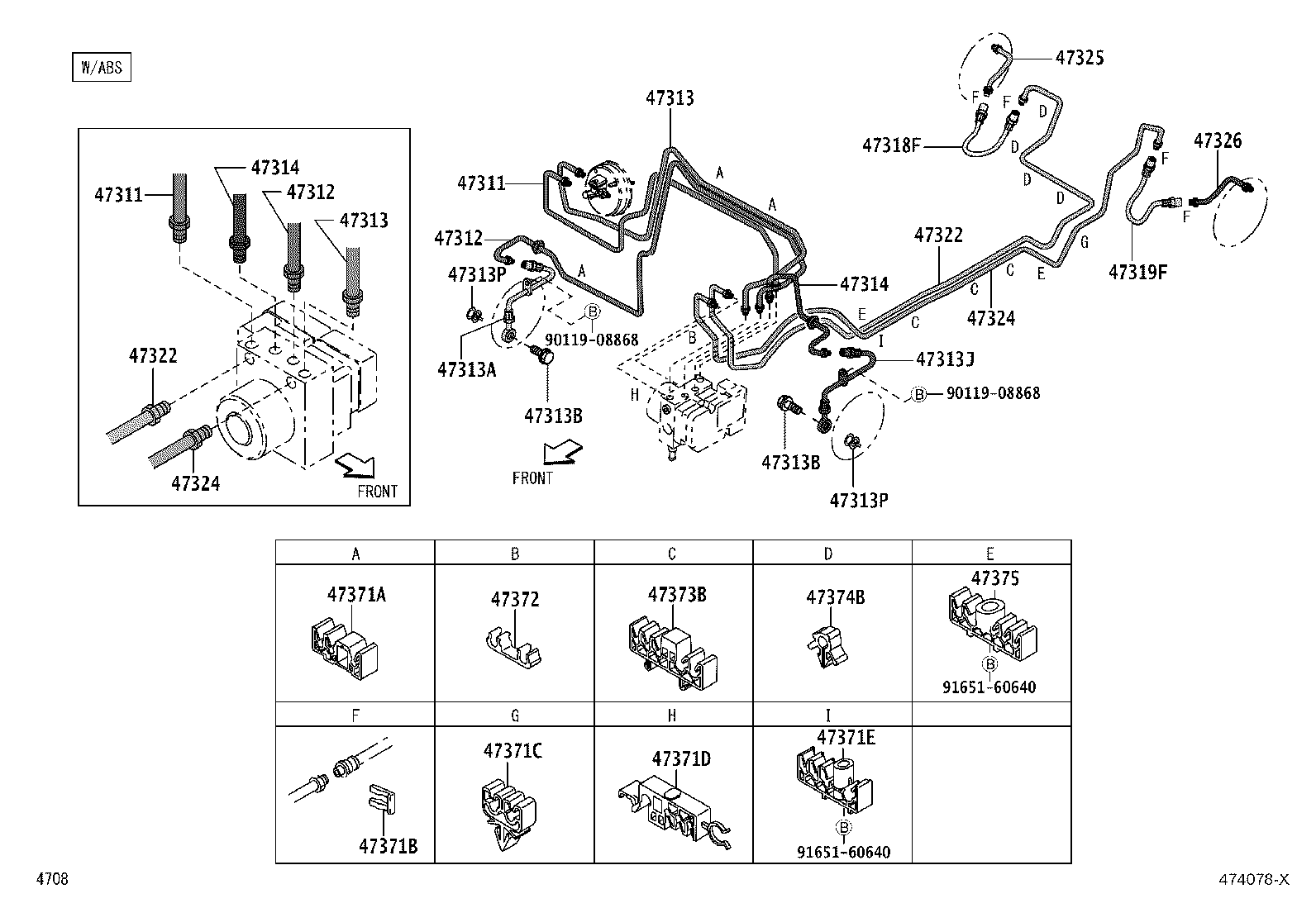

Toyota Passo KGC10 BRAKE TUBE & CLAMP

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-B1010	KGC1#,QNC10 長さ=1500	05/2004 - 12/2006	1
47311 - TUBE, FRONT BRAKE, NO.1
47311-B1010	KGC1#,QNC10 長さ=1500	05/2004 - 12/2006	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-B1010	KGC1#,QNC10 長さ=1464	05/2004 - 12/2006	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-B1010	KGC1#,QNC10 長さ=1464	05/2004 - 12/2006	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-B1010	KGC1#,QNC10 長さ=1496	05/2004 - 12/2006	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-B1010	KGC1#,QNC10 長さ=1496	05/2004 - 12/2006	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90049-22191	KGC1#,QNC10	05/2004 - 12/2006	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90044-01079	KGC1#,QNC10	05/2004 - 12/2006	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90044-01079	KGC1#,QNC10	05/2004 - 12/2006	2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90049-22192	KGC1#,QNC10	05/2004 - 12/2006	1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-97201	KGC1#,QNC10	05/2004 - 12/2006	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-97201	KGC1#,QNC10	05/2004 - 12/2006	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-B1010	KGC1#,QNC10 長さ=438	05/2004 - 12/2006	1
47314 - TUBE, FRONT BRAKE, NO.4
47314-B1010	KGC1#,QNC10 長さ=438	05/2004 - 12/2006	1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90049-22193	KGC10,QNC10	05/2004 - 12/2006	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90049-22193	KGC10,QNC10	05/2004 - 12/2006	1
47322 - TUBE, REAR BRAKE, NO.2
47322-B1010	KGC10,QNC10	05/2004 - 12/2006	1
47322 - TUBE, REAR BRAKE, NO.2
47322-B1010	KGC10,QNC10	05/2004 - 12/2006	1
47324 - TUBE, REAR BRAKE, NO.4
47324-B1010	KGC10,QNC10	05/2004 - 12/2006	1
47324 - TUBE, REAR BRAKE, NO.4
47324-B1010	KGC10,QNC10	05/2004 - 12/2006	1
47325 - TUBE, REAR BRAKE, NO.5
47325-B1010	KGC10,QNC10	05/2004 - 12/2006	1
47326 - TUBE, REAR BRAKE, NO.6
47326-B1010	KGC10,QNC10	05/2004 - 12/2006	1
47371A - CLAMP, BRAKE TUBE, NO.1
90044-64781	KGC1#,QNC10	05/2004 - 12/2006	3
47371B - CLAMP, BRAKE TUBE, NO.6
90044-65441	KGC1#,QNC10	05/2004 - 12/2006	4
47371C - CLAMP, BRAKE TUBE, NO.7
90044-64780	KGC1#,QNC10	05/2004 - 12/2006	1
47371D - CLAMP, BRAKE TUBE, NO.8
90044-64754	KGC1#,QNC10	05/2004 - 12/2006	1
47371E - CLAMP, BRAKE TUBE, NO.9
90044-64787	KGC1#,QNC10	05/2004 - 12/2006	1
47372 - CLAMP, BRAKE TUBE, NO.2
90044-64731	KGC1#,QNC10	05/2004 - 12/2006	1
47373B - CLAMP, BRAKE TUBE, NO.3
90044-64657	KGC1#,QNC10	05/2004 - 12/2006	3
47374B - CLAMP, BRAKE TUBE, NO.4
90044-64659	KGC1#,QNC10	05/2004 - 12/2006	4
47375 - CLAMP, BRAKE TUBE, NO.5
90044-64766	KGC1#,QNC10	05/2004 - 12/2006	2
Common parts
90119-08868
91651-60640

Part #	Description	Period	Qty

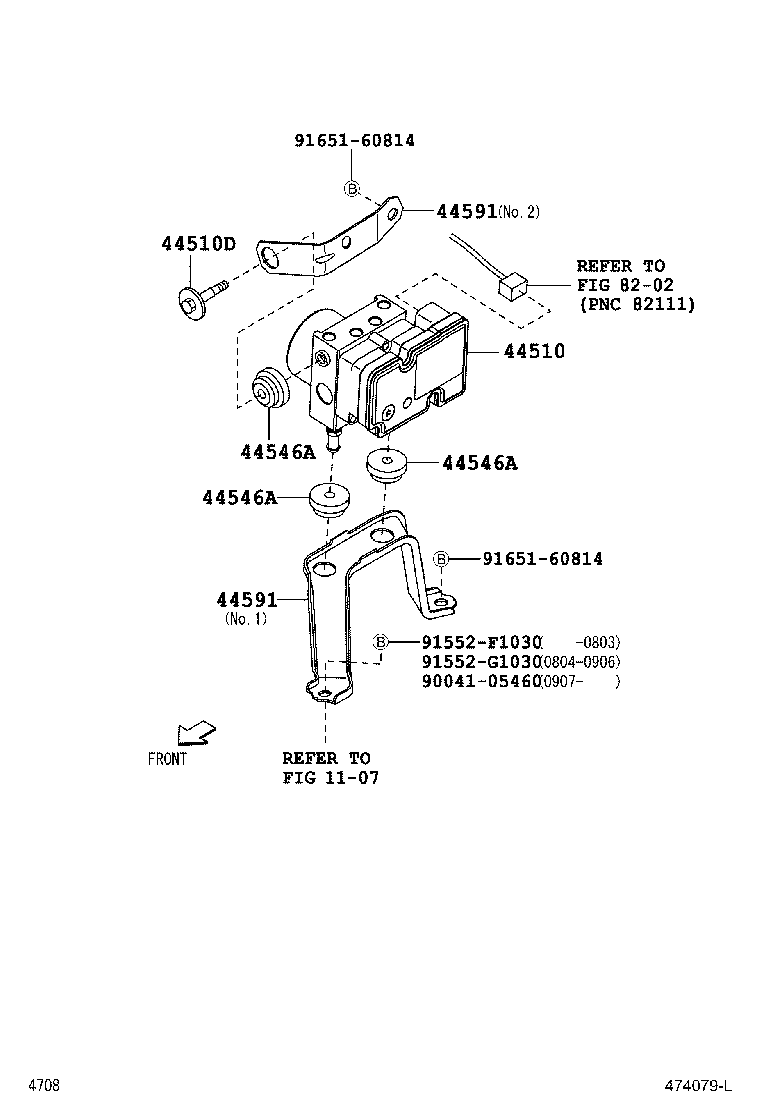

44510 - ACTUATOR ASSY, BRAKE
44050-B1010	KGC10,QNC10 ﾗﾍﾞﾙﾆﾋﾝﾊﾞﾝﾋｮｳｼﾞｱﾘ	05/2004 - 10/2006	1
44050-B1011	KGC10,QNC10 ﾗﾍﾞﾙﾆﾋﾝﾊﾞﾝﾋｮｳｼﾞｱﾘ	11/2006 - 12/2006	1
44510D - BOLT(FOR BRAKE ACTUATOR)
44548-97201	KGC1#,QNC10	05/2004 - 12/2006	1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-87101	KGC1#,QNC10	05/2004 - 12/2006	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-87101	KGC1#,QNC10	05/2004 - 12/2006	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-87101	KGC1#,QNC10	05/2004 - 12/2006	3
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-B1010	KGC1#,QNC10 NO.1	05/2004 - 12/2006	1
44591-B1020	KGC1#,QNC10 NO.2	05/2004 - 12/2006	1
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-B1010	KGC1#,QNC10 NO.1	05/2004 - 12/2006	1
44591-B1020	KGC1#,QNC10 NO.2	05/2004 - 12/2006	1
Common parts
90041-05460
91552-F1030
91552-G1030
91651-60814
Linked diagrams
1107
8202

KGC10-AHSAK (2004)

ILLUST NO. 1 OF 2(0405-1002)

ILLUST NO. 2 OF 2(0405-1002)
