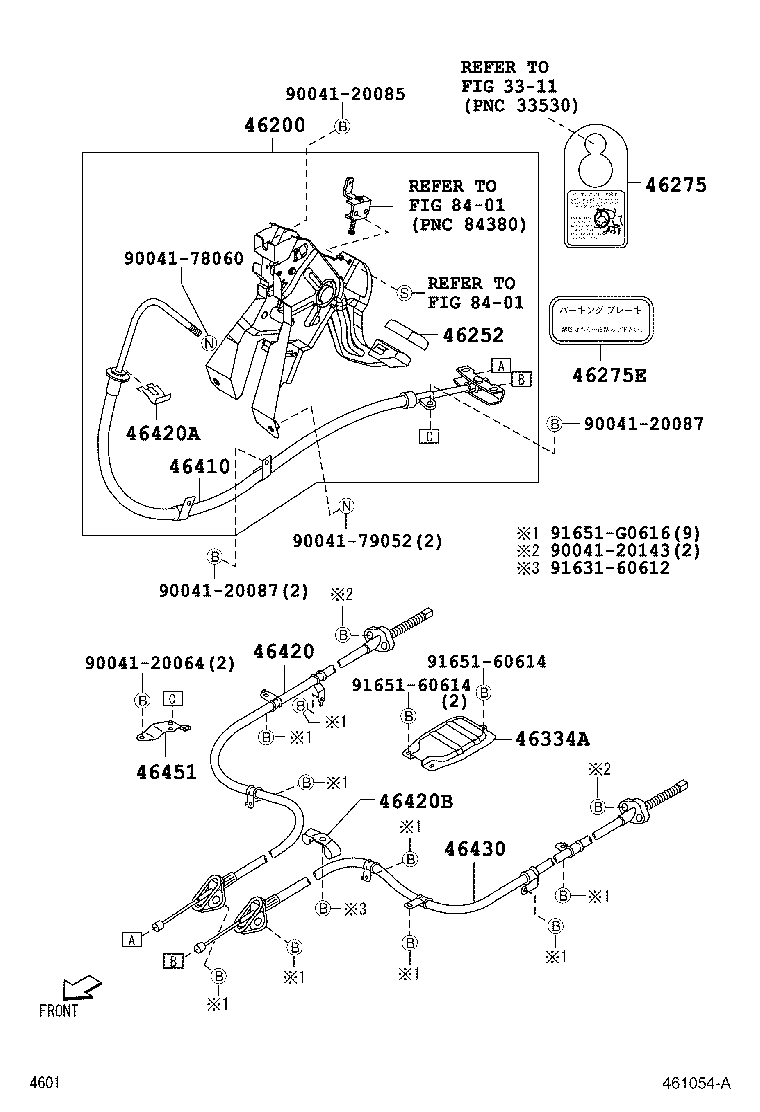

Toyota Passo KGC10 PARKING BRAKE & CABLE

Part #	Description	Period	Qty
46200 - PEDAL ASSY, PARKING BRAKE CONTROL
46200-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
46252 - PAD, PARKING PEDAL
46252-B2010	KGC1#,QNC10	05/2004 - 12/2006	1
46275 - PLATE, PARKING BRAKE RELEASE CAUTION
46275-97204	KGC1#,QNC10	05/2004 - 12/2006	1
46275E - LABEL, PARKING BRAKE RELEASE INFORMATION
46275-B1010	KGC1#,QNC10	09/2004 - 12/2006	1
46275-97201	KGC1#,QNC10	05/2004 - 08/2004	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-B1010	KGC10,QNC10	05/2004 - 12/2006	1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90044-65531	KGC1#,QNC10	02/2005 - 12/2006	1
90044-65529	KGC1#,QNC10	05/2004 - 01/2005	1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90044-61832	KGC1#,QNC10	05/2004 - 12/2006	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-B1010	KGC10,QNC10	05/2004 - 12/2006	1
46451 - BRACKET, CABLE SUPPORT
58253-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
Common parts
90041-20064
90041-20085
90041-20087
90041-20143
90041-78060
90041-79052
91631-60612
91651-60614
91651-G0616
Linked diagrams
3311
8401

KGC10-AHSAK (2004)
