KGC10-AHSAK (2004)

Toyota Passo

Production May 2004 - Dec 2006
Engine 1KRFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0405-1002)

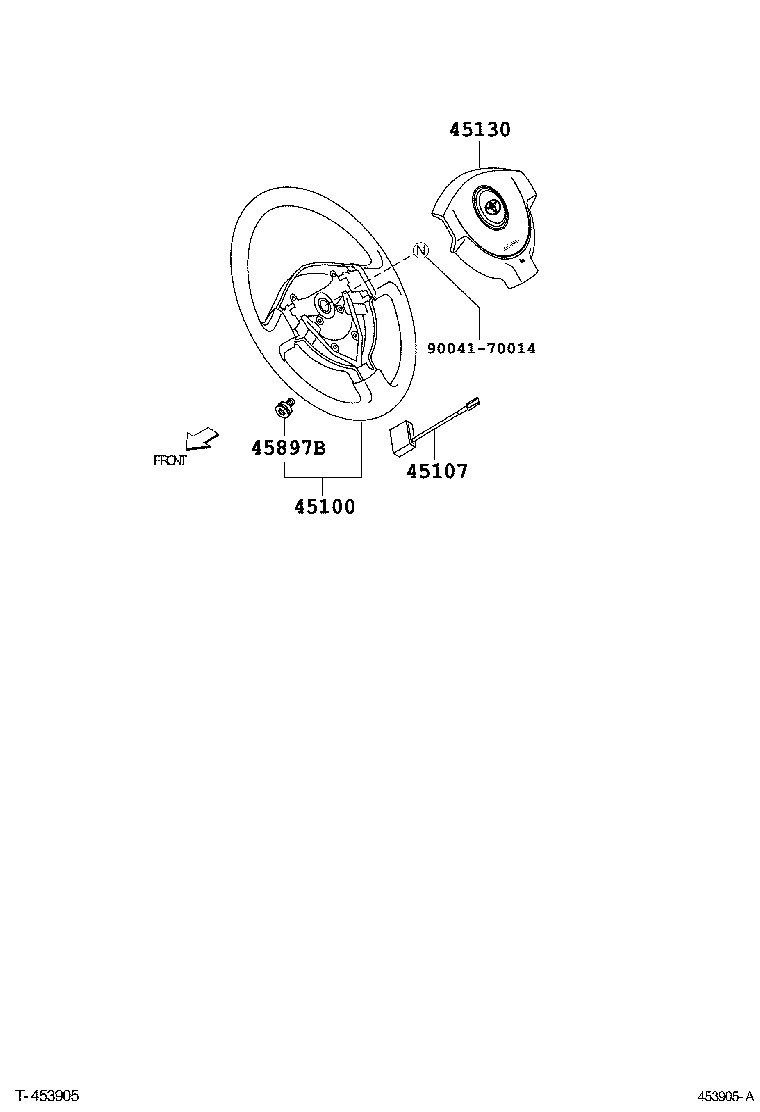

Click highlighted areas on diagram

diagram 45100 45107 45130 45897B 9004170014
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45102-B1020B0

KGC1#,QNC10..G,X

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-B2010

KGC1#,QNC10..G,X

 1
45130 - BUTTON ASSY, HORN
45130-B1020B0

KGC1#,QNC10..G,X

DK.GRAY,TRIM1#

 1
45897B - BOLT, STEERING LOCK SET
45897-97202

KGC1#,QNC10

 2
Common parts
90041-70014
