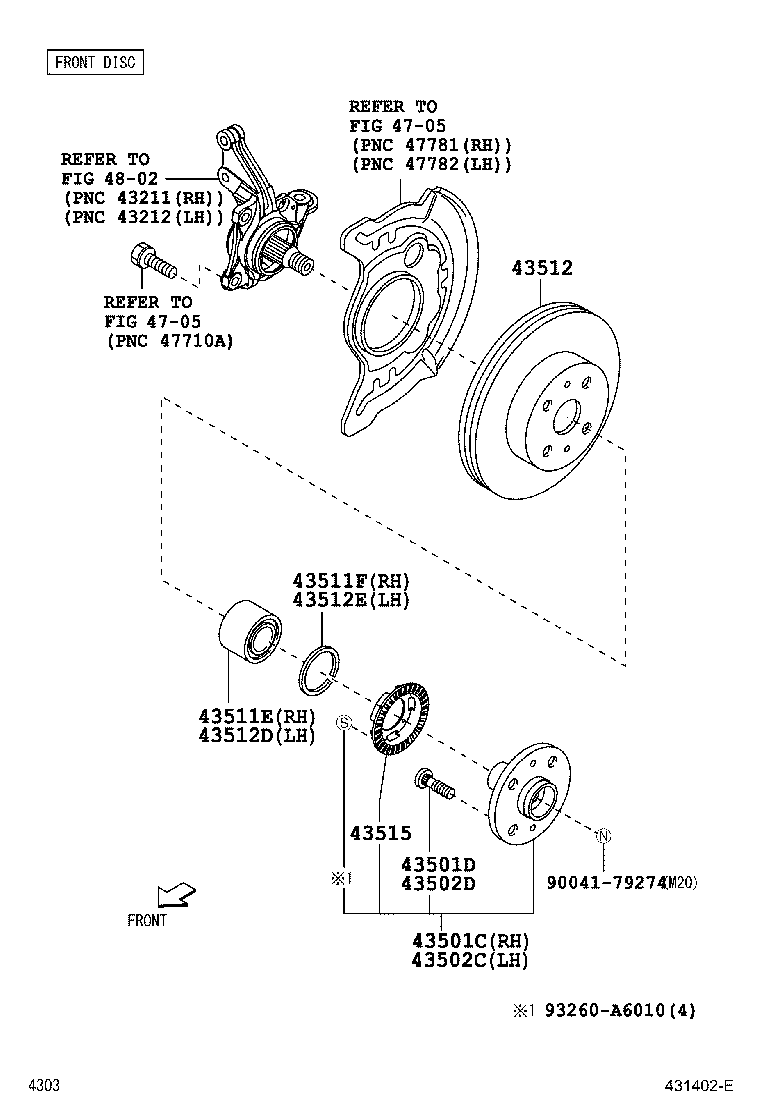

Toyota Passo KGC10 FRONT AXLE HUB

Part #	Description	Period	Qty
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43502-97202	KGC1#,QNC10	05/2004 - 12/2006	1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90049-12056	KGC1#,QNC10	05/2004 - 12/2006	4
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-97202	KGC1#,QNC10	05/2004 - 12/2006	1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90049-12056	KGC1#,QNC10	05/2004 - 12/2006	4
43511E - BEARING (FOR FRONT AXLE HUB RH)
90043-63253	KGC1#,QNC10	05/2004 - 12/2006	1
43511F - RING, HOLE SNAP (FOR FRONT AXLE HUB RH)
90045-21163	KGC1#,QNC10	05/2004 - 12/2006	1
43512 - DISC, FRONT
43512-B1050	KGC1#,QNC10..G,X 寒冷地仕様,13V	09/2005 - 12/2005	2
43512-B1050	KGC1#,QNC10..G,X 寒冷地仕様&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R14 5J−AL,13V	09/2005 - 12/2005	2
43512-B1040	KGC1#,QNC10..G,X 13V	09/2005 - 12/2006	2
43512-B1050	KGC1#,QNC10..G,X ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R14 5J−AL,13V	08/2004 - 12/2005	2
43512-97201	KGC1#,QNC10..G,X 13V	05/2004 - 09/2005	2
43512D - BEARING (FOR FRONT AXLE HUB LH)
90043-63253	KGC1#,QNC10	05/2004 - 12/2006	1
43512E - RING, HOLE SNAP (FOR FRONT AXLE HUB LH)
90045-21163	KGC1#,QNC10	05/2004 - 12/2006	1
43515 - ROTOR, SKID CONTROL, FRONT
89547-97201	KGC1#,QNC10	05/2004 - 12/2006	2
Common parts
90041-79274
93260-A6010
Linked diagrams
4705
4802

KGC10-AHSAK (2004)
