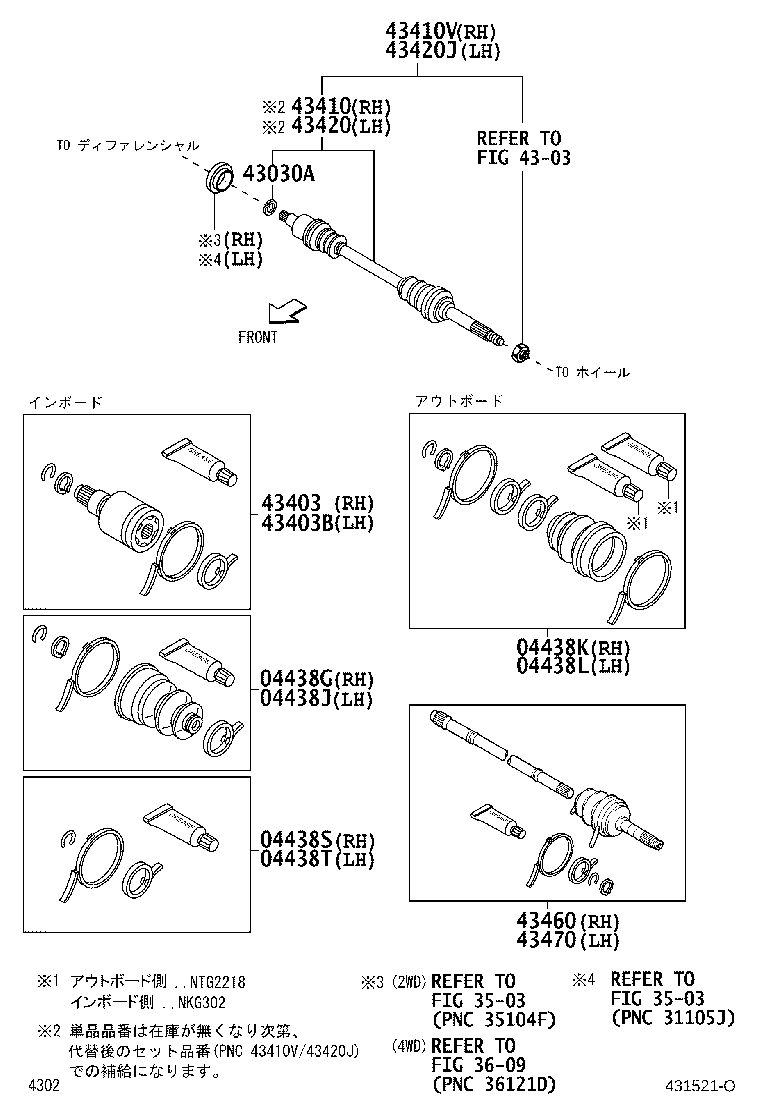

Toyota Passo KGC10 FRONT DRIVE SHAFT

Part #	Description	Period	Qty
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-B2020	KGC10 NTN	05/2004 - 12/2006	1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04437-B2020	KGC1# NTN	05/2004 - 12/2006	1
04438K - BOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, RH
04425-B2010	KGC1#	05/2004 - 10/2006	1
04425-B2110	KGC1# 右側	10/2006 - 12/2006	1
04438L - BOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, LH
04425-B2110	KGC1# 左側	05/2004 - 12/2006	1
04438S - CLAMP KIT, FRONT DRIVE SHAFT, RH
04435-B2020	KGC1# NTN	05/2004 - 12/2006	1
04438T - CLAMP KIT, FRONT DRIVE SHAFT, LH
04435-B2020	KGC1# NTN	05/2004 - 12/2006	1
43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)
90045-20298	KGC1#,QNC10	05/2004 - 12/2006	2
43403 - JOINT SET, FRONT AXLE INBOARD, RH
43408-B9350	KGC10 NTN	05/2006 - 12/2006	1
43408-B9090	KGC10	05/2004 - 05/2006	1
43403B - JOINT SET, FRONT AXLE INBOARD, LH
43408-B9090	KGC1#	05/2004 - 05/2006	1
43408-B9350	KGC1# NTN	05/2006 - 12/2006	1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-B1010	KGC10	05/2004 - 12/2006	1
43410V - SHAFT SET, FRONT DRIVE, RH
43410-B9580	KGC10	05/2004 - 12/2006	1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-B1010	KGC1#	05/2004 - 12/2006	1
43420J - SHAFT SET, FRONT DRIVE, LH
43420-B9520	KGC1#	05/2004 - 12/2006	1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43411-B9170	KGC10	05/2004 - 12/2006	1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43412-B9070	KGC1#	05/2004 - 12/2006	1
Linked diagrams
3503
3609
4303

KGC10-AHSAK (2004)
