Toyota Passo KGC10 DISC WHEEL & WHEEL CAP

Manufacturers Home
Toyota
JP
PASSO
KGC10-AHSAK (2004)
4103 - DISC WHEEL & WHEEL CAP

KGC10-AHSAK (2004)

Toyota Passo

Production May 2004 - Dec 2006

Engine 1KRFE

Transmission 4HC ATM

Displacement 2500cc

Power 168 HP (125 kW)

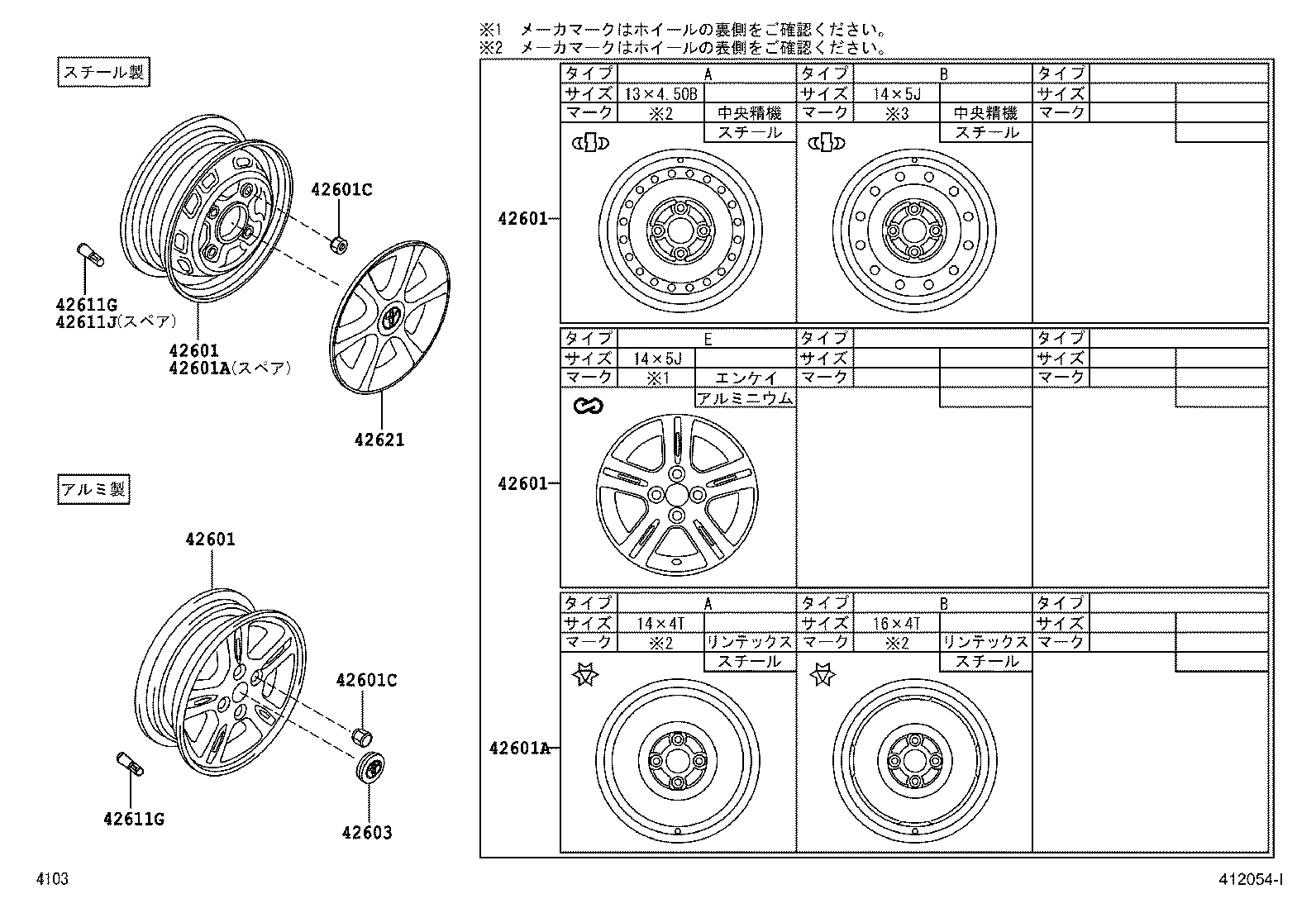

ILLUST NO. 1 OF 3(0405-1002)

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-B1010	KGC1#,QNC10..G,X 13X4.50B,ｽﾁｰﾙ,ﾌﾞﾗｯｸ,TYPE A CHUO SEIKI	05/2004 - 12/2005	4
42611-B1020	KGC10 13X4.50B,ｽﾁｰﾙ,ｼﾙﾊﾞｰ,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ,TYPE ACHUO SEIKI	05/2004 - 12/2005	4
42611-B1030	KGC1#,QNC10..G,X 14X5J ｵﾌｾｯﾄ 40,ｱﾙﾐ,ｼ,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/6TR14 5J−AL,TYPE E ENKEI	09/2004 - 12/2006	4
42611-B1011	KGC1#,QNC10..G,X 13X4.50B,ｽﾁｰﾙ,ﾌﾞﾗｯｸ,TYPE A CHUO SEIKI	01/2006 - 12/2006	4
42611-B1021	KGC10 13X4.50B,ｽﾁｰﾙ,ｼﾙﾊﾞｰ,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ,TYPE ACHUO SEIKI	01/2006 - 12/2006	4
42601 - WHEEL, DISC
42611-B1010	KGC1#,QNC10..G,X 13X4.50B,ｽﾁｰﾙ,ﾌﾞﾗｯｸ,TYPE A CHUO SEIKI	05/2004 - 12/2005	4
42611-B1020	KGC10 13X4.50B,ｽﾁｰﾙ,ｼﾙﾊﾞｰ,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ,TYPE ACHUO SEIKI	05/2004 - 12/2005	4
42611-B1030	KGC1#,QNC10..G,X 14X5J ｵﾌｾｯﾄ 40,ｱﾙﾐ,ｼ,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/6TR14 5J−AL,TYPE E ENKEI	09/2004 - 12/2006	4
42611-B1011	KGC1#,QNC10..G,X 13X4.50B,ｽﾁｰﾙ,ﾌﾞﾗｯｸ,TYPE A CHUO SEIKI	01/2006 - 12/2006	4
42611-B1021	KGC10 13X4.50B,ｽﾁｰﾙ,ｼﾙﾊﾞｰ,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ,TYPE ACHUO SEIKI	01/2006 - 12/2006	4
42601 - WHEEL, DISC
42611-B1010	KGC1#,QNC10..G,X 13X4.50B,ｽﾁｰﾙ,ﾌﾞﾗｯｸ,TYPE A CHUO SEIKI	05/2004 - 12/2005	4
42611-B1020	KGC10 13X4.50B,ｽﾁｰﾙ,ｼﾙﾊﾞｰ,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ,TYPE ACHUO SEIKI	05/2004 - 12/2005	4
42611-B1030	KGC1#,QNC10..G,X 14X5J ｵﾌｾｯﾄ 40,ｱﾙﾐ,ｼ,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/6TR14 5J−AL,TYPE E ENKEI	09/2004 - 12/2006	4
42611-B1011	KGC1#,QNC10..G,X 13X4.50B,ｽﾁｰﾙ,ﾌﾞﾗｯｸ,TYPE A CHUO SEIKI	01/2006 - 12/2006	4
42611-B1021	KGC10 13X4.50B,ｽﾁｰﾙ,ｼﾙﾊﾞｰ,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ,TYPE ACHUO SEIKI	01/2006 - 12/2006	4
42601 - WHEEL, DISC
42611-B1010	KGC1#,QNC10..G,X 13X4.50B,ｽﾁｰﾙ,ﾌﾞﾗｯｸ,TYPE A CHUO SEIKI	05/2004 - 12/2005	4
42611-B1020	KGC10 13X4.50B,ｽﾁｰﾙ,ｼﾙﾊﾞｰ,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ,TYPE ACHUO SEIKI	05/2004 - 12/2005	4
42611-B1030	KGC1#,QNC10..G,X 14X5J ｵﾌｾｯﾄ 40,ｱﾙﾐ,ｼ,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/6TR14 5J−AL,TYPE E ENKEI	09/2004 - 12/2006	4
42611-B1011	KGC1#,QNC10..G,X 13X4.50B,ｽﾁｰﾙ,ﾌﾞﾗｯｸ,TYPE A CHUO SEIKI	01/2006 - 12/2006	4
42611-B1021	KGC10 13X4.50B,ｽﾁｰﾙ,ｼﾙﾊﾞｰ,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ,TYPE ACHUO SEIKI	01/2006 - 12/2006	4
42601A - WHEEL, DISC (FOR SPARE)
42611-B1040	KGC10,QNC10 14X4T,ｽﾁｰﾙ,ﾌﾞﾗｯｸ,TYPE A RINGTECHS	05/2004 - 12/2006	1
42601A - WHEEL, DISC (FOR SPARE)
42611-B1040	KGC10,QNC10 14X4T,ｽﾁｰﾙ,ﾌﾞﾗｯｸ,TYPE A RINGTECHS	05/2004 - 12/2006	1
42601C - NUT, HUB (FOR AXLE)
90049-11055	KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ,ﾀｲﾌﾟ C	05/2004 - 04/2005	16
90049-11036	KGC1#,QNC10..G,X ﾀｲﾌﾟ B	05/2004 - 12/2006	16
90049-11073	KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ,ﾀｲﾌﾟ C	05/2005 - 12/2006	16
90049-11047	KGC1#,QNC10..G,X ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R14 5J−AL,ﾀｲﾌﾟ A	09/2004 - 12/2006	16
42601C - NUT, HUB (FOR AXLE)
90049-11055	KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ,ﾀｲﾌﾟ C	05/2004 - 04/2005	16
90049-11036	KGC1#,QNC10..G,X ﾀｲﾌﾟ B	05/2004 - 12/2006	16
90049-11073	KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ,ﾀｲﾌﾟ C	05/2005 - 12/2006	16
90049-11047	KGC1#,QNC10..G,X ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R14 5J−AL,ﾀｲﾌﾟ A	09/2004 - 12/2006	16
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42638-B1030	KGC10 *STE,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ,ﾀｲﾌﾟ A	05/2004 - 01/2006	4
42638-97205	KGC1#,QNC10..G,X *ALU,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R14 5J−AL,ﾀｲﾌﾟ B	09/2004 - 12/2006	4
42638-B1060	KGC10 *STE,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ,ﾀｲﾌﾟ C	01/2006 - 12/2006	4
42611G - VALVE (FOR TUBELESS TIRE)
90049-02019	KGC1#,QNC10	05/2004 - 12/2006	4
42611G - VALVE (FOR TUBELESS TIRE)
90049-02019	KGC1#,QNC10	05/2004 - 12/2006	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90049-02019	KGC1#,QNC10	05/2004 - 12/2006	1
42621 - CAP, WHEEL
42602-B1020	KGC1#,QNC10..G,X ﾀｲﾌﾟ A	05/2004 - 12/2006	4

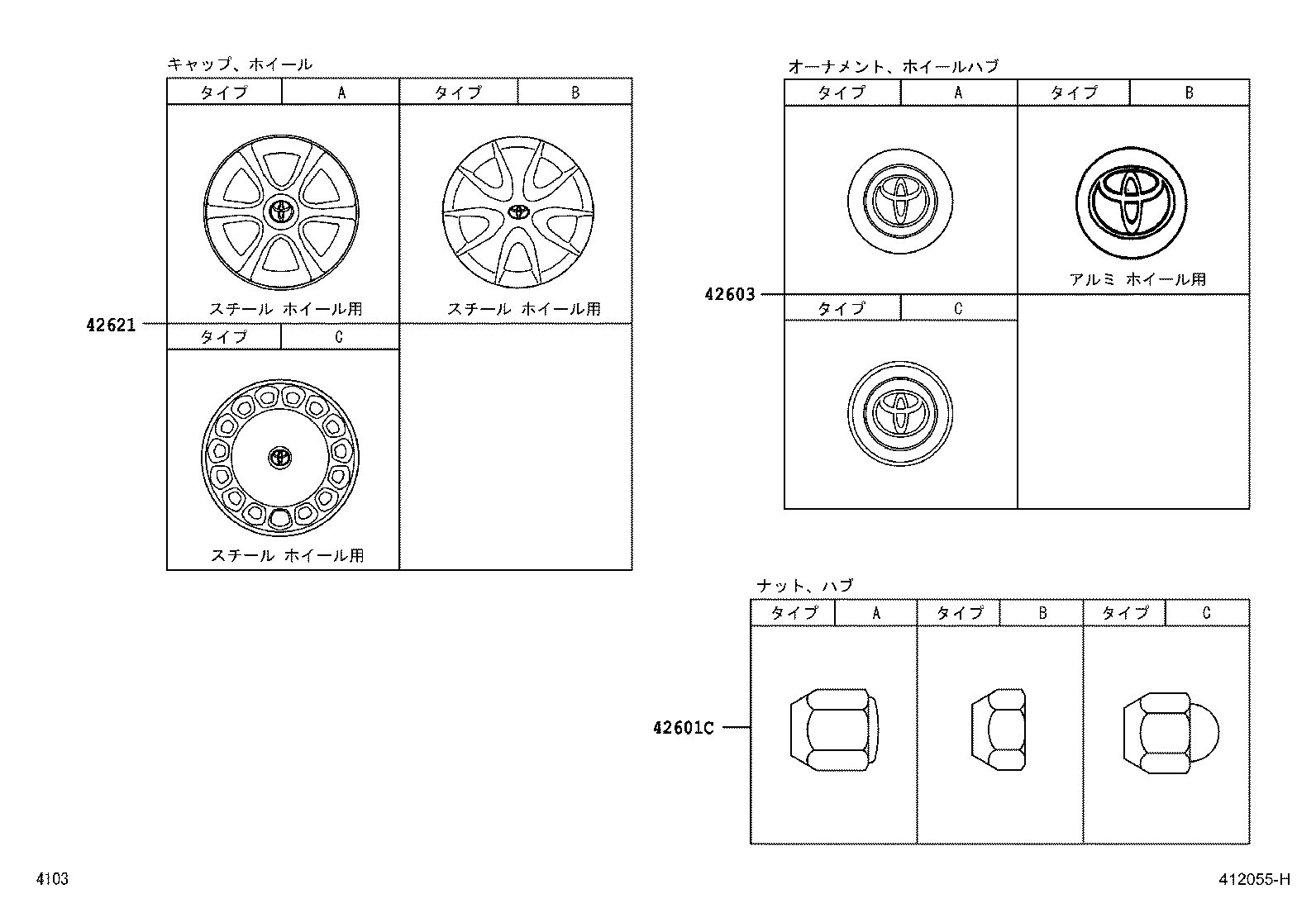

ILLUST NO. 2 OF 3(0405-1002)

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601C - NUT, HUB (FOR AXLE)
90049-11055	KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ,ﾀｲﾌﾟ C	05/2004 - 04/2005	16
90049-11036	KGC1#,QNC10..G,X ﾀｲﾌﾟ B	05/2004 - 12/2006	16
90049-11073	KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ,ﾀｲﾌﾟ C	05/2005 - 12/2006	16
90049-11047	KGC1#,QNC10..G,X ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R14 5J−AL,ﾀｲﾌﾟ A	09/2004 - 12/2006	16
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42638-B1030	KGC10 *STE,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ,ﾀｲﾌﾟ A	05/2004 - 01/2006	4
42638-97205	KGC1#,QNC10..G,X *ALU,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R14 5J−AL,ﾀｲﾌﾟ B	09/2004 - 12/2006	4
42638-B1060	KGC10 *STE,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ,ﾀｲﾌﾟ C	01/2006 - 12/2006	4
42621 - CAP, WHEEL
42602-B1020	KGC1#,QNC10..G,X ﾀｲﾌﾟ A	05/2004 - 12/2006	4

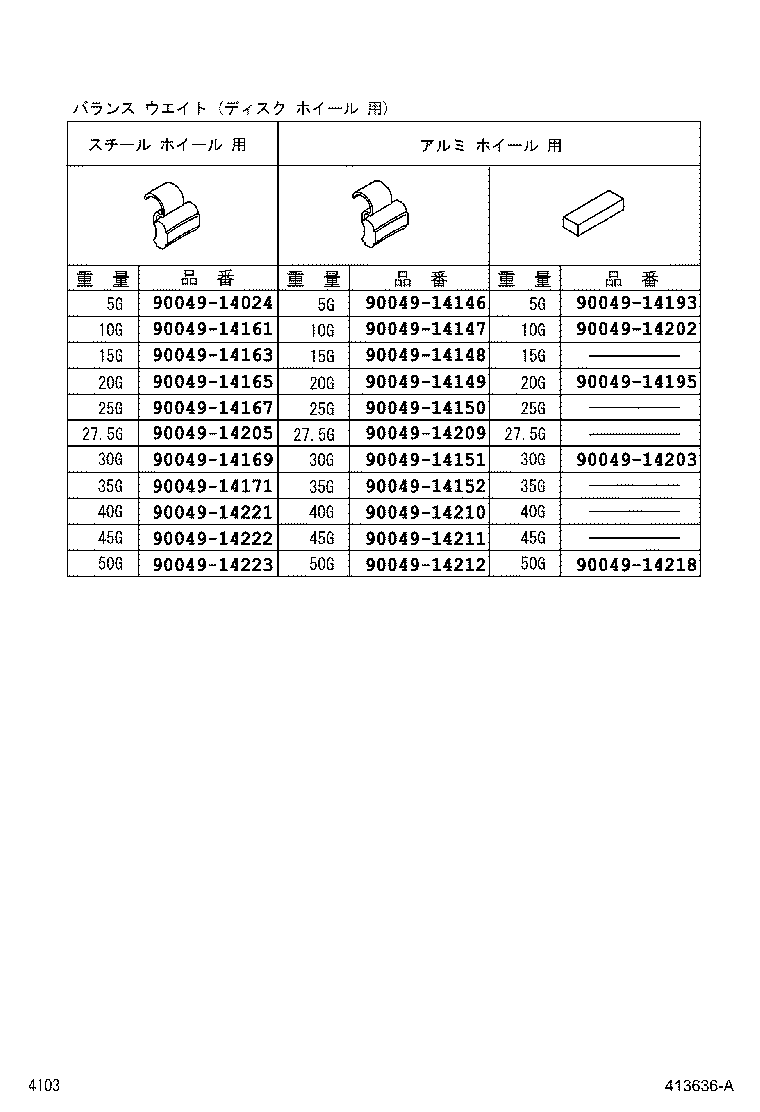

ILLUST NO. 3 OF 3(0405-1002)

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90049-14024
90049-14146
90049-14147
90049-14148
90049-14149
90049-14150
90049-14151
90049-14152
90049-14161
90049-14163
90049-14165
90049-14167
90049-14169
90049-14171
90049-14193
90049-14195
90049-14202
90049-14203
90049-14205
90049-14209
90049-14210
90049-14211
90049-14212
90049-14218
90049-14221
90049-14222
90049-14223

KGC10-AHSAK (2004)

ILLUST NO. 1 OF 3(0405-1002)

ILLUST NO. 2 OF 3(0405-1002)

ILLUST NO. 3 OF 3(0405-1002)
