KGC10-AHSAK (2004)

Toyota Passo

Production May 2004 - Dec 2006
Engine 1KRFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0405-1002)KGC10,QNC10

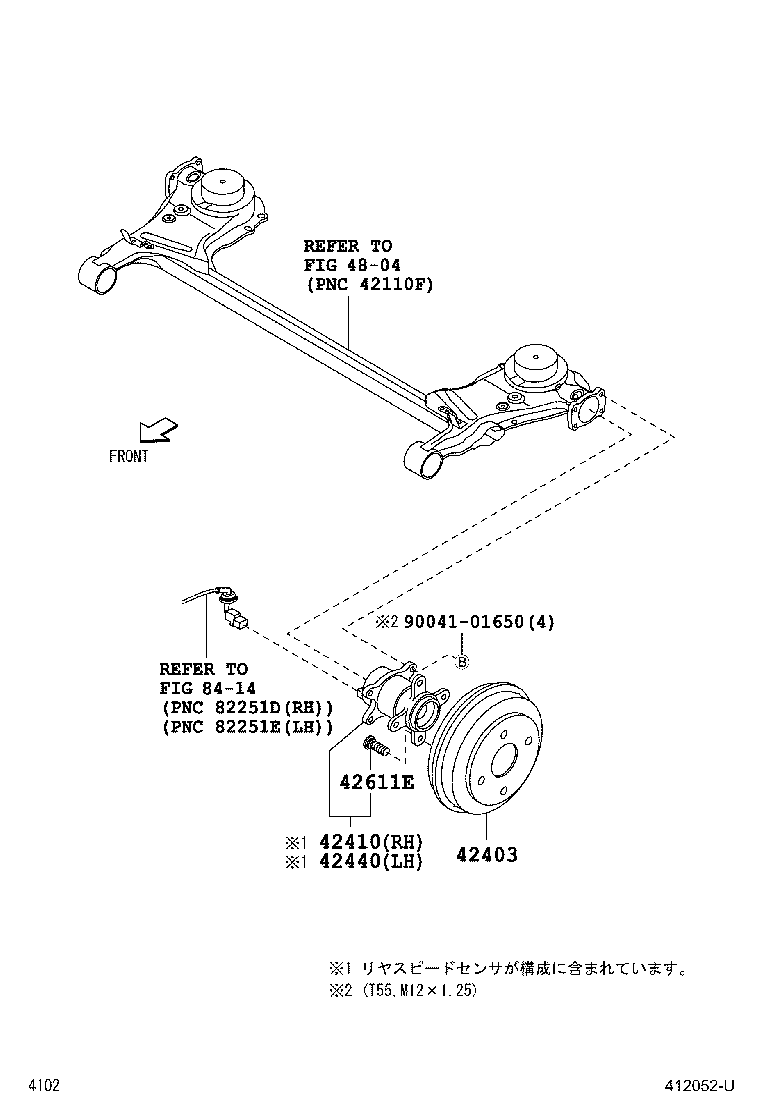

Click highlighted areas on diagram

diagram 42403 42410 42440 42611E 4804 8414 9004101650
Part # Description Qty Price
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-B1010

KGC10,QNC10

 2
42431-B1011

KGC10,QNC10

 2
42410 - HUB & BEARING ASSY, REAR AXLE, RH
42410-B1010

KGC10,QNC10

 1
42440 - HUB & BEARING ASSY, REAR AXLE, LH
42410-B1010

KGC10,QNC10

 1
42611E - BOLT, HUB (FOR REAR AXLE)
90049-12062

KGC10,QNC10

 8
Common parts
90041-01650
Linked diagrams
4804
8414
