KGC10-AHSAK (2004)
Toyota Passo
Production
May 2004
-
Dec 2006
Engine
1KRFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0405-1002)

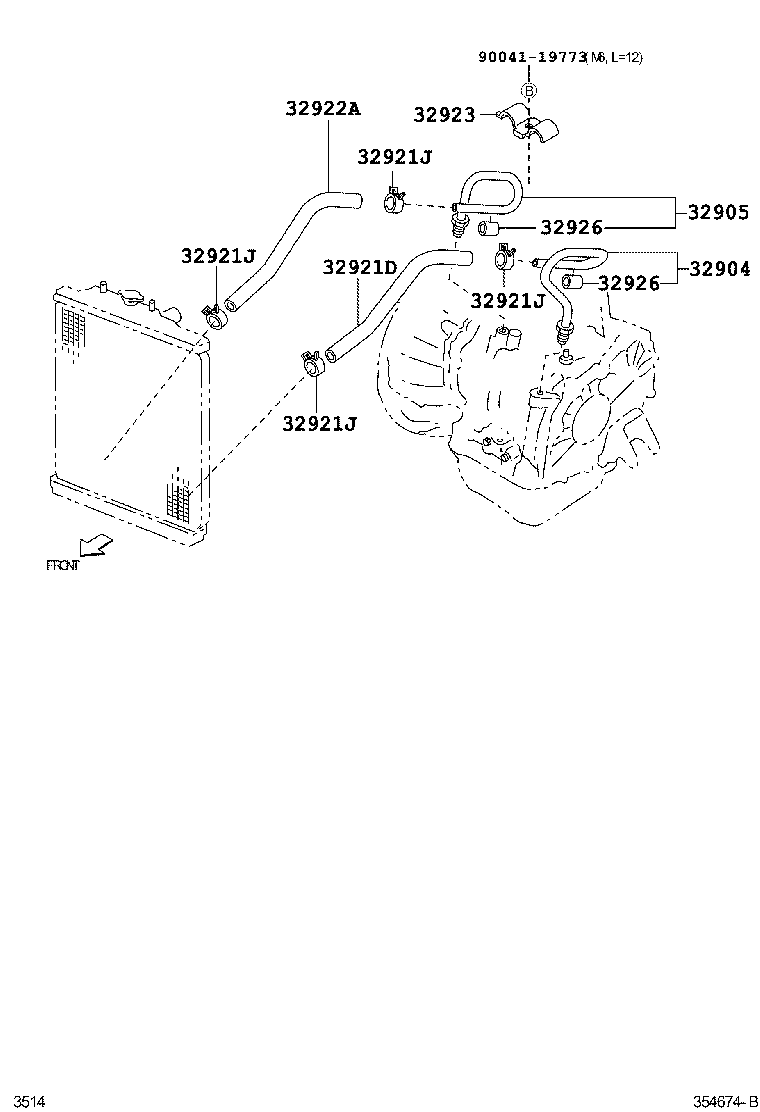

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32904 - TUBE SUB-ASSY, OIL COOLER INLET, NO.1 | ||||
| 32904-B1011 |
KGC1#,QNC10 |
1 | ||
| 32904-B1010 |
KGC1#,QNC10 |
1 | ||
| 32905 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1 | ||||
| 32905-B1020 |
KGC1#,QNC10 |
1 | ||
| 32905-B1010 |
KGC1#,QNC10 |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-B1010 |
KGC1#,QNC10 |
1 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90044-67234 |
KGC1#,QNC10 |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90044-67234 |
KGC1#,QNC10 |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90044-67234 |
KGC1#,QNC10 |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90044-67234 |
KGC1#,QNC10 |
4 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32942-B1010 |
KGC1#,QNC10 |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-97201 |
KGC1#,QNC10 |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-B1010 |
KGC1#,QNC10 長さ=30,内径=8 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-B1010 |
KGC1#,QNC10 長さ=30,内径=8 |
2 | ||
| Common parts | ||||
| 90041-19773 | ||||
