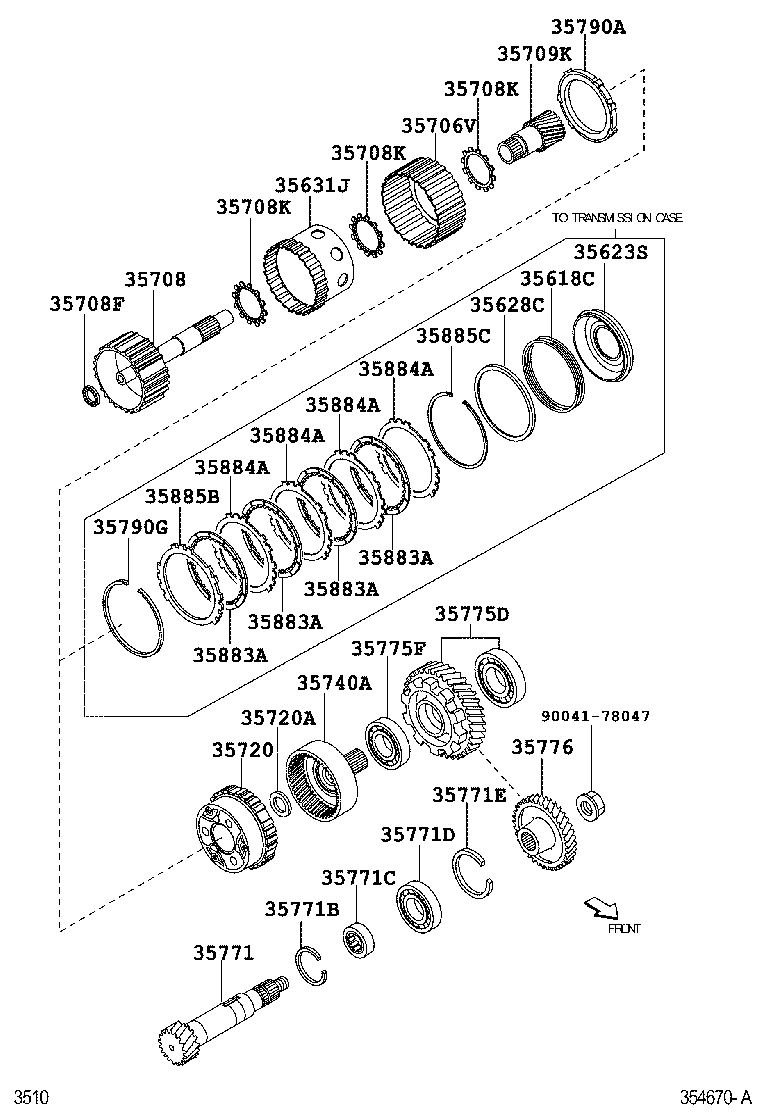

Toyota Passo KGC10 PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

Part #	Description	Period	Qty
35618C - RETURN SPRING SUB-ASSY, 1ST & REVERSE
35618-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
35623S - PISTON,1ST & REVERSE BRAKE
35623-97203	KGC1#,QNC10	05/2004 - 12/2006	1
35628C - SEAT, 1ST & REVERSE BRAKE PISTON RETURN SPRING
35628-97202	KGC1#,QNC10	05/2004 - 12/2006	1
35631J - HUB, FORWARD CLUTCH, NO.1
35631-97203	KGC1#,QNC10	05/2004 - 12/2006	1
35706V - GEAR SUB ASSY, PLANETARY SUN
35706-97203	KGC1#,QNC10	05/2004 - 12/2006	1
35708 - SHAFT SUB-ASSY, INTERMEDIATE
35708-97203	KGC1#,QNC10	05/2004 - 12/2006	1
35708F - BEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT)
90043-74051	KGC1#,QNC10	05/2004 - 12/2006	1
35708K - BEARING, NEEDLE ROLLER(FOR INTERMEDIATE SHAFT)
90043-74047	KGC1#,QNC10	05/2004 - 12/2006	3
35708K - BEARING, NEEDLE ROLLER(FOR INTERMEDIATE SHAFT)
90043-74047	KGC1#,QNC10	05/2004 - 12/2006	3
35708K - BEARING, NEEDLE ROLLER(FOR INTERMEDIATE SHAFT)
90043-74047	KGC1#,QNC10	05/2004 - 12/2006	3
35709K - GEAR SUB-ASSY, REAR PLANETARY
35709-97204	KGC1#,QNC10	05/2004 - 12/2006	1
35720 - GEAR ASSY, FRONT PLANETARY
35720-97211	KGC1#,QNC10	05/2004 - 12/2006	1
35720A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR
90043-74043	KGC1#,QNC10	05/2004 - 12/2006	1
35740A - GEAR ASSY,FRONT PLANETARY RING
35740-97201	KGC1#,QNC10	05/2004 - 12/2006	1
35771 - SHAFT, OUTPUT
35771-B1010	KGC10,QNC10	05/2004 - 12/2006	1
35771B - RING, HOLE SNAP (FOR OUTPUT SHAFT, NO.1)
90045-21182	KGC1#,QNC10	05/2004 - 12/2006	1
35771C - ROLLER BEARING, OUTPUT SHAFT
90043-65026	KGC1#,QNC10	05/2004 - 12/2006	1
35771D - BALL BEARING, OUTPUT SHAFT
90043-63274	KGC1#,QNC10	05/2004 - 12/2006	1
35771E - RING, HOLE SNAP (FOR OUTPUT SHAFT, NO.2)
90045-21183	KGC1#,QNC10	05/2004 - 12/2006	1
35775D - GEAR KIT, RIDUCTION DRIVE
35775-B9010	KGC1#	05/2004 - 12/2006	1
35775F - BEARING, RADIAL BOLL
90043-63273	KGC1#,QNC10	05/2004 - 12/2006	1
35776 - GEAR, PRIMARY REDUCTION DRIVEN
35776-97202	KGC1#	05/2004 - 12/2006	1
35790A - CLUTCH ASSY, 1 WAY
35790-B1010	KGC1#	05/2004 - 12/2006	1
35790G - HOLE SNAP RING (FOR 1WAY CLUTCH)
90045-21174	KGC1#,QNC10	05/2004 - 12/2006	1
35883A - DISC, BRAKE
35883-97204	KGC1#,QNC10	05/2004 - 12/2006	4
35883A - DISC, BRAKE
35883-97204	KGC1#,QNC10	05/2004 - 12/2006	4
35883A - DISC, BRAKE
35883-97204	KGC1#,QNC10	05/2004 - 12/2006	4
35883A - DISC, BRAKE
35883-97204	KGC1#,QNC10	05/2004 - 12/2006	4
35884A - PLATE,BRAKE
35884-97204	KGC1#,QNC10	05/2004 - 12/2006	4
35884A - PLATE,BRAKE
35884-97204	KGC1#,QNC10	05/2004 - 12/2006	4
35884A - PLATE,BRAKE
35884-97204	KGC1#,QNC10	05/2004 - 12/2006	4
35884A - PLATE,BRAKE
35884-97204	KGC1#,QNC10	05/2004 - 12/2006	4
35885B - FLANGE, BRAKE
35885-97213	KGC1# 厚さ=4.0	05/2004 - 12/2006	1
35885-97214	KGC1#,QNC10 厚さ=4.2	05/2004 - 12/2006	1
35885-97218	KGC1#,QNC10 厚さ=5.0	05/2004 - 12/2006	1
35885-97217	KGC1#,QNC10 厚さ=4.8	05/2004 - 12/2006	1
35885-97216	KGC1#,QNC10 厚さ=4.6	05/2004 - 12/2006	1
35885-97215	KGC1#,QNC10 厚さ=4.4	05/2004 - 12/2006	1
35885C - RING,HOLE SNAP (FOR CLUTCH PLATE)
90045-21175	KGC1#,QNC10	05/2004 - 12/2006	1
Common parts
90041-78047

KGC10-AHSAK (2004)

ILLUST NO. 1 OF 2(0405-1002)

ILLUST NO. 2 OF 2(0405-1002)

Part Price Details

Part #	Description	Period	Qty

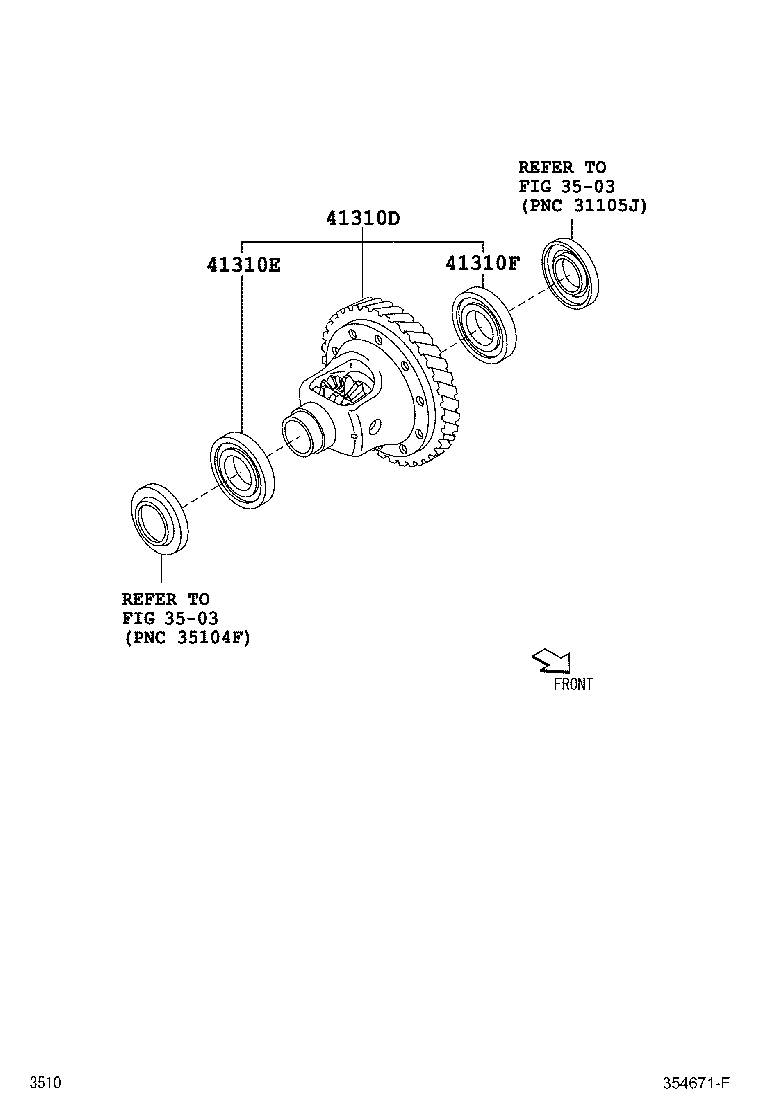

41310D - CASE ASSY, DIFFERENTIAL
41310-B1010	KGC10	05/2004 - 12/2006	1
41310E - BALL BEARING(FOR DIFFERENTIAL CASE FRONT)
90043-63297	KGC10	05/2004 - 12/2006	1
41310F - BALL BEARING(FOR DIFFERENTIAL CASE REAR)
97103-06209	KGC1#	05/2004 - 10/2004	1
90043-63304	KGC1#	10/2004 - 12/2006	1
