KGC10-AHSAK (2004)
Toyota Passo
Production
May 2004
-
Dec 2006
Engine
1KRFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0405-1002)

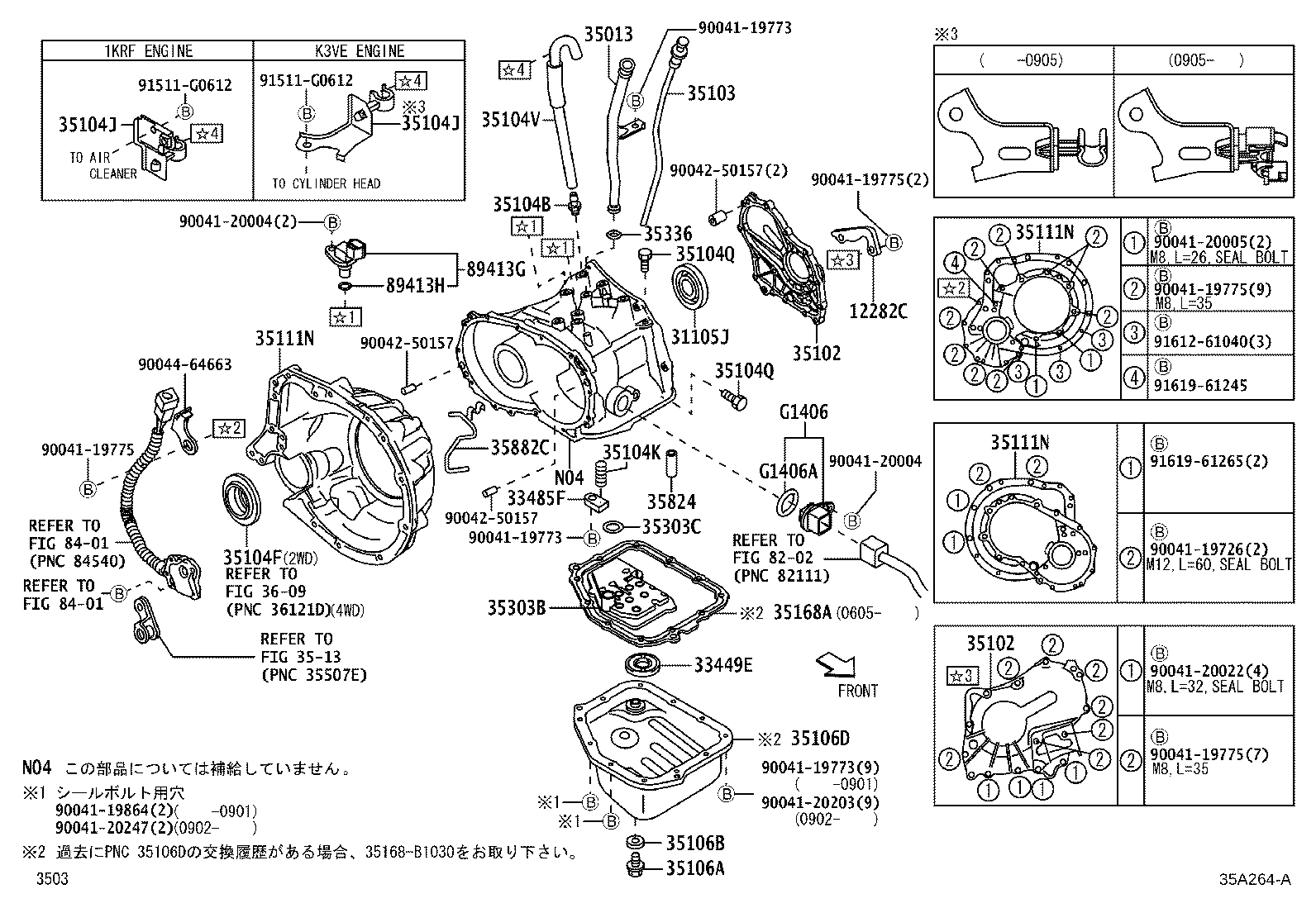

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12282C - HANGER, ENGINE, NO.2 | ||||
| 12282-97206 |
K3VE,1KRFE..KGC1#,QNC10 |
1 | ||
| 31105J - SEAL, OIL, NO.2(FOR TRANSAXLE CASE) | ||||
| 90043-11316 |
KGC1#,QNC10 |
1 | ||
| 33449E - MAGNET, TRANSAXLE | ||||
| 33449-87502 |
KGC1#,QNC10 |
1 | ||
| 33485F - PLATE, SPEEDMETER LOCK | ||||
| 33485-87201 |
KGC1#,QNC10 |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-97207 |
KGC1#,QNC10 |
1 | ||
| 35102 - COVER SUB-ASSY, TRANSAXLE REAR | ||||
| 35181-97202 |
KGC1#,QNC10 |
1 | ||
| 35102 - COVER SUB-ASSY, TRANSAXLE REAR | ||||
| 35181-97202 |
KGC1#,QNC10 |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-97203 |
KGC1#,QNC10 |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90049-15053 |
KGC1#,QNC10 |
1 | ||
| 35104F - SEAL, OIL (FOR TRANSAXLE CASE) | ||||
| 90043-11317 |
KGC10,QNC10 |
1 | ||
| 35104J - BRACKET, BREATHER PLUG HOSE | ||||
| 58107-B1010 |
KGC1# |
1 | ||
| 35104J - BRACKET, BREATHER PLUG HOSE | ||||
| 58107-B1010 |
KGC1# |
1 | ||
| 35104K - COMPRESSION SPRING, TRANSAXLE CASE | ||||
| 90045-01801 |
KGC1#,QNC10 |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90043-45040 |
KGC1#,QNC10 |
7 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90043-45040 |
KGC1#,QNC10 |
7 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90044-44086 |
KGC1# |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90043-41041 |
KGC1#,QNC10 |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 90044-30281 |
KGC1#,QNC10 |
1 | ||
| 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL | ||||
| 35106-B1010 |
KGC1#,QNC10 |
1 | ||
| 35111N - TRANSAXLE HOUSING (ATM) | ||||
| 35111-97203 |
KGC1#,QNC10 |
1 | ||
| 35111N - TRANSAXLE HOUSING (ATM) | ||||
| 35111-97203 |
KGC1#,QNC10 |
1 | ||
| 35111N - TRANSAXLE HOUSING (ATM) | ||||
| 35111-97203 |
KGC1#,QNC10 |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-B1010 |
KGC1#,QNC10 |
1 | ||
| 35303B - STRAINER SUB-ASSY,OIL | ||||
| 35303-97201 |
KGC1#,QNC10 |
1 | ||
| 35303C - RING,O(FOR OIL STRAINER) | ||||
| 96721-24021 |
KGC1#,QNC10 |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90043-01160 |
KGC1#,QNC10 |
1 | ||
| 35824 - SEAL, BRAKE CYLINDER | ||||
| 35824-97201 |
KGC1#,QNC10 |
1 | ||
| 35882C - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-97201 |
KGC1#,QNC10 |
1 | ||
| 89413G - SENSOR, TRANSMISSION REVOLUTION | ||||
| 89413-97201 |
KGC1#,QNC10 |
2 | ||
| 89413-97202 |
KGC1#,QNC10 |
2 | ||
| 89413H - RING, O(FOR TRANSMISSION REVOLUTION SENSOR) | ||||
| 90043-01278 |
KGC1#,QNC10 |
2 | ||
| G1406 - CONNECTOR SUB-ASSY, TRANS SOLENOID | ||||
| G1406-97201 |
KGC1#,QNC10 |
1 | ||
| G1406A - RING, O(FOR TRANS SOLENOID CONNECTOR) | ||||
| 90043-01281 |
KGC1#,QNC10 |
1 | ||
| Common parts | ||||
| 90041-19726 | ||||
| 90041-19773 | ||||
| 90041-19775 | ||||
| 90041-19864 | ||||
| 90041-20004 | ||||
| 90041-20005 | ||||
| 90041-20022 | ||||
| 90041-20203 | ||||
| 90041-20247 | ||||
| 90042-50157 | ||||
| 90044-64663 | ||||
| 91511-G0612 | ||||
| 91612-61040 | ||||
| 91619-61245 | ||||
| 91619-61265 | ||||
| Linked diagrams | ||||
| 3513 | ||||
| 3609 | ||||
| 8202 | ||||
| 8401 | ||||
