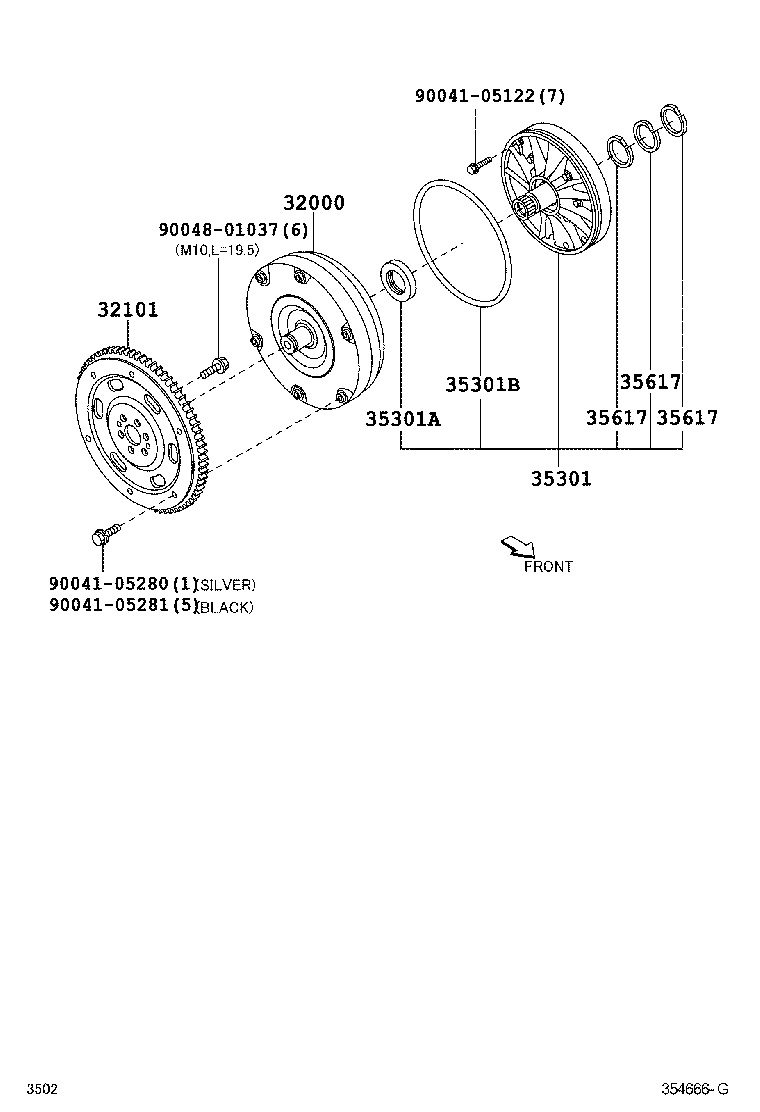

Toyota Passo KGC10 TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

Part #	Description	Period	Qty
32000 - CONVERTER ASSY, TORQUE
32000-97204	KGC1#,QNC10	05/2004 - 12/2006	1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-B1020	KGC1#	09/2006 - 12/2006	1
32101-97401	KGC1#	05/2004 - 09/2006	1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35310-97203	KGC1#,QNC10	05/2004 - 12/2006	1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90043-11336	KGC1#,QNC10	05/2004 - 12/2006	1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90043-01161	KGC1#,QNC10	05/2004 - 12/2006	1
35617 - RING, CLUTCH DRUM OIL SEAL
35653-97201	KGC1#,QNC10	05/2004 - 12/2006	3
35617 - RING, CLUTCH DRUM OIL SEAL
35653-97201	KGC1#,QNC10	05/2004 - 12/2006	3
35617 - RING, CLUTCH DRUM OIL SEAL
35653-97201	KGC1#,QNC10	05/2004 - 12/2006	3
Common parts
90041-05122
90041-05280
90041-05281
90048-01037

KGC10-AHSAK (2004)
