KGC10-AHSAK (2004)

Toyota Passo

Production May 2004 - Dec 2006
Engine 1KRFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0405-1002)

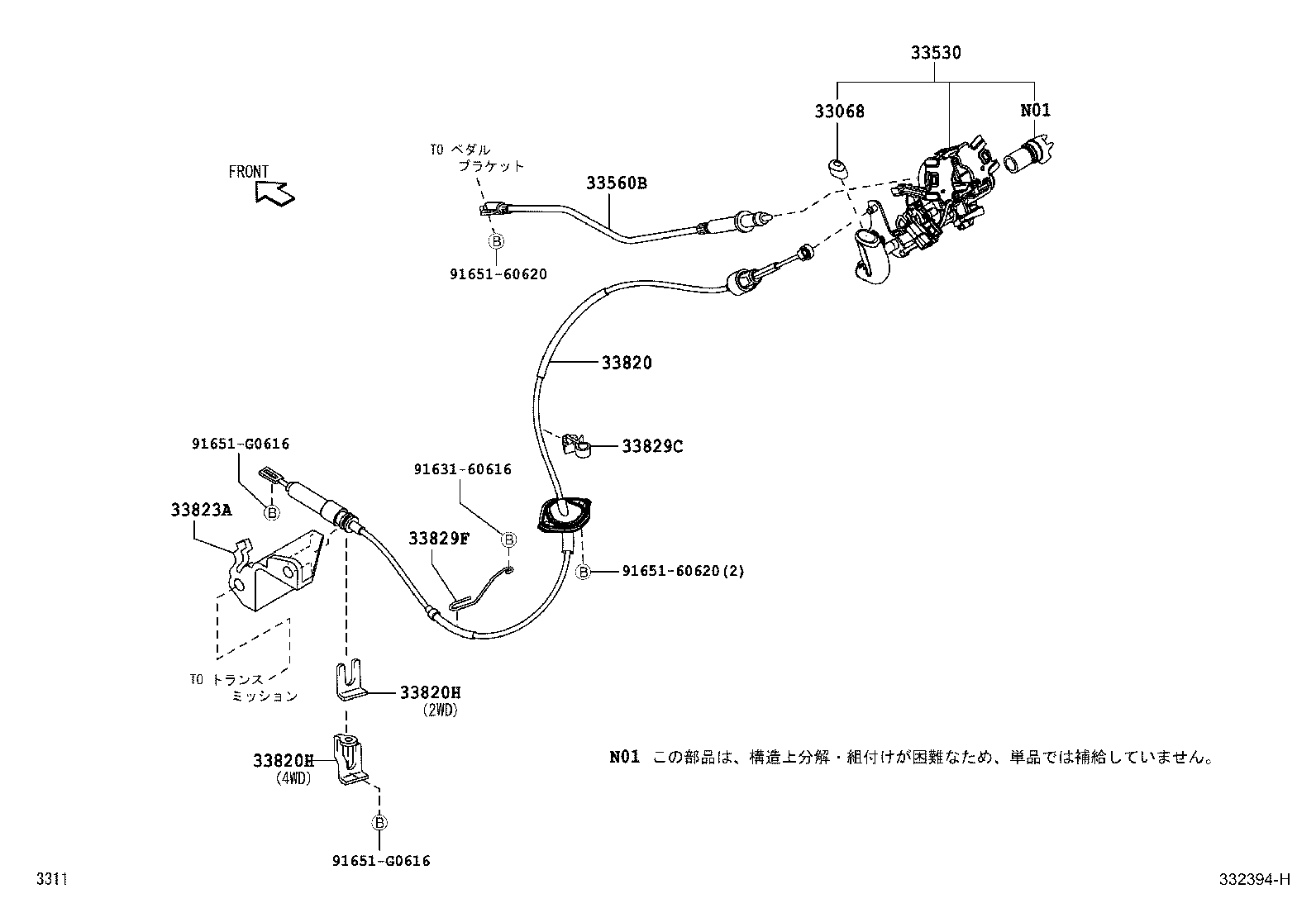

Click highlighted areas on diagram

diagram 33068 33530 33560B 33820 33820H 33820H 33823A 33829C 33829F 9163160616 9165160620 9165160620 91651G0616 91651G0616
Part # Description Qty Price
33068 - BUTTON SUB-ASSY, SHIFT LOCK RELEASE
33623-B1010C0

KGC1#,QNC10..G,X

BLACK,TRIM1#

 1
33623-B1010C0

KGC15..G;KGC10,QNC10..G,X

ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,BLACK,TRIM1#

 1
33623-B1010C0

KGC15..G;KGC10,QNC10..G,X

ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,BLACK,TRIM1#

 1
33623-B1010C0

KGC1#,QNC10..G,X

BLACK,TRIM1#

 1
33623-B1010C0

KGC15..G;KGC10,QNC10..G,X

ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,BLACK,TRIM1#

 1
33623-B1010C0

KGC15..G;KGC10,QNC10..G,X

ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,BLACK,TRIM1#

 1
33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT)
33530-B1020C0

KGC15..G;KGC10,QNC10..G,X

ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,BLACK,TRIM1#

 1
33530-B1021C0

KGC15..G;KGC10,QNC10..G,X

ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,BLACK,TRIM1#

 1
33530-B1022C0

KGC15..G;KGC10,QNC10..G,X

ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,BLACK,TRIM1#

 1
33530-B1023C0

KGC15..G;KGC10,QNC10..G,X

ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,BLACK,TRIM1#

 1
33530-B1012C0

KGC1#,QNC10..G,X

BLACK,TRIM1#

 1
33530-B1023C0

KGC10

四国限定車 *(S),BLACK,TRIM1#

 1
33530-B1010C0

KGC1#,QNC10..G,X

BLACK,TRIM1#

 1
33560B - CABLE ASSY, SHIFT LOCK RELEASE
33560-B1010

KGC1#,QNC10

 1
33820 - CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)
33820-B1021

KGC10,QNC10

 1
33820-B1020

KGC10,QNC10

 1
33820H - CLIP(FOR TRANSMISSION CONTROL CABLE)
90044-68153

KGC10,QNC10

 1
33820H - CLIP(FOR TRANSMISSION CONTROL CABLE)
90044-68153

KGC10,QNC10

 1
33823A - BRACKET, TRANSMISSION CONTROL CABLE
35578-97202

KGC10,QNC10

 1
33524-B2020

KGC10,QNC10

 1
33829C - CLAMP, TRANSMISSION CONTROL CABLE
90044-61839

KGC1#,QNC10

 1
33829F - CLAMP, TRANSMISSION CONTROL CABLE, NO.2
90044-61838

KGC1#,QNC10

 1
Common parts
91631-60616
91651-60620
91651-G0616
