KGC10-AHSAK (2004)
Toyota Passo
Production
May 2004
-
Dec 2006
Engine
1KRFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)

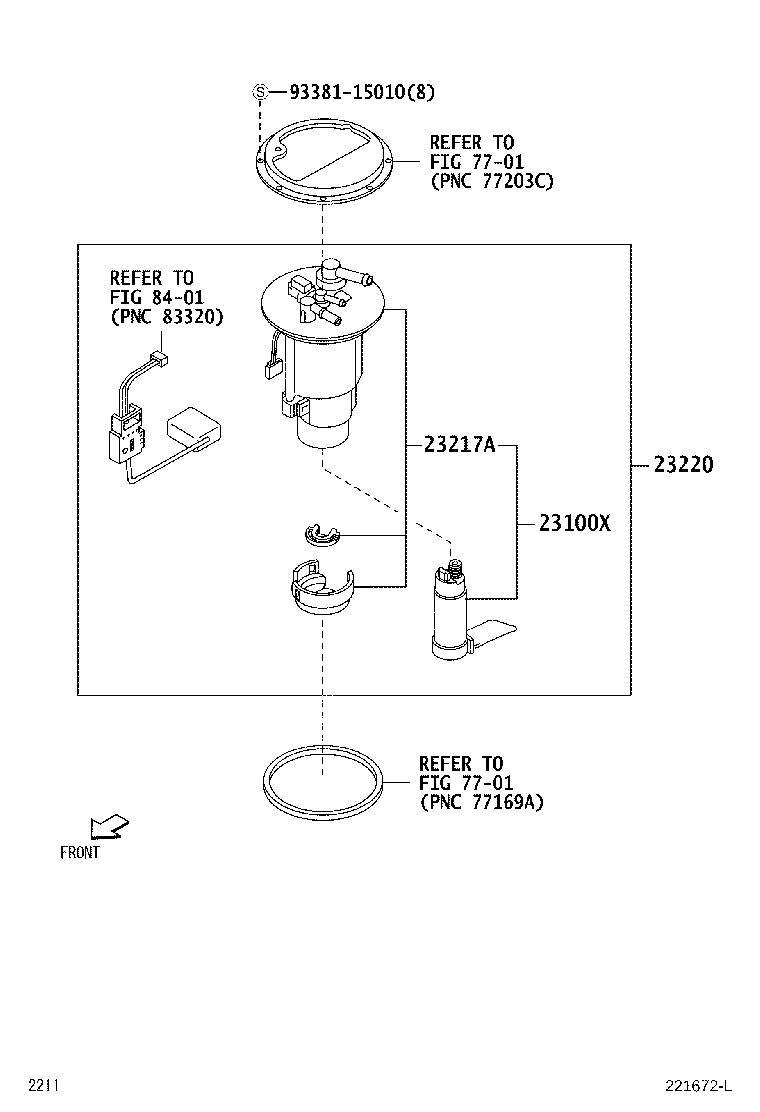

(0405-1002)1KRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100X - PUMP ASSY, FUEL (ENGINE ROOM SIDE) | ||||
| 23100-97212 |
1KRFE..KGC1# |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23908-97205 |
1KRFE..KGC1# |
1 | ||
| 23220 - PUMP ASSY, FUEL W/FILTER | ||||
| 23210-B1010 |
1KRFE..KGC1# |
1 | ||
| Common parts | ||||
| 93381-15010 | ||||
| Linked diagrams | ||||
| 7701 | ||||
| 8401 | ||||

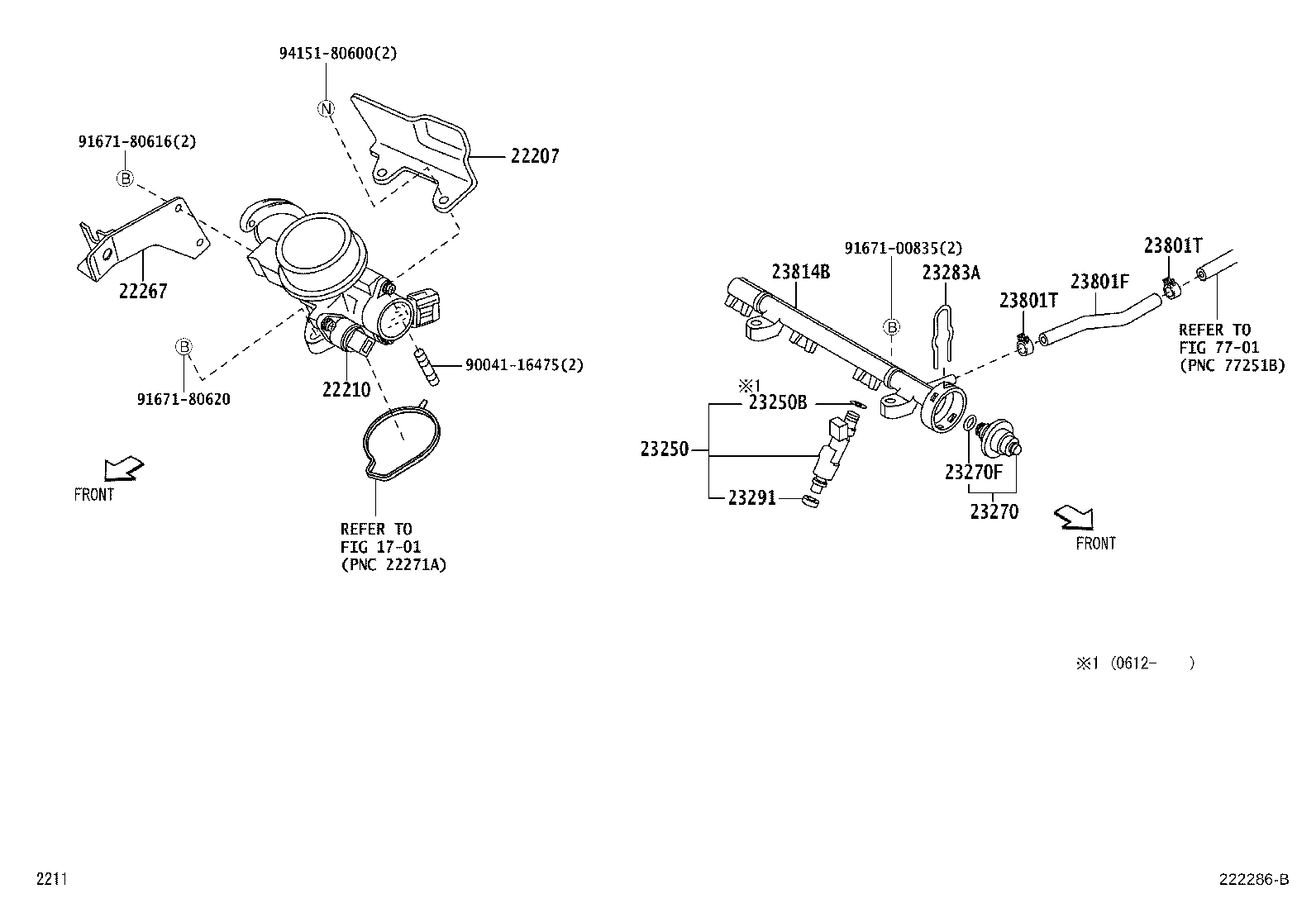

(0405-0612)1KRFE ; (0612-1002)1KRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22207 - COVER SUB-ASSY, THROTTLE BODY | ||||
| 22266-B1010 |
1KRFE..KGC1# |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-B1010 |
1KRFE..KGC1# |
1 | ||
| 22267 - BRACKET, THROTTLE BODY | ||||
| 22267-B1010 |
1KRFE..KGC1# |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-49085 |
1KRFE..KGC1# |
3 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-40010 |
1KRFE..KGC1# |
1 | ||
| 23270F - RING, O(FOR PULSATION DAMPER) | ||||
| 90301-07033 |
1KRFE..KGC1# |
1 | ||
| 23283A - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-40010 |
1KRFE..KGC1# |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-87701 |
1KRFE..KGC1# |
3 | ||
| 23801F - HOSE, FUEL, NO.1 | ||||
| 23271-B1010 |
1KRFE..KGC1# |
1 | ||
| 23271-B1011 |
1KRFE..KGC1# |
1 | ||
| 23801T - CLAMP OR CLIP, FUEL HOSE(FOR EFI) | ||||
| 90044-67234 |
1KRFE..KGC1# |
2 | ||
| 23801T - CLAMP OR CLIP, FUEL HOSE(FOR EFI) | ||||
| 90044-67234 |
1KRFE..KGC1# |
2 | ||
| 23814B - PIPE, FUEL DELIVERY | ||||
| 23814-B1010 |
1KRFE..KGC1# |
1 | ||
| Common parts | ||||
| 90041-16475 | ||||
| 91671-00835 | ||||
| 91671-80616 | ||||
| 91671-80620 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 7701 | ||||
