KGC10-AHSAK (2004)

Toyota Passo

Production May 2004 - Dec 2006
Engine 1KRFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0405-0612)1KRFE

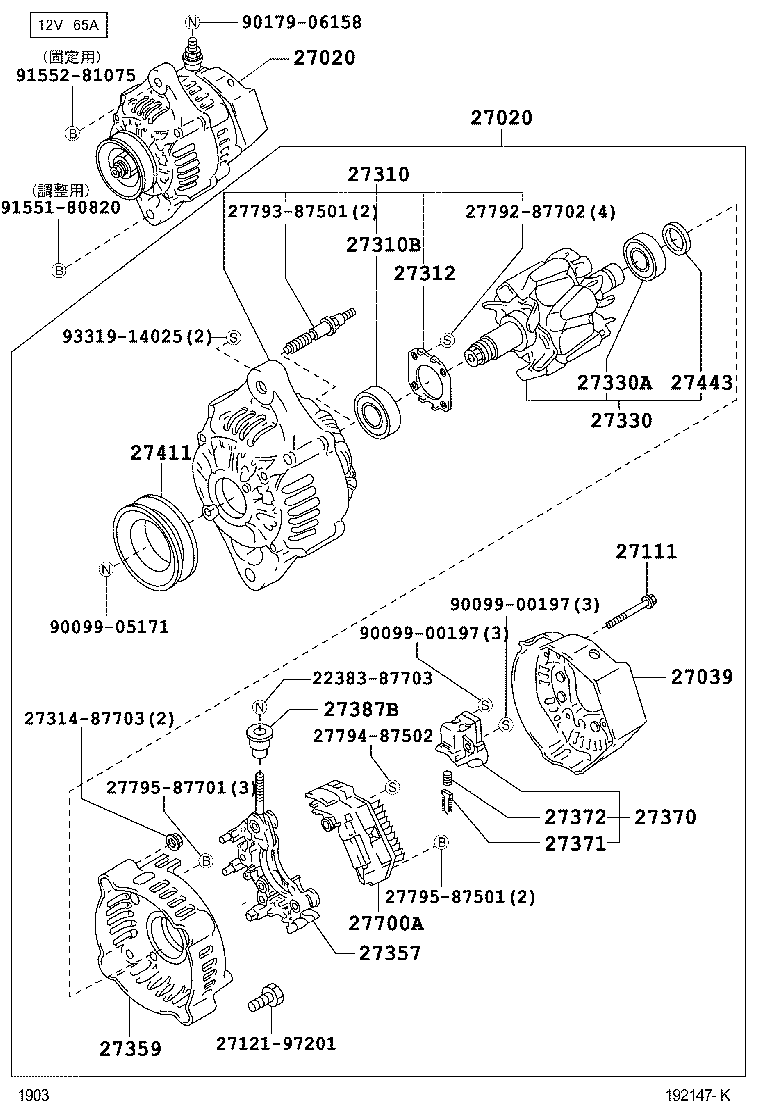

Click highlighted areas on diagram

diagram 2238387703 27020 27020 27039 27111 2712197201 27310 27310B 27312 2731487703 27330 27330A 27357 27359 27370 27371 27372 27387B 27411 27443 27700A 2779287702 2779387501 2779487502 2779587501 2779587701 9009900197 9009900197 9009905171 9017906158 9155180820 9155281075 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-B1010

1KRFE..KGC1#

12V 65A

 1
27020 - ALTERNATOR ASSY
27060-B1010

1KRFE..KGC1#

12V 65A

 1
27039 - COVER, ALTERNATOR REAR END
27039-97202

1KRFE..KGC1#

 1
27111 - BOLT, ALTERNATOR
27111-97501

1KRFE..KGC1#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-97205

1KRFE..KGC1#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10170

1KRFE..KGC1#

 1
27312 - PLATE, RETAINER
27312-87705

1KRFE..KGC1#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-97203

1KRFE..KGC1#

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
27791-87701

1KRFE..KGC1#

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-97501

1KRFE..KGC1#

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-97203

1KRFE..KGC1#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-87708

K3VE,1KRFE..KGC1#,QNC10

 1
27371 - BRUSH, ALTERNATOR
27371-87501

K3VE,1KRFE..KGC1#,QNC10

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-87501

K3VE,1KRFE..KGC1#,QNC10

 2
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-87204

1KRFE..KGC1#

 1
27411 - PULLEY, ALTERNATOR
27411-97203

1KRFE..KGC1#

 1
27443 - COVER, ALTERNATOR BEARING
27443-87501

K3VE,1KRFE..KGC1#,QNC10

 1
27700A - REGULATOR ASSY, GENERATOR
27700-97205

1KRFE..KGC1#

 1
Common parts
22383-87703
27121-97201
27314-87703
27792-87702
27793-87501
27794-87502
27795-87501
27795-87701
90099-00197
90099-05171
90179-06158
91551-80820
91552-81075
93319-14025
