KGC10-AHSAK (2004)
Toyota Passo
Production
May 2004
-
Dec 2006
Engine
1KRFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0405-1002)1KRFE

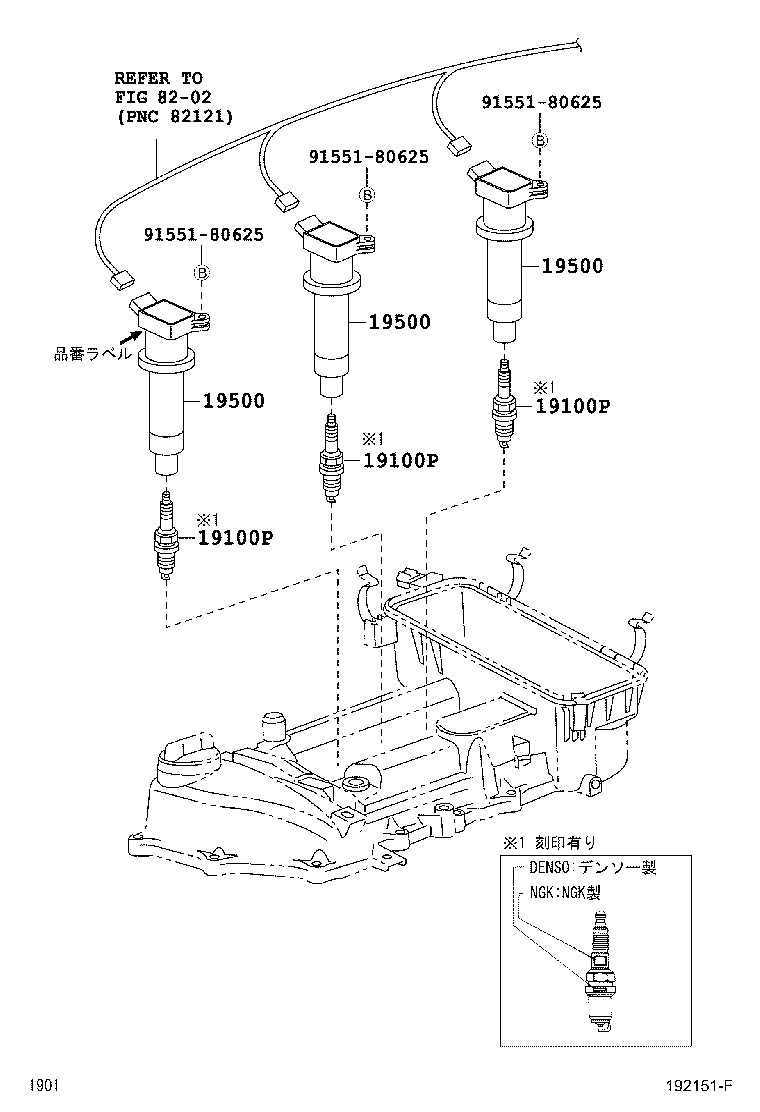

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90048-51185 |
1KRFE..KGC1# ILFR6C11,NGK |
3 | ||
| 90919-01191 |
1KRFE..KGC1# SK20HR11,DENSO |
3 | ||
| 19100P - PLUG, SPARK | ||||
| 90048-51185 |
1KRFE..KGC1# ILFR6C11,NGK |
3 | ||
| 90919-01191 |
1KRFE..KGC1# SK20HR11,DENSO |
3 | ||
| 19100P - PLUG, SPARK | ||||
| 90048-51185 |
1KRFE..KGC1# ILFR6C11,NGK |
3 | ||
| 90919-01191 |
1KRFE..KGC1# SK20HR11,DENSO |
3 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02239 |
1KRFE..KGC1# |
3 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02239 |
1KRFE..KGC1# |
3 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02239 |
1KRFE..KGC1# |
3 | ||
| Common parts | ||||
| 91551-80625 | ||||
| Linked diagrams | ||||
| 8202 | ||||
