KGC10-AHSAK (2004)
Toyota Passo
Production
May 2004
-
Dec 2006
Engine
1KRFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0405-1002)1KRFE

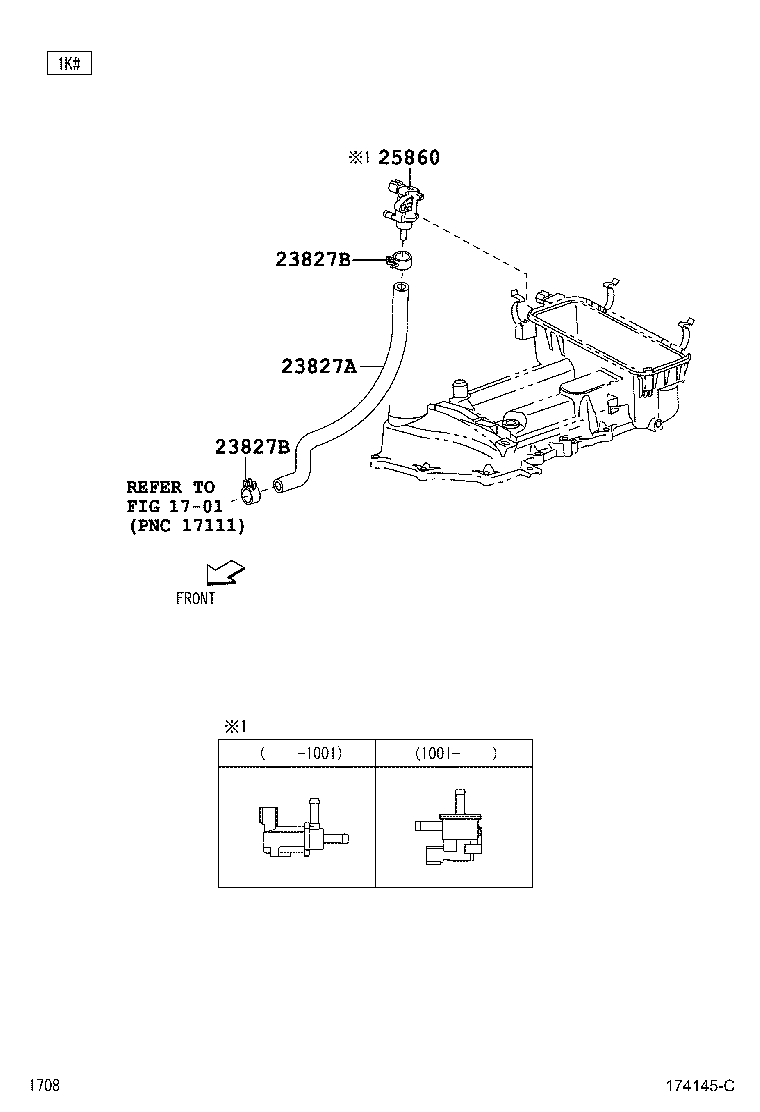

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-40010 |
1KRFE..KGC1# |
1 | ||
| 23827-B1010 |
1KRFE..KGC1# |
1 | ||
| 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 96132-41300 |
1KRFE..KGC1# |
2 | ||
| 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 96132-41300 |
1KRFE..KGC1# |
2 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 90910-12275 |
1KRFE..KGC1# |
1 | ||
| Linked diagrams | ||||
| 1701 | ||||
