KGC10-AHSAK (2004)
Toyota Passo
Production
May 2004
-
Dec 2006
Engine
1KRFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0405-1002)1KRFE

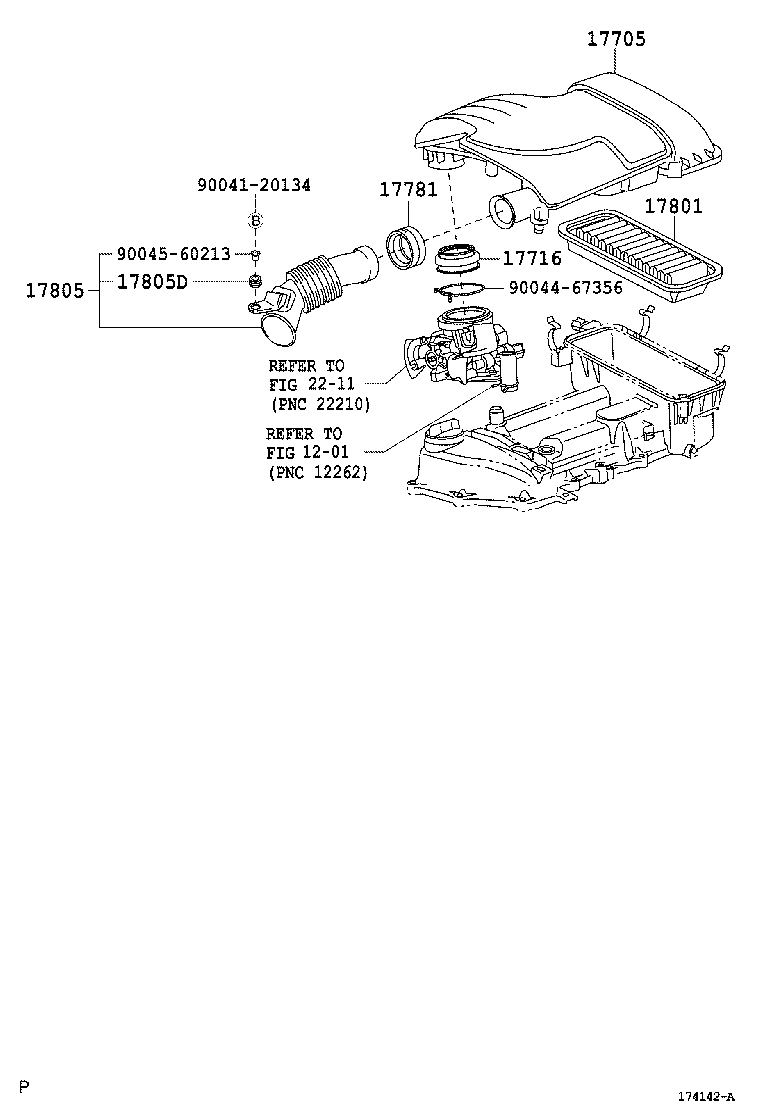

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-40100 |
1KRFE..KGC1# |
1 | ||
| 17716 - SUPPORT,AIR CLEANER CAP | ||||
| 17716-40020 |
1KRFE..KGC1# |
1 | ||
| 17781 - SEAL, AIR CLEANER INLET | ||||
| 17781-B1010 |
1KRFE..KGC1# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-23030 |
1KRFE..KGC1# |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17881-B1020 |
1KRFE..KGC1# |
1 | ||
| 17805D - GROMMET(FOR INTAKE AIR CONNECTOR) | ||||
| 90480-11016 |
1KRFE..KGC1# |
1 | ||
| Common parts | ||||
| 90041-20134 | ||||
| 90044-67356 | ||||
| 90045-60213 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 2211 | ||||
