KGC10-AHSAK (2004)
Toyota Passo

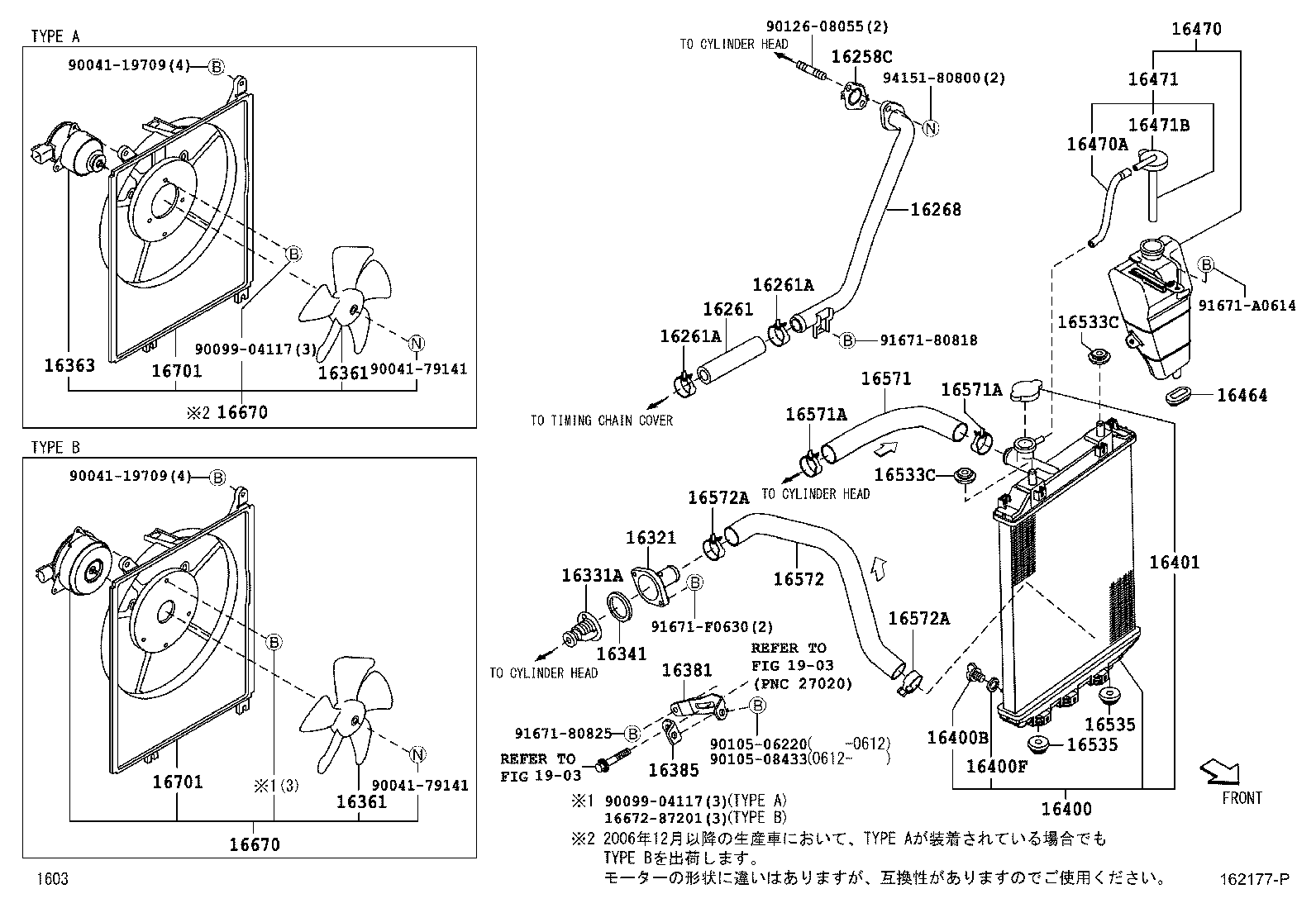

(0405-1002)1KRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-40010 |
1KRFE..KGC1# |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-40111 |
1KRFE..KGC1# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-30001 |
1KRFE..KGC1# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-30001 |
1KRFE..KGC1# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-40010 |
1KRFE..KGC1# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-40010 |
1KRFE..KGC1# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03134 |
1KRFE..KGC1# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
1KRFE..KGC1# |
1 | ||
| 16361 - FAN | ||||
| 16690-97201 |
1KRFE..KGC1# |
1 | ||
| 16690-97201 |
1KRFE..KGC1# |
1 | ||
| 16361 - FAN | ||||
| 16690-97201 |
1KRFE..KGC1# |
1 | ||
| 16690-97201 |
1KRFE..KGC1# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16680-87402 |
1KRFE..KGC1# ﾀｲﾌﾟ A |
1 | ||
| 16680-87402 |
1KRFE..KGC1# ﾀｲﾌﾟ A |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-B1010 |
1KRFE..KGC1# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-40010 |
1KRFE..KGC1# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-B1020 |
1KRFE..KGC1# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-87101 |
1KRFE..KGC1# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16442-97201 |
1KRFE..KGC1# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-97202 |
1KRFE..KGC1# |
1 | ||
| 16464 - BUSH, TANK LOWER | ||||
| 16464-97201 |
1KRFE..KGC1# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-B1010 |
1KRFE..KGC1# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16472-B1010 |
1KRFE..KGC1# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-B1010 |
1KRFE..KGC1# |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16471-B1010 |
1KRFE..KGC1# |
1 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90044-80621 |
1KRFE..KGC1# |
2 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90044-80621 |
1KRFE..KGC1# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90044-80592 |
1KRFE..KGC1# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90044-80592 |
1KRFE..KGC1# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-B1010 |
1KRFE..KGC1# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90044-66014 |
1KRFE..KGC1# 内径=32.2,幅=10.2 |
2 | ||
| 90044-67176 |
1KRFE..KGC1# 内径=31,幅=15 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90044-66014 |
1KRFE..KGC1# 内径=32.2,幅=10.2 |
2 | ||
| 90044-67176 |
1KRFE..KGC1# 内径=31,幅=15 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-B1010 |
1KRFE..KGC1# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90044-67176 |
1KRFE..KGC1# 内径=31,幅=15 |
2 | ||
| 90044-66014 |
1KRFE..KGC1# 内径=32.2,幅=10.2 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90044-67176 |
1KRFE..KGC1# 内径=31,幅=15 |
2 | ||
| 90044-66014 |
1KRFE..KGC1# 内径=32.2,幅=10.2 |
2 | ||
| 16670 - MOTER ASSY, FAN W/SHROUD | ||||
| 16360-B2010 |
1KRFE..KGC1# |
1 | ||
| 16670 - MOTER ASSY, FAN W/SHROUD | ||||
| 16360-B2010 |
1KRFE..KGC1# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16700-97205 |
1KRFE..KGC1# |
1 | ||
| 16700-97205 |
1KRFE..KGC1# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16700-97205 |
1KRFE..KGC1# |
1 | ||
| 16700-97205 |
1KRFE..KGC1# |
1 | ||
| Common parts | ||||
| 16672-87201 | ||||
| 90041-19709 | ||||
| 90041-79141 | ||||
| 90099-04117 | ||||
| 90105-06220 | ||||
| 90105-08433 | ||||
| 90126-08055 | ||||
| 91671-80818 | ||||
| 91671-80825 | ||||
| 91671-A0614 | ||||
| 91671-F0630 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1903 | ||||

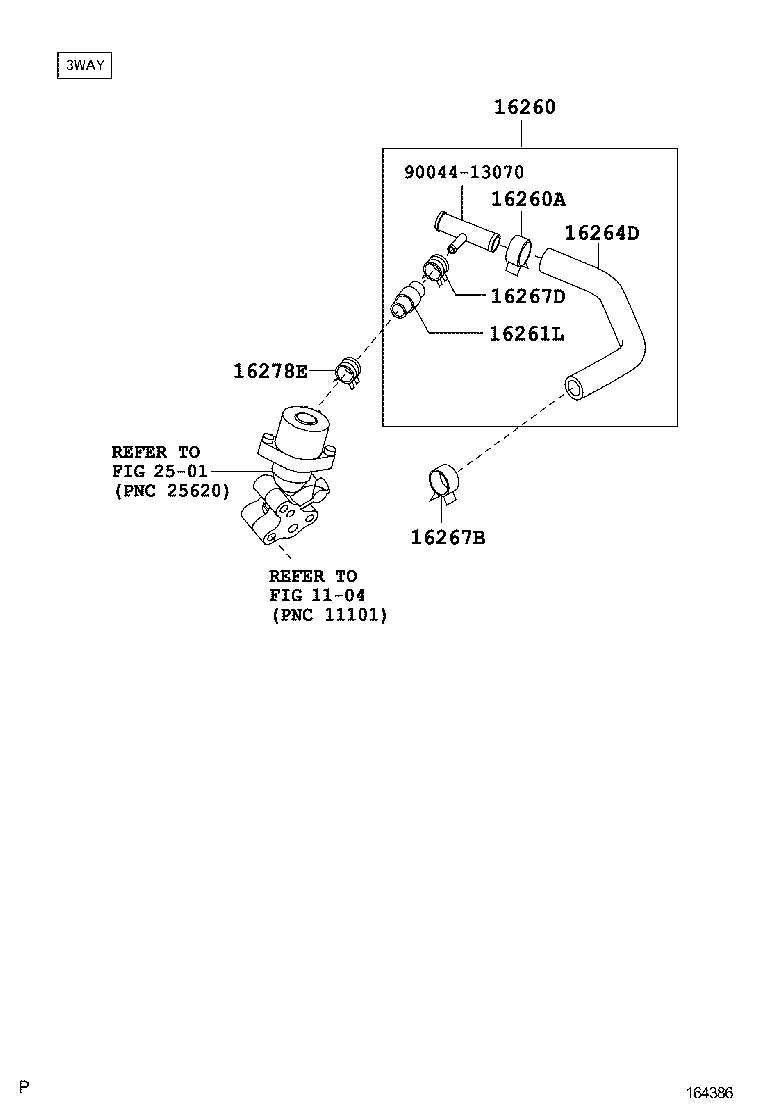

(0405-1002)1KRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-B1010 |
1KRFE..KGC1# 3ｳｪｲ ﾖｳ |
1 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 96134-42100 |
1KRFE..KGC1# |
1 | ||
| 16261L - HOSE, WATER BY-PASS | ||||
| 16261-40060 |
1KRFE..KGC1# |
1 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-B1020 |
1KRFE..KGC1# |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96134-42100 |
1KRFE..KGC1# |
1 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96135-41300 |
1KRFE..KGC1# |
1 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
1KRFE..KGC1# |
1 | ||
| Common parts | ||||
| 90044-13070 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 2501 | ||||
