KGC10-AHSAK (2004)
Toyota Passo
Production
May 2004
-
Dec 2006
Engine
1KRFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)

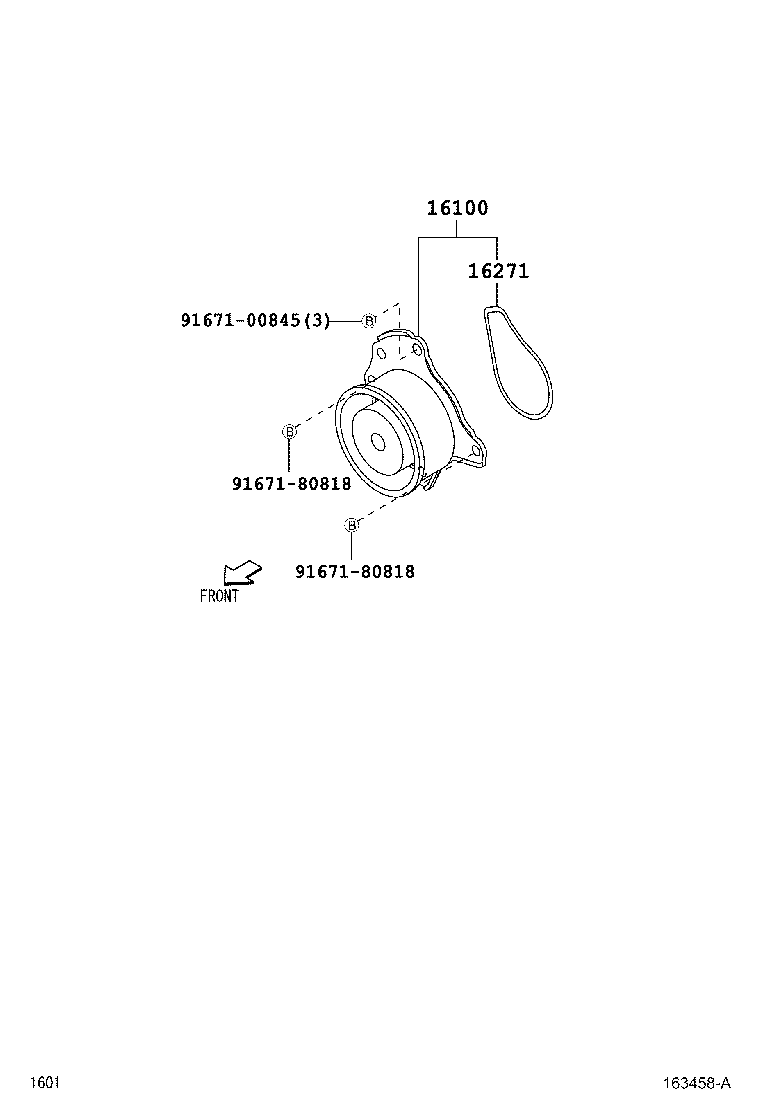

(0405-0409)1KRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-80001 |
1KRFE..KGC1# |
1 | ||
| 16100-97234 |
1KRFE..KGC1# |
1 | ||
| 16100-80003 |
1KRFE..KGC1# |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-40020 |
1KRFE..KGC1# |
1 | ||
| Common parts | ||||
| 91671-00845 | ||||
| 91671-80818 | ||||

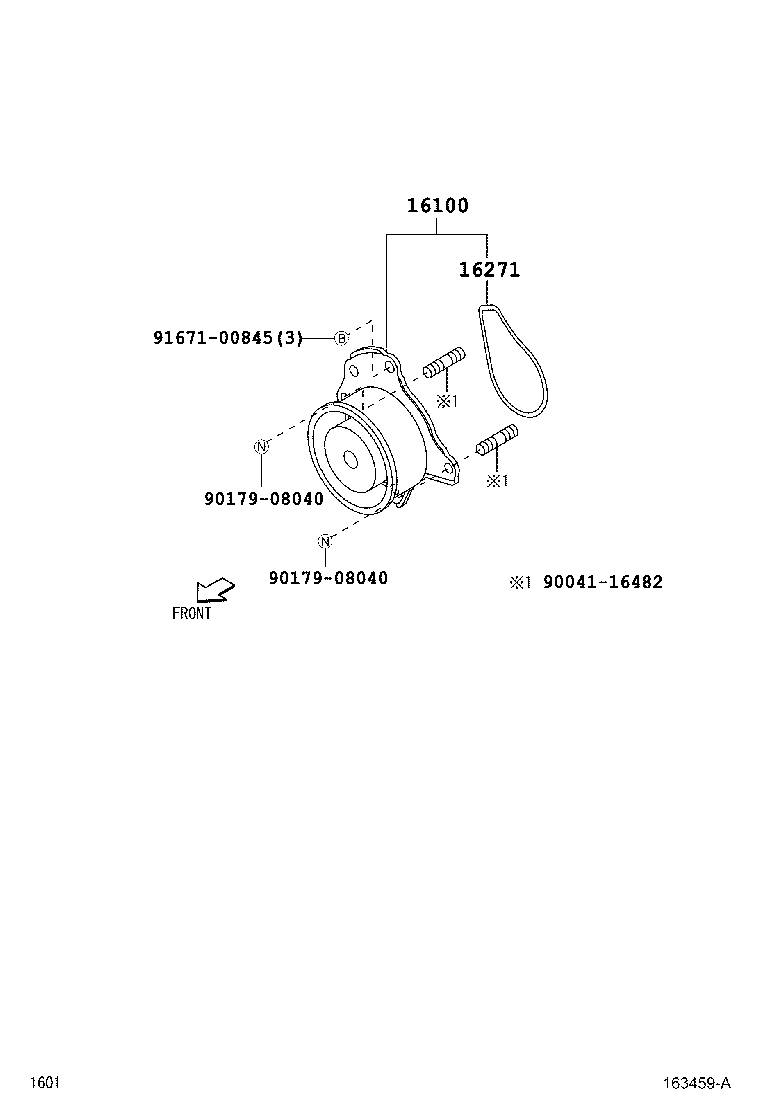

(0409-0508)1KRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-80001 |
1KRFE..KGC1# |
1 | ||
| 16100-97234 |
1KRFE..KGC1# |
1 | ||
| 16100-80003 |
1KRFE..KGC1# |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-40020 |
1KRFE..KGC1# |
1 | ||
| Common parts | ||||
| 90041-16482 | ||||
| 90179-08040 | ||||
| 91671-00845 | ||||
