KGC10-AHSAK (2004)
Toyota Passo
(0405-1002)1KRFE

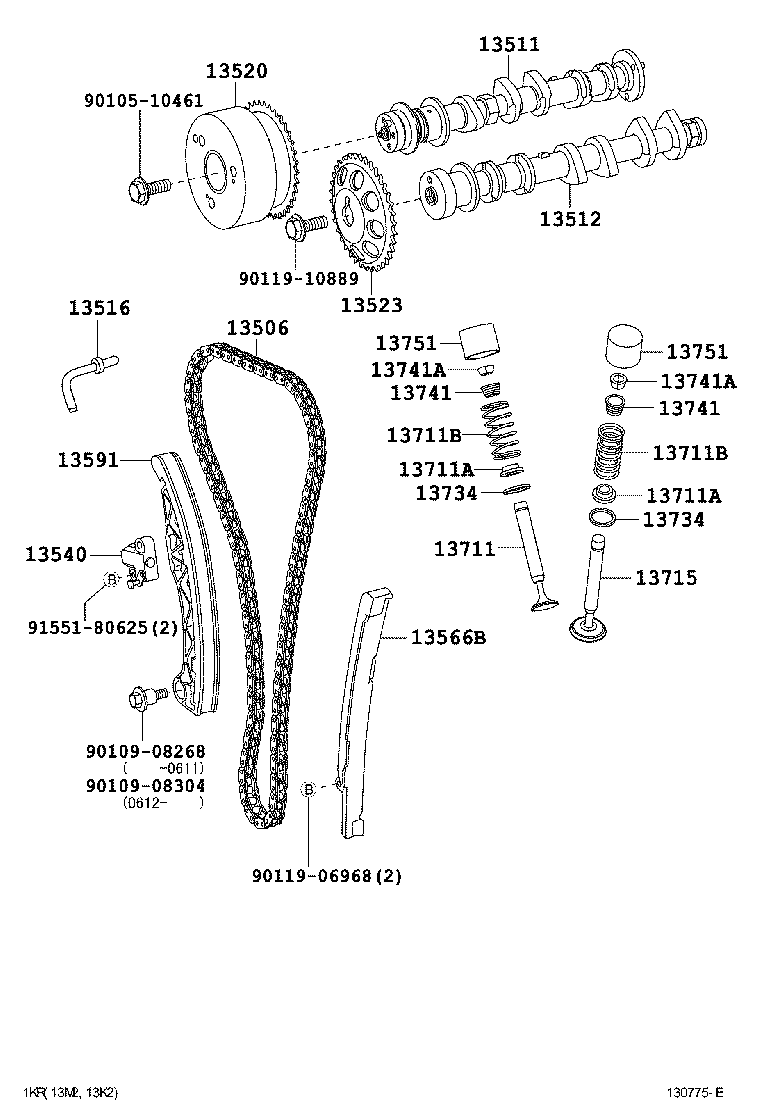

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-21020 |
1KRFE..KGC1# |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-40040 |
1KRFE..KGC1# |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-40010 |
1KRFE..KGC1# |
1 | ||
| 13516 - JET, OIL | ||||
| 13516-40010 |
1KRFE..KGC1# |
1 | ||
| 13520 - SPROCKET ASSY, CAMSHAFT TIMING | ||||
| 13520-40020 |
1KRFE..KGC1# |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-22020 |
1KRFE..KGC1# |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-21020 |
1KRFE..KGC1# |
1 | ||
| 13566B - GUIDE, TIMING CHAIN | ||||
| 13566-40020 |
1KRFE..KGC1# |
1 | ||
| 13591 - ARM, TIMING CHAIN TENSION | ||||
| 13591-40020 |
1KRFE..KGC1# |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-40040 |
1KRFE..KGC1# |
6 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02092 |
1KRFE..KGC1# ｴｷｿﾞｰｽﾄ側 |
6 | ||
| 90913-02093 |
1KRFE..KGC1# ｲﾝﾃｰｸ側 |
6 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02092 |
1KRFE..KGC1# ｴｷｿﾞｰｽﾄ側 |
6 | ||
| 90913-02093 |
1KRFE..KGC1# ｲﾝﾃｰｸ側 |
6 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-25064 |
1KRFE..KGC1# ｻﾝｺｰﾙ |
12 | ||
| 90501-25063 |
1KRFE..KGC1# 中央発條 |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-25064 |
1KRFE..KGC1# ｻﾝｺｰﾙ |
12 | ||
| 90501-25063 |
1KRFE..KGC1# 中央発條 |
12 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-40040 |
1KRFE..KGC1# |
6 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-40010 |
1KRFE..KGC1# |
12 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-40010 |
1KRFE..KGC1# |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-22021 |
1KRFE..KGC1# |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-22021 |
1KRFE..KGC1# |
12 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03031 |
1KRFE..KGC1# |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03031 |
1KRFE..KGC1# |
24 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-23290 |
1KRFE..KGC1# 厚さ=5.64 |
16 | ||
| 13751-23060 |
1KRFE..KGC1# 厚さ=5.18 |
16 | ||
| 13751-23040 |
1KRFE..KGC1# 厚さ=5.14 |
16 | ||
| 13751-23050 |
1KRFE..KGC1# 厚さ=5.16 |
16 | ||
| 13751-23090 |
1KRFE..KGC1# 厚さ=5.24 |
16 | ||
| 13751-23030 |
1KRFE..KGC1# 厚さ=5.12 |
16 | ||
| 13751-23100 |
1KRFE..KGC1# 厚さ=5.26 |
16 | ||
| 13751-23080 |
1KRFE..KGC1# 厚さ=5.22 |
16 | ||
| 13751-23070 |
1KRFE..KGC1# 厚さ=5.20 |
16 | ||
| 13751-23150 |
1KRFE..KGC1# 厚さ=5.36 |
16 | ||
| 13751-23190 |
1KRFE..KGC1# 厚さ=5.44 |
16 | ||
| 13751-23210 |
1KRFE..KGC1# 厚さ=5.48 |
16 | ||
| 13751-23170 |
1KRFE..KGC1# 厚さ=5.40 |
16 | ||
| 13751-23200 |
1KRFE..KGC1# 厚さ=5.46 |
16 | ||
| 13751-23270 |
1KRFE..KGC1# 厚さ=5.60 |
16 | ||
| 13751-23220 |
1KRFE..KGC1# 厚さ=5.50 |
16 | ||
| 13751-23160 |
1KRFE..KGC1# 厚さ=5.38 |
16 | ||
| 13751-23140 |
1KRFE..KGC1# 厚さ=5.34 |
16 | ||
| 13751-23180 |
1KRFE..KGC1# 厚さ=5.42 |
16 | ||
| 13751-23230 |
1KRFE..KGC1# 厚さ=5.52 |
16 | ||
| 13751-23110 |
1KRFE..KGC1# 厚さ=5.28 |
16 | ||
| 13751-23120 |
1KRFE..KGC1# 厚さ=5.30 |
16 | ||
| 13751-23130 |
1KRFE..KGC1# 厚さ=5.32 |
16 | ||
| 13751-23280 |
1KRFE..KGC1# 厚さ=5.62 |
16 | ||
| 13751-23260 |
1KRFE..KGC1# 厚さ=5.58 |
16 | ||
| 13751-23300 |
1KRFE..KGC1# 厚さ=5.66 |
16 | ||
| 13751-23250 |
1KRFE..KGC1# 厚さ=5.56 |
16 | ||
| 13751-23240 |
1KRFE..KGC1# 厚さ=5.54 |
16 | ||
| 13751-23310 |
1KRFE..KGC1# 厚さ=5.68 |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-23060 |
1KRFE..KGC1# 厚さ=5.18 |
16 | ||
| 13751-23040 |
1KRFE..KGC1# 厚さ=5.14 |
16 | ||
| 13751-23050 |
1KRFE..KGC1# 厚さ=5.16 |
16 | ||
| 13751-23090 |
1KRFE..KGC1# 厚さ=5.24 |
16 | ||
| 13751-23030 |
1KRFE..KGC1# 厚さ=5.12 |
16 | ||
| 13751-23100 |
1KRFE..KGC1# 厚さ=5.26 |
16 | ||
| 13751-23080 |
1KRFE..KGC1# 厚さ=5.22 |
16 | ||
| 13751-23070 |
1KRFE..KGC1# 厚さ=5.20 |
16 | ||
| 13751-23150 |
1KRFE..KGC1# 厚さ=5.36 |
16 | ||
| 13751-23190 |
1KRFE..KGC1# 厚さ=5.44 |
16 | ||
| 13751-23210 |
1KRFE..KGC1# 厚さ=5.48 |
16 | ||
| 13751-23170 |
1KRFE..KGC1# 厚さ=5.40 |
16 | ||
| 13751-23200 |
1KRFE..KGC1# 厚さ=5.46 |
16 | ||
| 13751-23270 |
1KRFE..KGC1# 厚さ=5.60 |
16 | ||
| 13751-23220 |
1KRFE..KGC1# 厚さ=5.50 |
16 | ||
| 13751-23160 |
1KRFE..KGC1# 厚さ=5.38 |
16 | ||
| 13751-23140 |
1KRFE..KGC1# 厚さ=5.34 |
16 | ||
| 13751-23180 |
1KRFE..KGC1# 厚さ=5.42 |
16 | ||
| 13751-23230 |
1KRFE..KGC1# 厚さ=5.52 |
16 | ||
| 13751-23110 |
1KRFE..KGC1# 厚さ=5.28 |
16 | ||
| 13751-23120 |
1KRFE..KGC1# 厚さ=5.30 |
16 | ||
| 13751-23130 |
1KRFE..KGC1# 厚さ=5.32 |
16 | ||
| 13751-23280 |
1KRFE..KGC1# 厚さ=5.62 |
16 | ||
| 13751-23260 |
1KRFE..KGC1# 厚さ=5.58 |
16 | ||
| 13751-23300 |
1KRFE..KGC1# 厚さ=5.66 |
16 | ||
| 13751-23290 |
1KRFE..KGC1# 厚さ=5.64 |
16 | ||
| 13751-23250 |
1KRFE..KGC1# 厚さ=5.56 |
16 | ||
| 13751-23240 |
1KRFE..KGC1# 厚さ=5.54 |
16 | ||
| 13751-23310 |
1KRFE..KGC1# 厚さ=5.68 |
16 | ||
| Common parts | ||||
| 90105-10461 | ||||
| 90109-08268 | ||||
| 90109-08304 | ||||
| 90119-06968 | ||||
| 90119-10889 | ||||
| 91551-80625 | ||||
