KGC10-AHSAK (2004)
Toyota Passo
(0405-1002)1KRFE

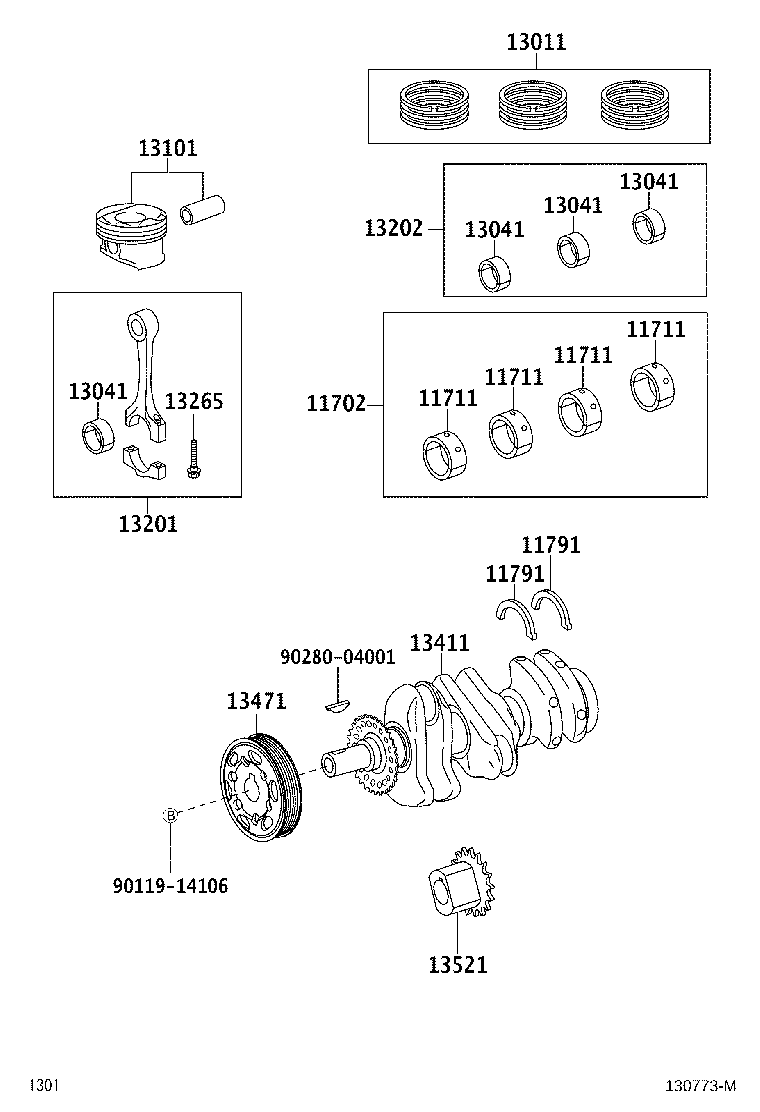

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-40040 |
1KRFE..KGC1# U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-4004003 |
1KRFE..KGC1# MARK3,修理書参照 |
4 | ||
| 11701-4004002 |
1KRFE..KGC1# MARK2,修理書参照 |
4 | ||
| 11701-4004005 |
1KRFE..KGC1# MARK5,修理書参照 |
4 | ||
| 11701-4004004 |
1KRFE..KGC1# MARK4,修理書参照 |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-4004003 |
1KRFE..KGC1# MARK3,修理書参照 |
4 | ||
| 11701-4004002 |
1KRFE..KGC1# MARK2,修理書参照 |
4 | ||
| 11701-4004005 |
1KRFE..KGC1# MARK5,修理書参照 |
4 | ||
| 11701-4004004 |
1KRFE..KGC1# MARK4,修理書参照 |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-4004003 |
1KRFE..KGC1# MARK3,修理書参照 |
4 | ||
| 11701-4004002 |
1KRFE..KGC1# MARK2,修理書参照 |
4 | ||
| 11701-4004005 |
1KRFE..KGC1# MARK5,修理書参照 |
4 | ||
| 11701-4004004 |
1KRFE..KGC1# MARK4,修理書参照 |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-4004003 |
1KRFE..KGC1# MARK3,修理書参照 |
4 | ||
| 11701-4004002 |
1KRFE..KGC1# MARK2,修理書参照 |
4 | ||
| 11701-4004005 |
1KRFE..KGC1# MARK5,修理書参照 |
4 | ||
| 11701-4004004 |
1KRFE..KGC1# MARK4,修理書参照 |
4 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-40020 |
1KRFE..KGC1# STD |
2 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-40020 |
1KRFE..KGC1# STD |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-40030 |
1KRFE..KGC1# STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4003003 |
1KRFE..KGC1# MARK3 |
3 | ||
| 13041-4003002 |
1KRFE..KGC1# MARK2 |
3 | ||
| 13041-40030 |
1KRFE..KGC1# |
3 | ||
| 13041-4003001 |
1KRFE..KGC1# MARK1 |
3 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4003003 |
1KRFE..KGC1# MARK3 |
3 | ||
| 13041-4003002 |
1KRFE..KGC1# MARK2 |
3 | ||
| 13041-40030 |
1KRFE..KGC1# |
3 | ||
| 13041-4003001 |
1KRFE..KGC1# MARK1 |
3 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4003003 |
1KRFE..KGC1# MARK3 |
3 | ||
| 13041-4003002 |
1KRFE..KGC1# MARK2 |
3 | ||
| 13041-40030 |
1KRFE..KGC1# |
3 | ||
| 13041-4003001 |
1KRFE..KGC1# MARK1 |
3 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4003003 |
1KRFE..KGC1# MARK3 |
3 | ||
| 13041-4003002 |
1KRFE..KGC1# MARK2 |
3 | ||
| 13041-40030 |
1KRFE..KGC1# |
3 | ||
| 13041-4003001 |
1KRFE..KGC1# MARK1 |
3 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-40021 |
1KRFE..KGC1# STD,櫻興業 |
3 | ||
| 13101-40020 |
1KRFE..KGC1# STD |
3 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-49075 |
1KRFE..KGC1# |
3 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-40030 |
1KRFE..KGC1# U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-21020 |
1KRFE..KGC1# |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-40020 |
1KRFE..KGC1# |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13471-40060 |
1KRFE..KGC1# |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-40020 |
1KRFE..KGC1# |
1 | ||
| Common parts | ||||
| 90119-14106 | ||||
| 90280-04001 | ||||
