KGC10-AHSAK (2004)
Toyota Passo
Production
May 2004
-
Dec 2006
Engine
1KRFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)

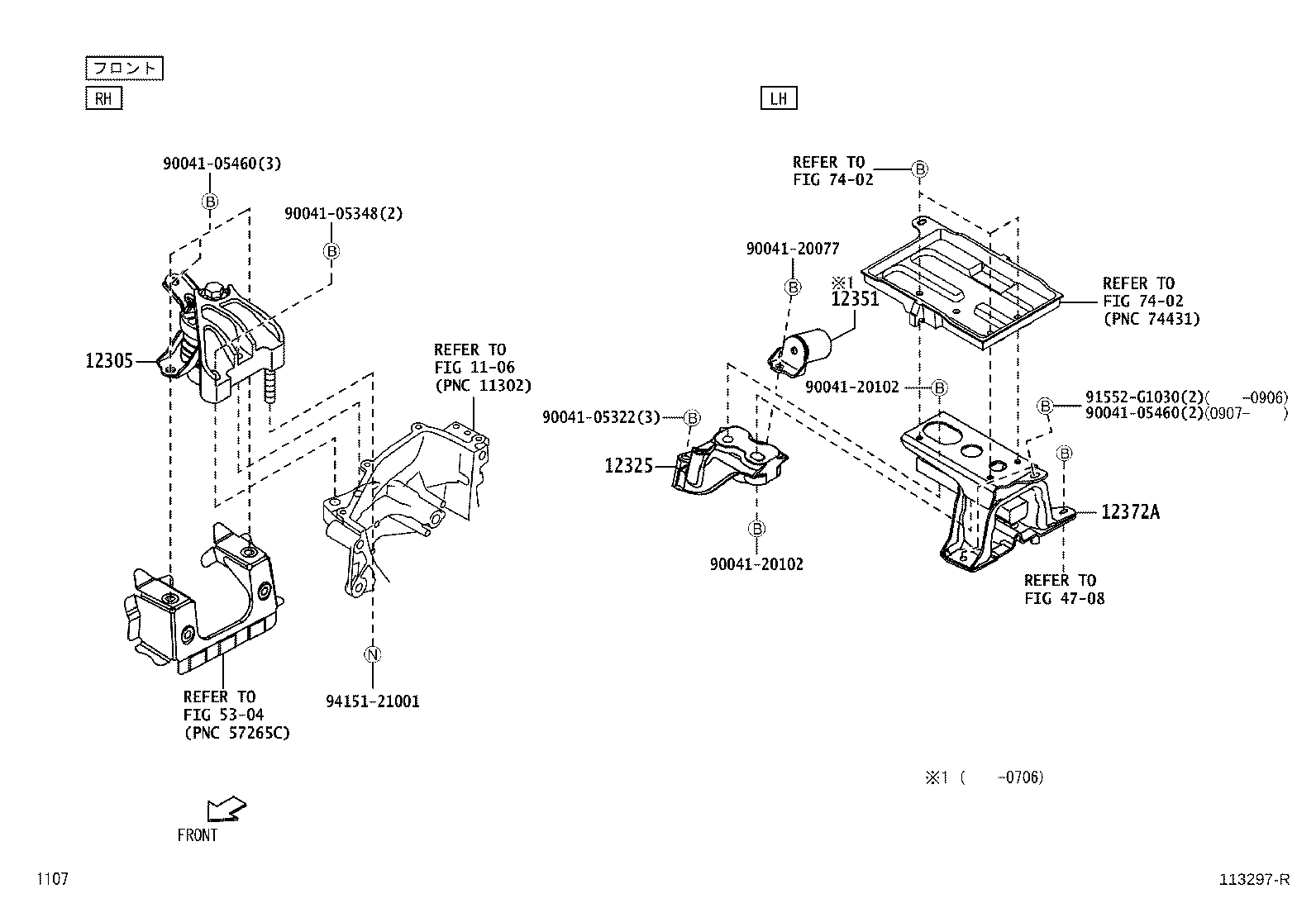

(0405-1002)1KRFE
Click highlighted areas on diagram
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-B1010 |
1KRFE..KGC1# |
1 | ||
| 12305-B1011 |
1KRFE..KGC1# |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-B1010 |
1KRFE..KGC1# |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-B1010 |
1KRFE..KGC1# PNC12325ｺｳｶﾝｼﾞﾌﾖｳ |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12306-B1020 |
1KRFE..KGC1# |
1 | ||
| 12306-B1030 |
1KRFE..KGC1# |
1 | ||
| Common parts | ||||
| 90041-05322 | ||||
| 90041-05348 | ||||
| 90041-05460 | ||||
| 90041-20077 | ||||
| 90041-20102 | ||||
| 91552-G1030 | ||||
| 94151-21001 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 4708 | ||||
| 5304 | ||||
| 7402 | ||||

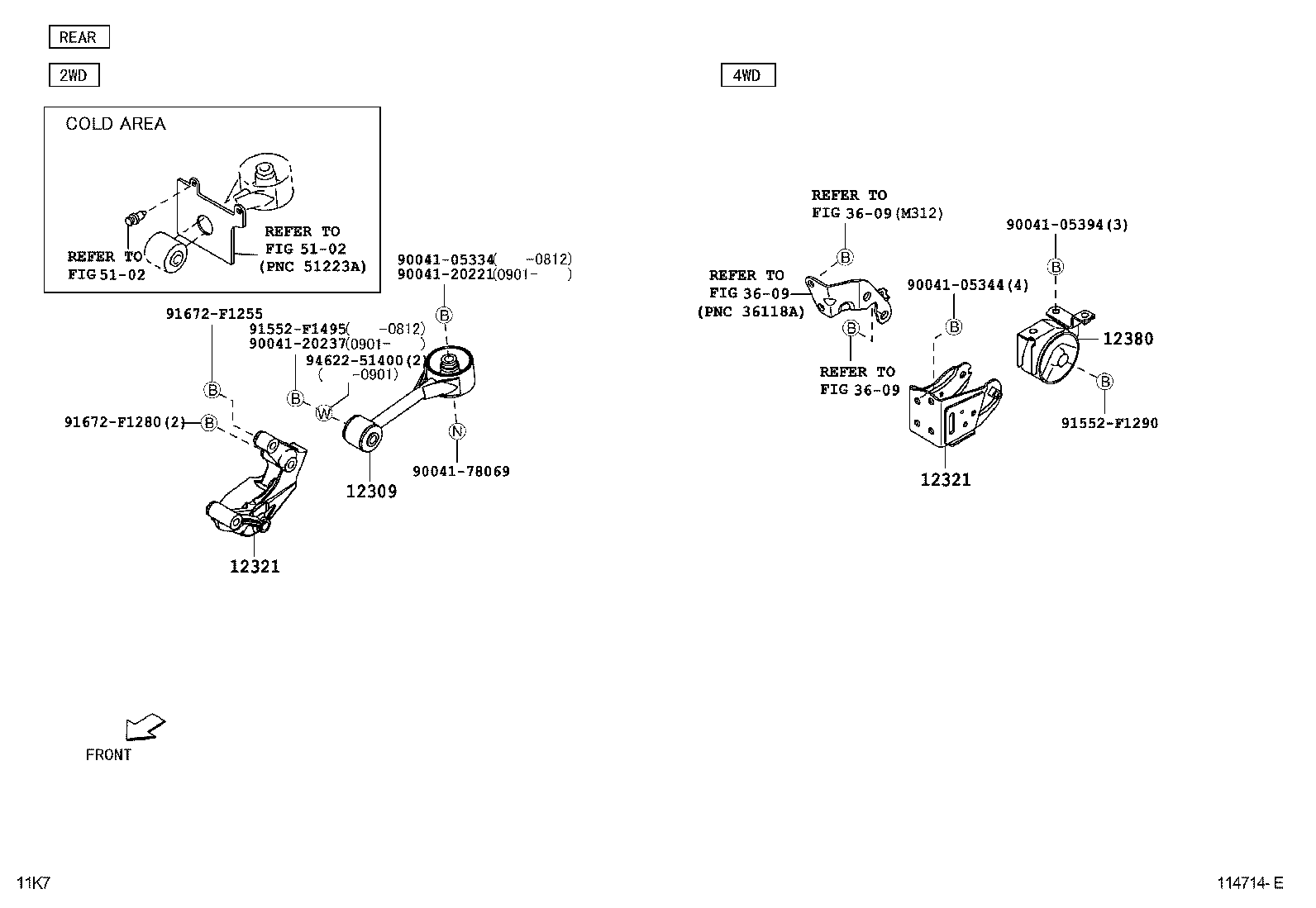

(0405-1002)1KRFE
Click highlighted areas on diagram
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12309 - ROD SUB-ASSY, ENGINE MOVING CONTROL | ||||
| 12309-B1020 |
1KRFE..KGC10 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-B1010 |
1KRFE..KGC10 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-B1010 |
1KRFE..KGC10 |
1 | ||
| Common parts | ||||
| 90041-05334 | ||||
| 90041-05344 | ||||
| 90041-05394 | ||||
| 90041-20221 | ||||
| 90041-20237 | ||||
| 90041-78069 | ||||
| 91552-F1290 | ||||
| 91552-F1495 | ||||
| 91672-F1255 | ||||
| 91672-F1280 | ||||
| 94622-51400 | ||||
| Linked diagrams | ||||
| 3609 | ||||
| 5102 | ||||
