KGC10-AHSAK (2004)
Toyota Passo
Production
May 2004
-
Dec 2006
Engine
1KRFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0405-0908)1KRFE

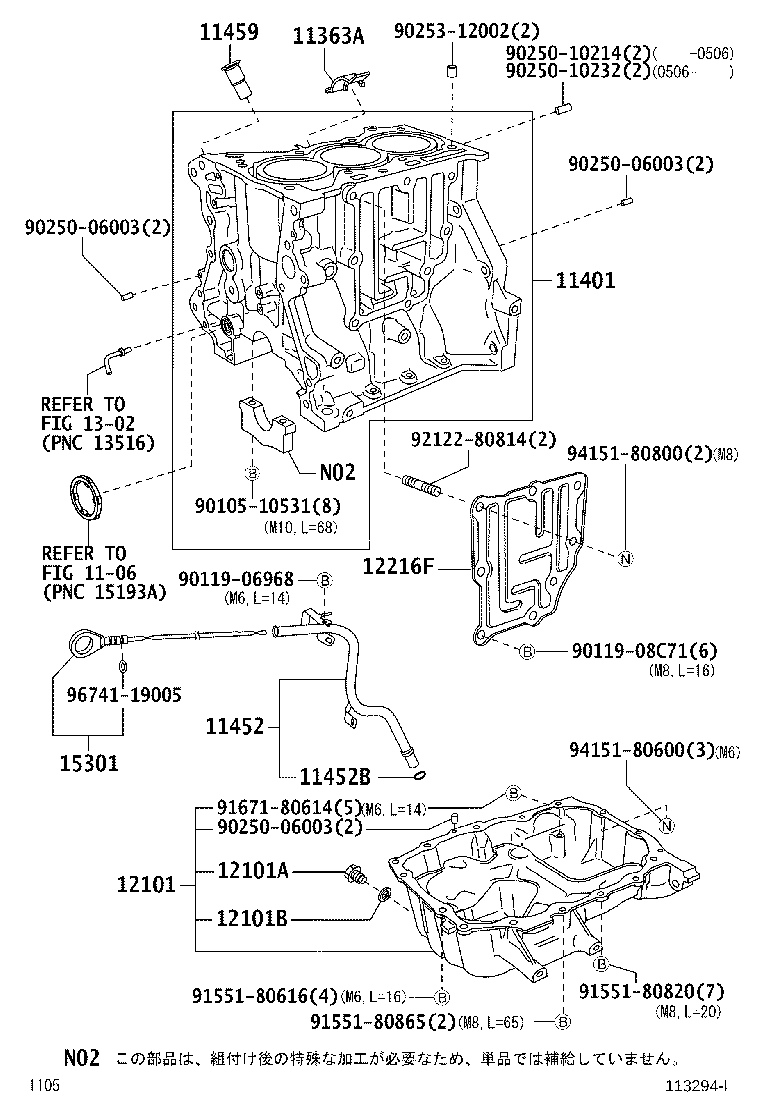

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11363A - COVER, FLYWHEEL HOUSING SIDE | ||||
| 11363-B1010 |
1KRFE..KGC1# |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-B9340 |
1KRFE..KGC1# |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11409-B1020 |
1KRFE..KGC1# |
1 | ||
| 11409-40030 |
1KRFE..KGC1# |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96721-19010 |
1KRFE..KGC1# |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 11459-40010 |
1KRFE..KGC1# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-B1010 |
1KRFE..KGC1# |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12032 |
1KRFE..KGC1# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1KRFE..KGC1# |
1 | ||
| 12216F - PLATE, VENTILATION BAFFLE | ||||
| 12216-40020 |
1KRFE..KGC1# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-B1010 |
1KRFE..KGC1# L=567 |
1 | ||
| Common parts | ||||
| 90105-10531 | ||||
| 90119-06968 | ||||
| 90119-08C71 | ||||
| 90250-06003 | ||||
| 90250-10214 | ||||
| 90250-10232 | ||||
| 90253-12002 | ||||
| 91551-80616 | ||||
| 91551-80820 | ||||
| 91551-80865 | ||||
| 91671-80614 | ||||
| 92122-80814 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 96741-19005 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1302 | ||||
