JCG17-BEPXF (2000)

Toyota Origin

Production Aug 2000 - Apr 2001
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )

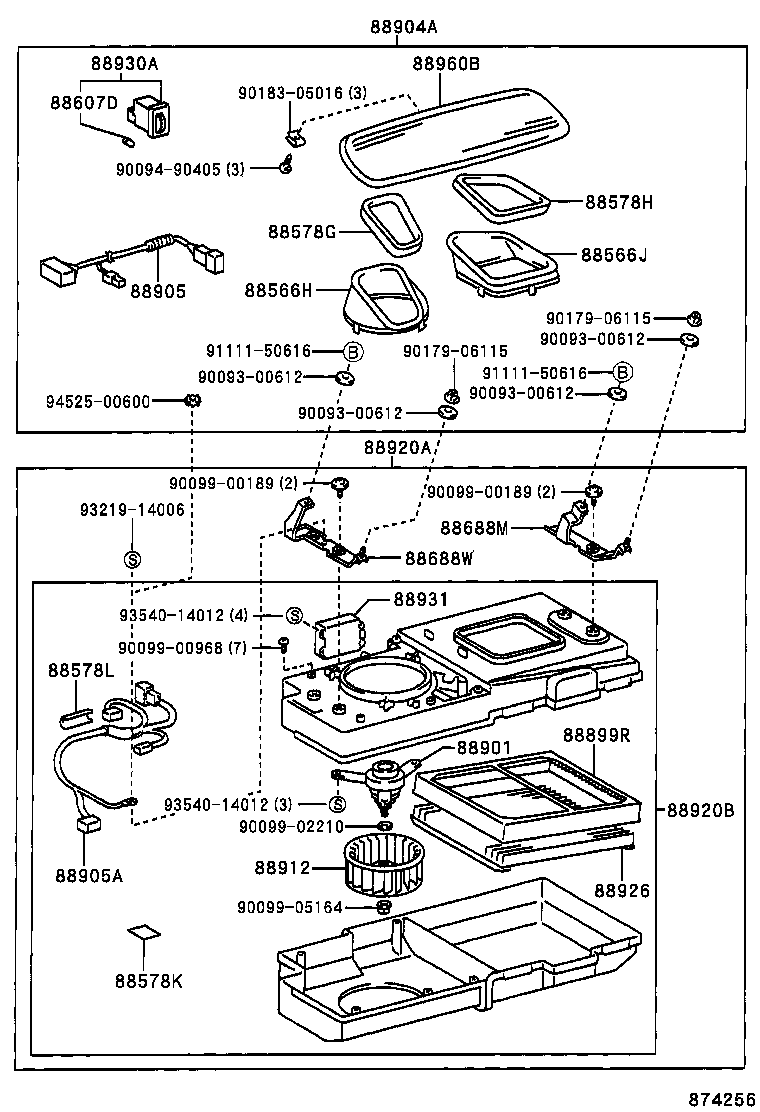

Click highlighted areas on diagram

diagram 88566H 88566J 88578G 88578H 88578K 88578L 88607D 88688M 88688W 88899R 88901 88904A 88905 88905A 88912 88920A 88920B 88926 88930A 88931 88960B 9009300612 9009300612 9009300612 9009300612 9009490405 9009900189 9009900189 9009900968 9009902210 9009905164 9017906115 9017906115 9018305016 9111150616 9111150616 9321914006 9354014012 9354014012 9452500600
Part # Description Qty Price
88566H - DUCT, AIR, NO.1
88566-51010

JCG17

 1
88566J - DUCT, AIR, NO.2
88566-51020

JCG17

 1
88578G - PACKING, AIR PURIFIER, NO.1
88578-51010

JCG17

 1
88578H - PACKING, AIR PURIFIER, NO.2
88578-51020

JCG17

 1
88578K - PACKIN, COOLER NO.1
88578-28190

JCG17

 1
88578L - PACKING, COOLER NO.2
88578-30370

JCG17

 1
88607D - LAMP SUB-ASSY, AIR PURIFIER SWITCH
90010-03005

JCG17

14V 1.8W

 1
88688M - BRACKET, AIR PURIFIER, NO.2
88688-51010

JCG17

 1
88688W - BRACKET, AIR PURIFIER, NO.1
88688-51020

JCG17

 1
88899R - FRAME, AIR PURIFIER
88899-32020

JCG17

 1
88901 - MOTOR SUB-ASSY, AIR PURIFIER
88901-32020

JCG17

 1
88904A - ACCESSORY SUB-ASSY, AIR PURIFIRE
88904-51010A0

JCG17

IVORY,TRIM0#

 1
88905 - WIRE SUB-ASSY, AIR PURIFIER, NO.1
88905-51010

JCG17

 1
88905A - WIRE SUB-ASSY, AIR PURIFIER, NO.2
88905-33030

JCG17

 1
88912 - FAN, AIR PURIFIER
88912-32140

JCG17

 1
88920A - PURIFIER ASSY, AIR
88920-51010

JCG17

 1
88920B - PURIFIER ASSY, AIR, NO.2
88920-33050

JCG17

 1
88926 - FILTER, AIR PURIFIER
88926-32030

JCG17

 1
88930A - SWITCH ASSY, AIR PURIFIER
88930-33050

JCG17

 1
88931 - SENSOR, SMOKE
88931-50030

JCG17

 1
88960B - RESISTOR ASSY, AIR PURIFIRE
88960-51010A0

JCG17

IVORY,TRIM0#

 1
Common parts
90093-00612
90094-90405
90099-00189
90099-00968
90099-02210
90099-05164
90179-06115
90183-05016
91111-50616
93219-14006
93540-14012
94525-00600
