JCG17-BEPXF (2000)

Toyota Origin

Production Aug 2000 - Apr 2001
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )

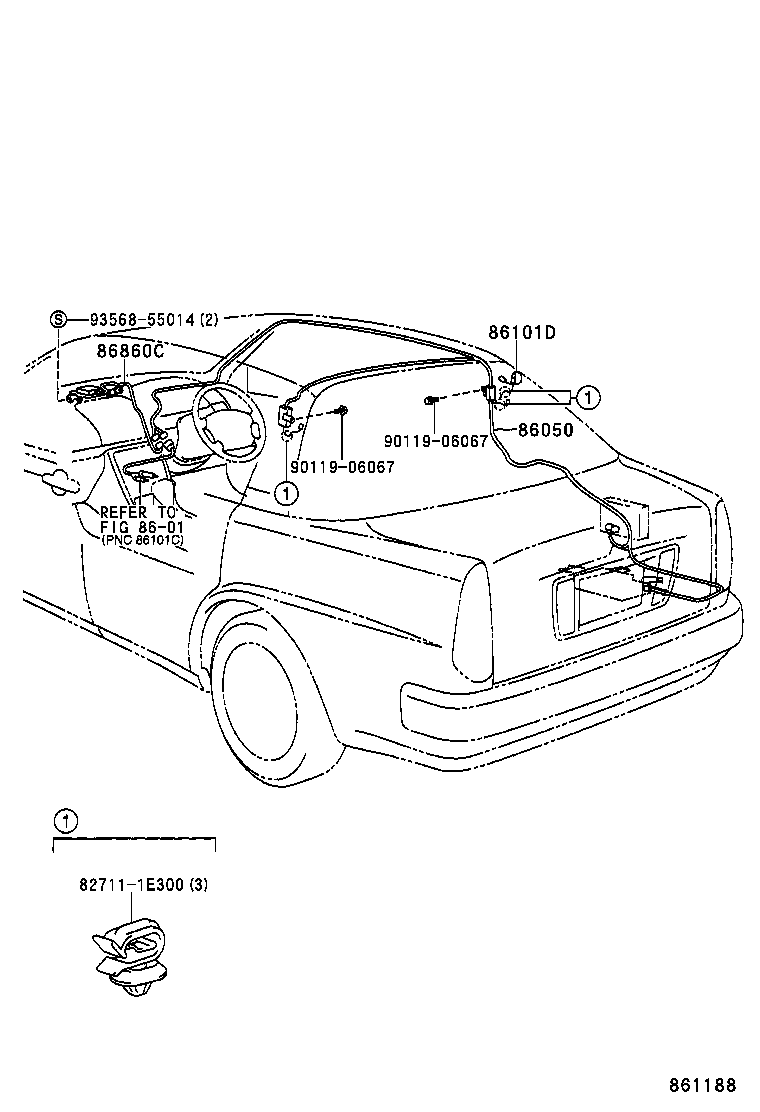

Click highlighted areas on diagram

diagram 827111E300 8601 86050 86101D 86860C 9011906067 9011906067 9356855014
Part # Description Qty Price
86050 - ANTENNA ASSY, TELEVISION
86050-51010

JCG17

 1
86101D - CORD SUB-ASSY, ANTENNA, NO.3
86101-51081

JCG17

 1
86860C - ANTENNA ASSY, NAVIGATION
86860-51020

JCG17

 1
Common parts
82711-1E300
90119-06067
93568-55014
Linked diagrams
8601
