JCG17-BEPXF (2000)
Toyota Origin
Production
Aug 2000
-
Apr 2001
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0008- )

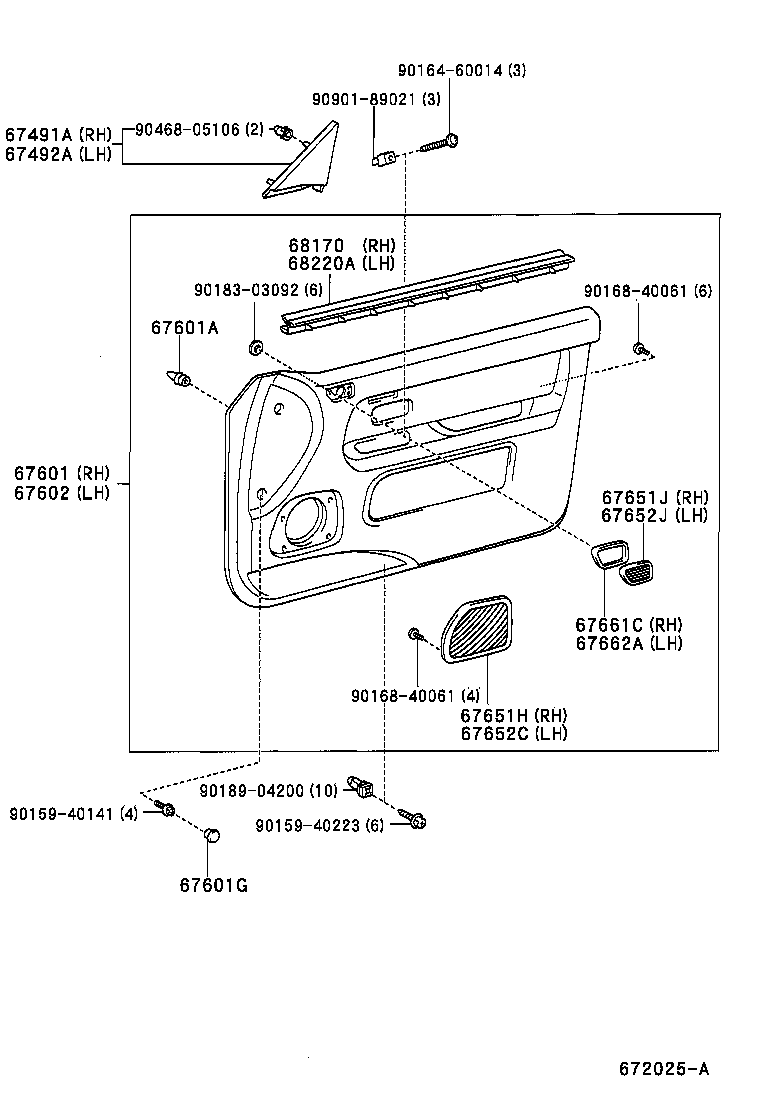

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-51010 |
JCG17 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-51010 |
JCG17 |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-51190A0 |
JCG17 IVORY,TRIM0# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
JCG17 ﾅﾁｭﾗﾙ |
2 | ||
| 90467-09203 |
JCG17 ﾚｯﾄﾞ |
4 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01800A1 |
JCG17 IVORY,TRIM0# |
4 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-51100A0 |
JCG17 IVORY,TRIM0# |
1 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67609-51010A0 |
JCG17 IVORY,TRIM0# |
1 | ||
| 67651J - GRILLE SUB-ASSY, DOOR SPEAKER, RH | ||||
| 67609-51020A0 |
JCG17 IVORY,TRIM0# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67709-51010A0 |
JCG17 IVORY,TRIM0# |
1 | ||
| 67652J - GRILLE SUB-ASSY, DOOR SPEAKER, LH | ||||
| 67709-51020A0 |
JCG17 IVORY,TRIM0# |
1 | ||
| 67661C - BASE, DOOR SPEAKER GRILLE, RH | ||||
| 67661-51010A0 |
JCG17 IVORY,TRIM0# |
1 | ||
| 67662A - BASE, DOOR SPEAKER GRILLE, LH | ||||
| 67662-51010A0 |
JCG17 IVORY,TRIM0# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-51030 |
JCG17 |
1 | ||
| 68220A - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH | ||||
| 68220-51030 |
JCG17 |
1 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90159-40223 | ||||
| 90164-60014 | ||||
| 90168-40061 | ||||
| 90183-03092 | ||||
| 90189-04200 | ||||
| 90468-05106 | ||||
| 90901-89021 | ||||
