JCG17-BEPXF (2000)

Toyota Origin

Production Aug 2000 - Apr 2001
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )

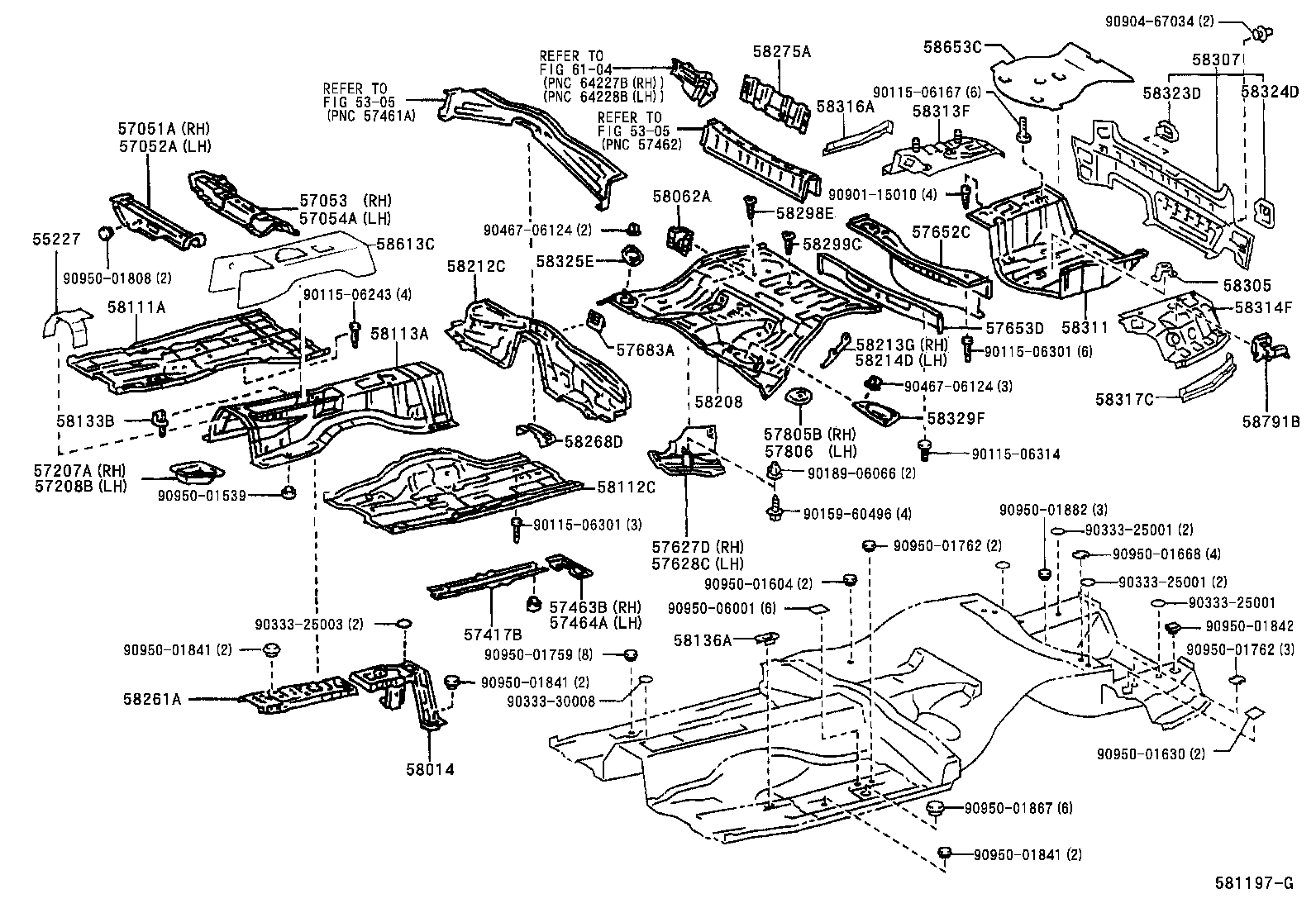

Click highlighted areas on diagram

diagram 5305 5305 55227 57051A 57052A 57053 57054A 57207A 57208B 57417B 57463B 57464A 57627D 57628C 57652C 57653D 57683A 57805B 57806 58014 58062A 58111A 58112C 58113A 58133B 58136A 58208 58212C 58213G 58214D 58261A 58268D 58275A 58298E 58299C 58305 58307 58311 58313F 58314F 58316A 58317C 58323D 58324D 58325E 58329F 58613C 58653C 58791B 6104 9011506167 9011506243 9011506301 9011506301 9011506314 9015960496 9018906066 9033325001 9033325001 9033325001 9033325003 9033330008 9046706124 9046706124 9090115010 9090467034 9095001539 9095001604 9095001630 9095001668 9095001759 9095001762 9095001762 9095001808 9095001841 9095001841 9095001841 9095001842 9095001867 9095001882 9095006001
Part # Description Qty Price
55227 - SHEET, DASH PANEL INSULATOR, NO.6
55227-51010

JCG17

 1
57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57051-51010

JCG17

 1
57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57052-51010

JCG17

 1
57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH
57053-51010

JCG17

 1
57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH
57054-51010

JCG17

 1
57207A - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH
57207-51010

JCG17

 1
57208B - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH
57208-51010

JCG17

 1
57417B - REINFORCEMENT, FRONT FLOOR UNDER
57417-51010

JCG17

 2
57463B - REINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH
57463-51010

JCG17

 1
57464A - REINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH
57464-51010

JCG17

 1
57627D - COVER, REAR FLOOR SIDE MEMBER
57627-51010

JCG17

 1
57628C - COVER, REAR FLOOR SIDE MEMBER, LH
57628-51010

JCG17

 1
57652C - MEMBER, REAR FLOOR CROSS, NO.1
57652-51010

JCG17

 1
57653D - MEMBER, REAR FLOOR CROSS, NO.2
57653-51010

JCG17

 1
57683A - BRACKET, FUEL TANK MOUNTING, NO.1
57683-51010

JCG17

 2
57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
57805-51010

JCG17

 1
57806 - REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH
57806-51010

JCG17

 1
58014 - PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER
58014-51010

JCG17

 1
58062A - BRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR
58062-30010

JCG17

 2
58111A - PAN, FRONT FLOOR, RH
58111-51010

JCG17

 1
58112C - PAN, FRONT FLOOR, LH
58112-51010

JCG17

 1
58113A - PANEL, FRONT FLOOR, CENTER
58113-51011

JCG17

 1
58133B - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58133-51010

JCG17

 1
58136A - COVER, FRONT FLOOR SERVICE HOLE
58136-51010

JCG17

 2
58208 - PAN, CENTER FLOOR
58211-51901

JCG17

 1
58212C - PAN, CENTER FLOOR, FRONT
58212-51010

JCG17

 1
58213G - REINFORCEMENT, CENTER FLOOR PANEL, NO.1 RH
58213-51011

JCG17

 1
58214D - REINFORCEMENT, CENTER FLOOR PANEL, NO.1 LH
58214-51011

JCG17

 1
58261A - COVER, TRANSMISSION
58261-51010

JCG17

 1
58268D - REINFORCEMENT, PARKING BRAKE CABLE, NO.3
58268-51011

JCG17

 1
58275A - RETAINER, REAR SEAT BACK TO CENTER FLOOR
58275-51010

JCG17

 1
58298E - BRACKET, HOT AIR INTAKE, NO.1
58298-30030

JCG17

 1
58299C - BRACKET, HOT AIR INTAKE, NO.2
58299-30010

JCG17

 1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58351-53010

JCG17

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-51020

JCG17

 1
58311 - PAN, REAR FLOOR
58311-51011

JCG17

 1
58311-51010

JCG17

 1
58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58313-51010

JCG17

 1
58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58314-51010

JCG17

 1
58316A - EXTENSION, REAR FLOOR SIDE PANEL, REAR RH
58317-51010

JCG17

 1
58317C - EXTENSION, REAR FLOOR SIDE PANEL, REAR LH
58316-51010

JCG17

 1
58323D - REINFORCEMENT, REAR BUMPER ARM SUPPORT
58323-51010

JCG17

 1
58324D - REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58324-51010

JCG17

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-30010

JCG17

 1
58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2
58329-30020

JCG17

 1
58613C - SHEET, FRONT FLOOR SILENCER, CENTER
58613-51010

JCG17

 1
58653C - SHEET, REAR FLOOR SILENCER, NO.2
58653-51010

JCG17

 1
58791B - CARRIER, JACK
58791-30030

JCG17

 1
Common parts
90115-06167
90115-06243
90115-06301
90115-06314
90159-60496
90189-06066
90333-25001
90333-25003
90333-30008
90467-06124
90901-15010
90904-67034
90950-01539
90950-01604
90950-01630
90950-01668
90950-01759
90950-01762
90950-01808
90950-01841
90950-01842
90950-01867
90950-01882
90950-06001
Linked diagrams
5305
6104
