ZCT15-ZHSGK (2000)

Toyota Opa

Production Apr 2000 - Apr 2005
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0004- )

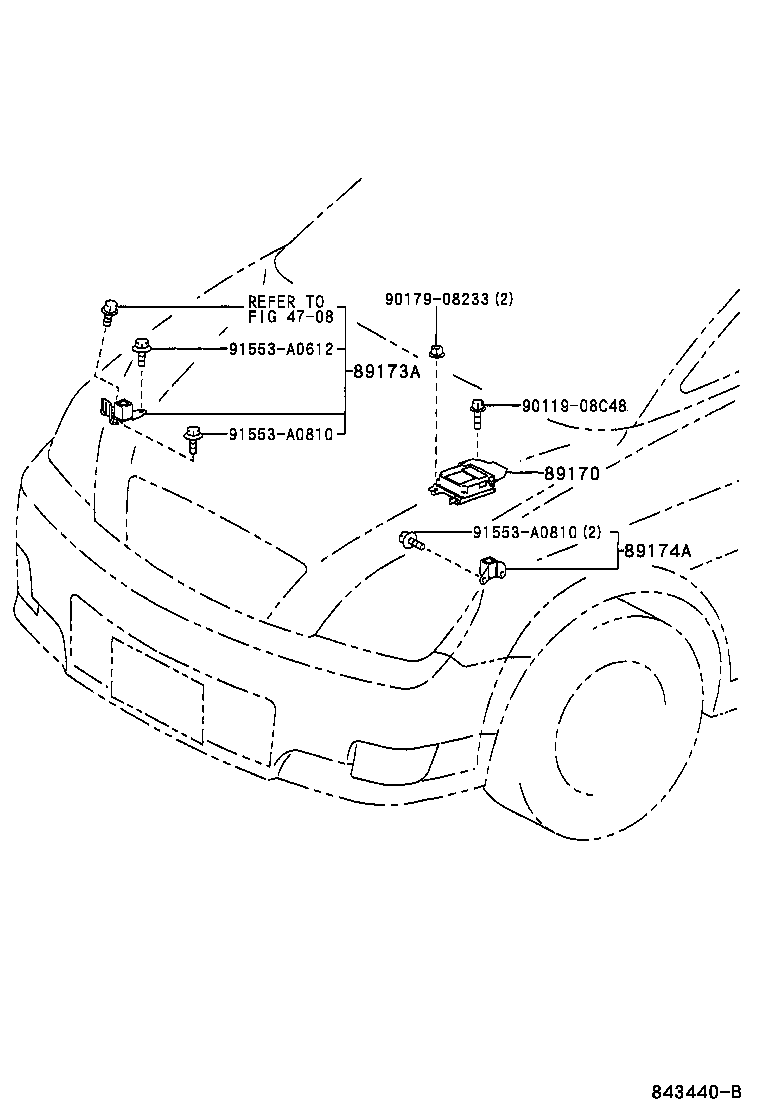

Click highlighted areas on diagram

diagram 4708 89170 89173A 89174A 9011908C48 9017908233 91553A0612 91553A0810 91553A0810
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-63010

ACT10,ZCT1#

 1
89170-63010

ACT10,ZCT1#

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-69065

ACT10,ZCT1#

 1
89173-69065

ACT10,ZCT1#

 1
89174A - SENSOR, AIR BAG, FRONT LH
89174-39155

ACT10,ZCT1#

 1
89174-69075

ACT10,ZCT1#

 1
89174-69075

ACT10,ZCT1#

 1
Common parts
90119-08C48
90179-08233
91553-A0612
91553-A0810
Linked diagrams
4708
