ZCT15-ZHSGK (2000)

Toyota Opa

Production Apr 2000 - Apr 2005
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0004- )

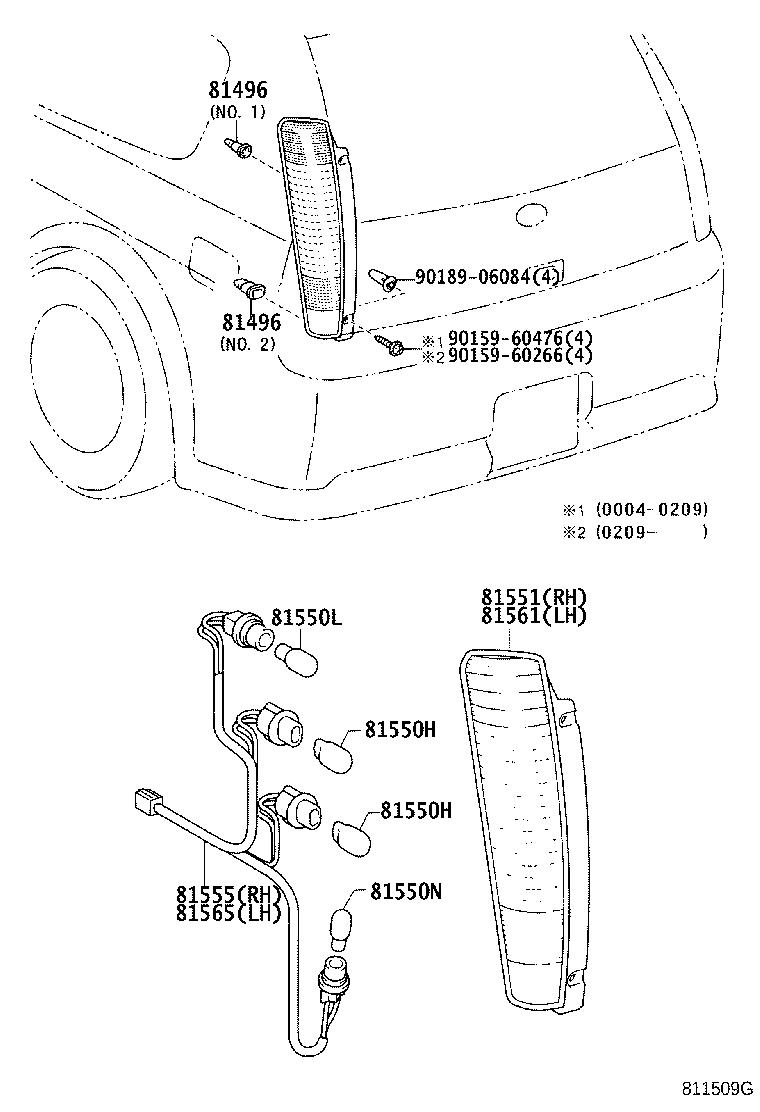

Click highlighted areas on diagram

diagram 81496 81496 81550H 81550H 81550L 81550N 81551 81555 81561 81565 9015960266 9015960476 9018906084
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-63010

ACT10,ZCT1#

NO.1

 2
81496-63020

ACT10,ZCT1#

NO.2

 2
81496-63010

ACT10,ZCT1#

NO.1

 2
81496-63020

ACT10,ZCT1#

NO.2

 2
81496 - GUIDE, REAR COMBINATION LAMP
81496-63010

ACT10,ZCT1#

NO.1

 2
81496-63020

ACT10,ZCT1#

NO.2

 2
81496-63010

ACT10,ZCT1#

NO.1

 2
81496-63020

ACT10,ZCT1#

NO.2

 2
81550H - BULB, TAIL & STOP LAMP
90981-11048

ACT10,ZCT1#

 4
90981-13044

ACT10,ZCT1#

 4
81550H - BULB, TAIL & STOP LAMP
90981-11048

ACT10,ZCT1#

 4
90981-13044

ACT10,ZCT1#

 4
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15011

ACT10,ZCT1#

 2
81550N - BULB, BACK UP LAMP
90981-11059

ACT10,ZCT1#

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-63010

ACT10,ZCT1#

 1
81551-63020

ACT10,ZCT1#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-63020

ACT10,ZCT1#

 1
81555-63010

ACT10,ZCT1#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-63010

ACT10,ZCT1#

 1
81561-63020

ACT10,ZCT1#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-63010

ACT10,ZCT1#

 1
81555-63020

ACT10,ZCT1#

 1
Common parts
90159-60266
90159-60476
90189-06084
