ZCT15-ZHSGK (2000)
Toyota Opa
(0004-0205)
ﾍﾞﾝﾁｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-63020 |
ACT10,ZCT1# ｱﾘ(ｱ-ﾑﾚｽﾄ) |
1 | ||
| 71017-63010 |
ACT10,ZCT1# |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-63010 |
ACT10,ZCT1# |
1 | ||
| 71018-63010 |
ACT10,ZCT1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-63051B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71077-63050B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71077-63080B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 71077-63031B2 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71077-63030B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71077-63090B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71077-63041B1 |
ZCT1#..I ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 71077-63070B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,RIGHT GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-63050B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71078-63041B1 |
ZCT1#..I ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 71078-63030B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71078-63051B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71078-63031B2 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71078-63031B3 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,RIGHT GRAY,TRIM1# |
1 | ||
| 71078-63051B2 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71078-63041B2 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-63030B1 |
ACT10,ZCT1#..I ***,ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71480-63050B1 |
ACT10,ZCT1#..I ***,ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71480-63031B1 |
ACT10,ZCT1#..I ***,ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71480-63041B1 |
ZCT1#..I ***,ｼ-ﾄ = TYPE C-*104,DK.GRAY,TRIM1# |
1 | ||
| 71480-63051B1 |
ACT10,ZCT1#..I ***,ｼ-ﾄ = TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-63031B1 |
ACT10,ZCT1#..I ***,ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71490-63041B1 |
ZCT1#..I ***,ｼ-ﾄ = TYPE C-*104,DK.GRAY,TRIM1# |
1 | ||
| 71490-63050B1 |
ACT10,ZCT1#..I ***,ｼ-ﾄ = TYPE D-*104,DEAK GRAY,TRIM1# |
1 | ||
| 71490-63051B1 |
ACT10,ZCT1#..I ***,ｼ-ﾄ = TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71490-63030B1 |
ACT10,ZCT1#..I ***,ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-63021B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71540-63030B0 |
ZCT1#..I ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71540-63020B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71540-63030B1 |
ZCT1#..I ｼ-ﾄ = TYPE D-*104,LT.GRAY,TRIM1# |
1 | ||
| 71540-63021B2 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,LT.GRAY,TRIM1# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-63020B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71550-63030B0 |
ZCT1#..I ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71550-63030B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,LT.GRAY,TRIM1# |
1 | ||
| 71550-63021B2 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,LT.GRAY,TRIM1# |
1 | ||
| 71550-63021B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-63010 |
ACT10,ZCT1# |
1 | ||
| 71651-63020 |
ACT10,ZCT1# ｱﾘ(ｱ-ﾑﾚｽﾄ) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-63010 |
ACT10,ZCT1# |
1 | ||
| 71652-63010 |
ACT10,ZCT1# |
1 | ||
| 71778 - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-63010B2 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1# |
1 | ||
| 71778-63010B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71778-63010B0 |
ACT10,ZCT1# DK.GRAY,TRIM1# |
1 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-63010B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71779-63010B0 |
ACT10,ZCT1# DK.GRAY,TRIM1# |
1 | ||
| 71779-63010B2 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-63010B0 |
ACT10,ZCT1# DK.GRAY,TRIM1# |
1 | ||
| 71878-63010B2 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1# |
1 | ||
| 71878-63010B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-63010B2 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1# |
1 | ||
| 71879-63010B0 |
ACT10,ZCT1# DK.GRAY,TRIM1# |
1 | ||
| 71879-63010B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010B2 |
ACT10,ZCT1# ﾛｯｸ付,DK.GRAY,TRIM1# |
1 | ||
| 71956-47010B2 |
ACT10,ZCT1#..I ﾛｯｸ無,ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71956-47010B2 |
ACT10,ZCT1# ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 71956-47010B1 |
ACT10,ZCT1# ﾛｯｸ無,ｼ-ﾄ = TYPE A OR TYPE B-*104,STONE,TRIM1# |
2 | ||
| 71970-47010B1 |
ACT10,ZCT1# ﾛｯｸ付,ｼ-ﾄ = TYPE A OR TYPE B-*104,STONE,TRIM1# |
2 | ||
| 71970-47010B2 |
ACT10,ZCT1#..I ﾛｯｸ付,ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010B2 |
ACT10,ZCT1# ﾛｯｸ付,DK.GRAY,TRIM1# |
1 | ||
| 71956-47010B2 |
ACT10,ZCT1#..I ﾛｯｸ無,ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71956-47010B2 |
ACT10,ZCT1# ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 71956-47010B1 |
ACT10,ZCT1# ﾛｯｸ無,ｼ-ﾄ = TYPE A OR TYPE B-*104,STONE,TRIM1# |
2 | ||
| 71970-47010B1 |
ACT10,ZCT1# ﾛｯｸ付,ｼ-ﾄ = TYPE A OR TYPE B-*104,STONE,TRIM1# |
2 | ||
| 71970-47010B2 |
ACT10,ZCT1#..I ﾛｯｸ付,ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010B2 |
ACT10,ZCT1# ﾛｯｸ付,DK.GRAY,TRIM1# |
1 | ||
| 71956-47010B2 |
ACT10,ZCT1#..I ﾛｯｸ無,ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71956-47010B2 |
ACT10,ZCT1# ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 71956-47010B1 |
ACT10,ZCT1# ﾛｯｸ無,ｼ-ﾄ = TYPE A OR TYPE B-*104,STONE,TRIM1# |
2 | ||
| 71970-47010B1 |
ACT10,ZCT1# ﾛｯｸ付,ｼ-ﾄ = TYPE A OR TYPE B-*104,STONE,TRIM1# |
2 | ||
| 71970-47010B2 |
ACT10,ZCT1#..I ﾛｯｸ付,ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010B2 |
ACT10,ZCT1# ﾛｯｸ付,DK.GRAY,TRIM1# |
1 | ||
| 71956-47010B2 |
ACT10,ZCT1#..I ﾛｯｸ無,ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71956-47010B2 |
ACT10,ZCT1# ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 71956-47010B1 |
ACT10,ZCT1# ﾛｯｸ無,ｼ-ﾄ = TYPE A OR TYPE B-*104,STONE,TRIM1# |
2 | ||
| 71970-47010B1 |
ACT10,ZCT1# ﾛｯｸ付,ｼ-ﾄ = TYPE A OR TYPE B-*104,STONE,TRIM1# |
2 | ||
| 71970-47010B2 |
ACT10,ZCT1#..I ﾛｯｸ付,ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-63020B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71940-63030B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71940-63021B2 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71940-63021B3 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,LT.GRAY,TRIM1# |
2 | ||
| 71940-63030B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DARK GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-63020B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71940-63030B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71940-63021B2 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71940-63021B3 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,LT.GRAY,TRIM1# |
2 | ||
| 71940-63030B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DARK GRAY,TRIM1# |
2 | ||
| 72123C - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-63010B0 |
ACT10,ZCT1# LT.GRAY,TRIM1# |
1 | ||
| 72123-63010B0 |
ACT10,ZCT1# LT.GRAY,TRIM1# |
1 | ||
| 72124C - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-63010B0 |
ACT10,ZCT1# LT.GRAY,TRIM1# |
1 | ||
| 72124-63010B0 |
ACT10,ZCT1# LT.GRAY,TRIM1# |
1 | ||
| 72345E - PIPE, RECLINING CONNECTING | ||||
| 72345-63020 |
ACT10,ZCT1# 左側 |
1 | ||
| 72345-63010 |
ACT10,ZCT1# 右側 |
1 | ||
| 72345-63020 |
ACT10,ZCT1# 左側 |
1 | ||
| 72345-63010 |
ACT10,ZCT1# 右側 |
1 | ||
| 72345E - PIPE, RECLINING CONNECTING | ||||
| 72345-63020 |
ACT10,ZCT1# 左側 |
1 | ||
| 72345-63010 |
ACT10,ZCT1# 右側 |
1 | ||
| 72345-63020 |
ACT10,ZCT1# 左側 |
1 | ||
| 72345-63010 |
ACT10,ZCT1# 右側 |
1 | ||
| 72510G - ADJUSTER ASSY, REAR RECLINING SEAT, OUTER RH | ||||
| 72510-63010 |
ACT10,ZCT1# |
1 | ||
| 72510-63010 |
ACT10,ZCT1# |
1 | ||
| 72520G - ADJUSTER ASSY, REAR RECLINING SEAT, OUTER LH | ||||
| 72520-63010 |
ACT10,ZCT1# |
1 | ||
| 72520-63010 |
ACT10,ZCT1# |
1 | ||
| 72530C - ADJUSTER ASSY, REAR RECLINING SEAT, INNER RH | ||||
| 72530-63010 |
ACT10,ZCT1# |
1 | ||
| 72530-63010 |
ACT10,ZCT1# |
1 | ||
| 72540C - ADJUSTER ASSY, REAR RECLINING SEAT, INNER LH | ||||
| 72540-63010 |
ACT10,ZCT1# |
1 | ||
| 72540-63010 |
ACT10,ZCT1# |
1 | ||
| 72637A - HANDLE, REAR SEAT LOCK | ||||
| 72637-13050B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1#,右側 |
1 | ||
| 72638-13020B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1#,左側 |
1 | ||
| 72637-13050B1 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1#,右側 |
1 | ||
| 72637-13050B0 |
ACT10,ZCT1# DK.GRAY,TRIM1#,右側 |
1 | ||
| 72638-13020B0 |
ACT10,ZCT1# DK.GRAY,TRIM1#,左側 |
1 | ||
| 72638-13020B1 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1#,左側 |
1 | ||
| 72637-52010B1 |
ACT10,ZCT1# DK.GRAY,TRIM1# |
2 | ||
| 72637A - HANDLE, REAR SEAT LOCK | ||||
| 72637-13050B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1#,右側 |
1 | ||
| 72638-13020B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1#,左側 |
1 | ||
| 72637-13050B1 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1#,右側 |
1 | ||
| 72637-13050B0 |
ACT10,ZCT1# DK.GRAY,TRIM1#,右側 |
1 | ||
| 72638-13020B0 |
ACT10,ZCT1# DK.GRAY,TRIM1#,左側 |
1 | ||
| 72638-13020B1 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1#,左側 |
1 | ||
| 72637-52010B1 |
ACT10,ZCT1# DK.GRAY,TRIM1# |
2 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-63010 |
ACT10,ZCT1# |
2 | ||
| 72749-63010 |
ACT10,ZCT1# |
2 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-63010 |
ACT10,ZCT1# |
2 | ||
| 72749-63010 |
ACT10,ZCT1# |
2 | ||
| Common parts | ||||
| 90119-08C37 | ||||
| 90119-10886 | ||||
| 90167-40044 | ||||
| 91511-B0812 | ||||
| 91515-81025 | ||||
| Linked diagrams | ||||
| 6701 | ||||

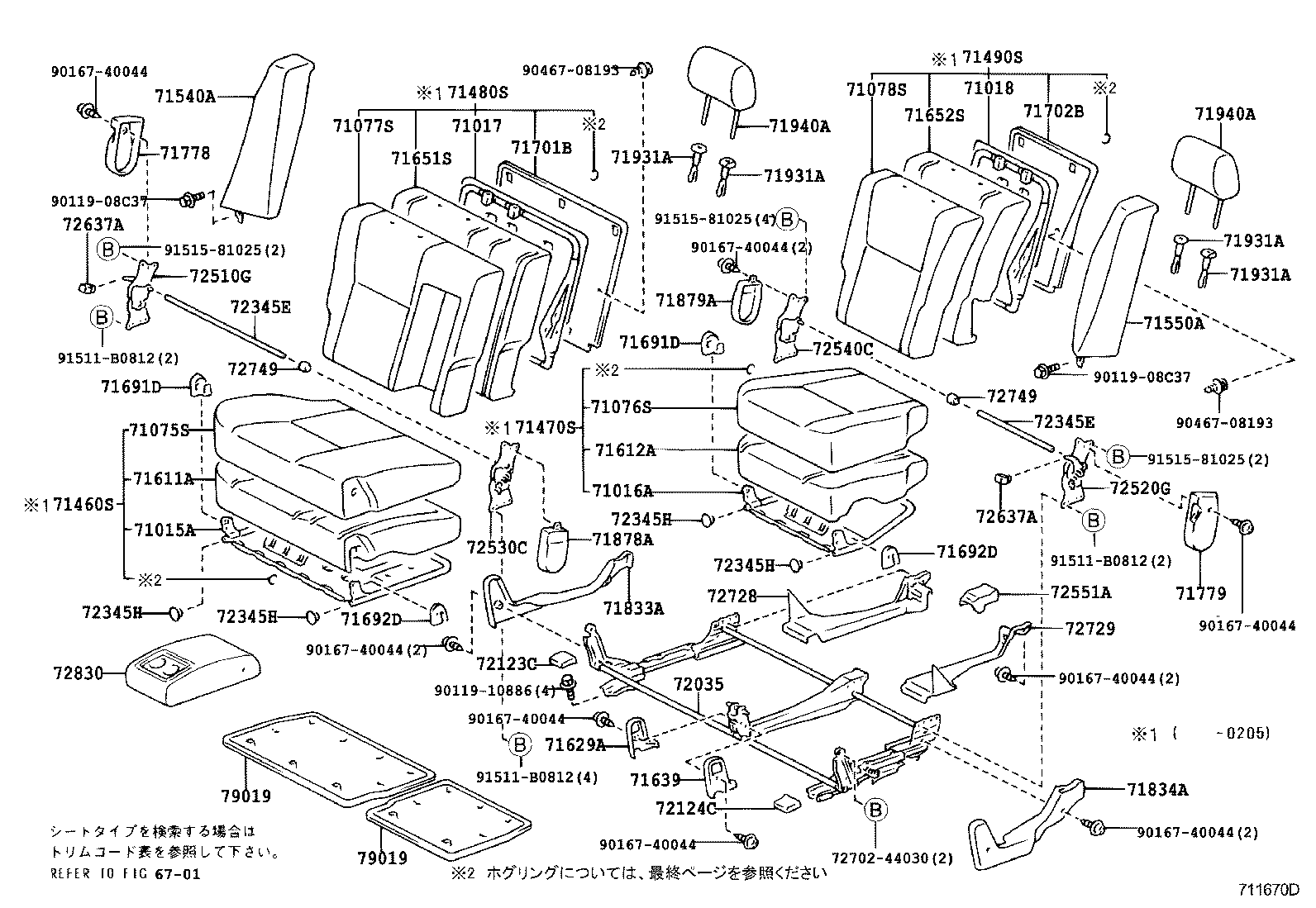

(0004- )
ｾﾊﾟﾚ-ﾄｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-63020 |
ACT10,ZCT1# |
1 | ||
| 71015-63020 |
ACT10,ZCT1# |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-63020 |
ACT10,ZCT1# |
1 | ||
| 71016-63020 |
ACT10,ZCT1# |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-63020 |
ACT10,ZCT1# ｱﾘ(ｱ-ﾑﾚｽﾄ) |
1 | ||
| 71017-63010 |
ACT10,ZCT1# |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-63010 |
ACT10,ZCT1# |
1 | ||
| 71018-63010 |
ACT10,ZCT1# |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-63051B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71075-63031B2 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71075-63090B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71075-63080B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 71075-63050B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71075-63041B1 |
ZCT1#..I ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 71075-63070B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,RIGHT GRAY,TRIM1# |
1 | ||
| 71075-63030B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-63020B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71076-63040B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71076-63031B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 71076-63041B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71076-63021B3 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,RIGHT GRAY,TRIM1# |
1 | ||
| 71076-63031B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 71076-63021B2 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71076-63041B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-63051B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71077-63050B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71077-63080B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 71077-63031B2 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71077-63030B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71077-63090B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71077-63041B1 |
ZCT1#..I ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 71077-63070B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,RIGHT GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-63050B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71078-63041B1 |
ZCT1#..I ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 71078-63030B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71078-63051B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71078-63031B2 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71078-63031B3 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,RIGHT GRAY,TRIM1# |
1 | ||
| 71078-63051B2 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71078-63041B2 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71460-63050B1 |
ACT10,ZCT1#..I ***,ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71460-63031B1 |
ACT10,ZCT1#..I ***,ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71460-63030B1 |
ACT10,ZCT1#..I ***,ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71460-63051B1 |
ACT10,ZCT1#..I ***,ｼ-ﾄ = TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71460-63041B1 |
ZCT1#..I ***,ｼ-ﾄ = TYPE C-*104,DK.GRAY,TRIM1# |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-63020B1 |
ACT10,ZCT1#..I ***,ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71470-63021B1 |
ACT10,ZCT1#..I ***,ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71470-63040B1 |
ACT10,ZCT1#..I ***,ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71470-63031B1 |
ZCT1#..I ***,ｼ-ﾄ = TYPE C-*104,DK.GRAY,TRIM1# |
1 | ||
| 71470-63041B1 |
ACT10,ZCT1#..I ***,ｼ-ﾄ = TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-63030B1 |
ACT10,ZCT1#..I ***,ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71480-63050B1 |
ACT10,ZCT1#..I ***,ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71480-63031B1 |
ACT10,ZCT1#..I ***,ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71480-63041B1 |
ZCT1#..I ***,ｼ-ﾄ = TYPE C-*104,DK.GRAY,TRIM1# |
1 | ||
| 71480-63051B1 |
ACT10,ZCT1#..I ***,ｼ-ﾄ = TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-63031B1 |
ACT10,ZCT1#..I ***,ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71490-63041B1 |
ZCT1#..I ***,ｼ-ﾄ = TYPE C-*104,DK.GRAY,TRIM1# |
1 | ||
| 71490-63050B1 |
ACT10,ZCT1#..I ***,ｼ-ﾄ = TYPE D-*104,DEAK GRAY,TRIM1# |
1 | ||
| 71490-63051B1 |
ACT10,ZCT1#..I ***,ｼ-ﾄ = TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71490-63030B1 |
ACT10,ZCT1#..I ***,ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-63021B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71540-63030B0 |
ZCT1#..I ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71540-63020B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71540-63030B1 |
ZCT1#..I ｼ-ﾄ = TYPE D-*104,LT.GRAY,TRIM1# |
1 | ||
| 71540-63021B2 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,LT.GRAY,TRIM1# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-63020B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71550-63030B0 |
ZCT1#..I ｼ-ﾄ = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71550-63030B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,LT.GRAY,TRIM1# |
1 | ||
| 71550-63021B2 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,LT.GRAY,TRIM1# |
1 | ||
| 71550-63021B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-63020 |
ACT10,ZCT1# |
1 | ||
| 71611-63020 |
ACT10,ZCT1# |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-63010 |
ACT10,ZCT1# |
1 | ||
| 71612-63010 |
ACT10,ZCT1# |
1 | ||
| 71629A - COVER, REAR SEAT CUSHION HINGE, RH | ||||
| 71629-63010B1 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1# |
1 | ||
| 71629-63010B0 |
ACT10,ZCT1# DK.GRAY,TRIM1# |
1 | ||
| 71629-63010B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71639 - COVER, REAR SEAT CUSHION HINGE, LH | ||||
| 71639-63010B1 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1# |
1 | ||
| 71639-63010B0 |
ACT10,ZCT1# DK.GRAY,TRIM1# |
1 | ||
| 71639-63010B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-63010 |
ACT10,ZCT1# |
1 | ||
| 71651-63020 |
ACT10,ZCT1# ｱﾘ(ｱ-ﾑﾚｽﾄ) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-63010 |
ACT10,ZCT1# |
1 | ||
| 71652-63010 |
ACT10,ZCT1# |
1 | ||
| 71691D - COVER, REAR SEAT CUSHION HINGE, UPPER RH | ||||
| 71691-44010 |
ACT10,ZCT1# |
1 | ||
| 71691-44010 |
ACT10,ZCT1# |
1 | ||
| 71691D - COVER, REAR SEAT CUSHION HINGE, UPPER RH | ||||
| 71691-44010 |
ACT10,ZCT1# |
1 | ||
| 71691-44010 |
ACT10,ZCT1# |
1 | ||
| 71692D - COVER, REAR SEAT CUSHION HINGE, UPPER LH | ||||
| 71692-44010 |
ACT10,ZCT1# |
1 | ||
| 71692-44010 |
ACT10,ZCT1# |
1 | ||
| 71692D - COVER, REAR SEAT CUSHION HINGE, UPPER LH | ||||
| 71692-44010 |
ACT10,ZCT1# |
1 | ||
| 71692-44010 |
ACT10,ZCT1# |
1 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-63011B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71701-63010B0 |
ACT10,ZCT1# DARK GRAY,TRIM1# |
1 | ||
| 71701-63011B2 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1# |
1 | ||
| 71701-63011B1 |
ACT10,ZCT1# DARK GRAY,TRIM1# |
1 | ||
| 71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71702-63011B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71702-63011B1 |
ACT10,ZCT1# DARK GRAY,TRIM1# |
1 | ||
| 71702-63010B0 |
ACT10,ZCT1# DARK GRAY,TRIM1# |
1 | ||
| 71702-63011B2 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1# |
1 | ||
| 71778 - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-63010B2 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1# |
1 | ||
| 71778-63010B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71778-63010B0 |
ACT10,ZCT1# DK.GRAY,TRIM1# |
1 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-63010B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71779-63010B0 |
ACT10,ZCT1# DK.GRAY,TRIM1# |
1 | ||
| 71779-63010B2 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1# |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-63020B1 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1# |
1 | ||
| 71833-63020B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71833-63020B0 |
ACT10,ZCT1# ｾﾊﾟﾚ-ﾄｼ-ﾄﾀｲﾌﾟ,DK.GRAY,TRIM1# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-63020B1 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1# |
1 | ||
| 71834-63020B0 |
ACT10,ZCT1# ｾﾊﾟﾚ-ﾄｼ-ﾄﾀｲﾌﾟ,DK.GRAY,TRIM1# |
1 | ||
| 71834-63020B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-63010B0 |
ACT10,ZCT1# DK.GRAY,TRIM1# |
1 | ||
| 71878-63010B2 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1# |
1 | ||
| 71878-63010B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-63010B2 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1# |
1 | ||
| 71879-63010B0 |
ACT10,ZCT1# DK.GRAY,TRIM1# |
1 | ||
| 71879-63010B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010B2 |
ACT10,ZCT1# ﾛｯｸ付,DK.GRAY,TRIM1# |
1 | ||
| 71956-47010B2 |
ACT10,ZCT1#..I ﾛｯｸ無,ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71956-47010B2 |
ACT10,ZCT1# ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 71956-47010B1 |
ACT10,ZCT1# ﾛｯｸ無,ｼ-ﾄ = TYPE A OR TYPE B-*104,STONE,TRIM1# |
2 | ||
| 71970-47010B1 |
ACT10,ZCT1# ﾛｯｸ付,ｼ-ﾄ = TYPE A OR TYPE B-*104,STONE,TRIM1# |
2 | ||
| 71970-47010B2 |
ACT10,ZCT1#..I ﾛｯｸ付,ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010B2 |
ACT10,ZCT1# ﾛｯｸ付,DK.GRAY,TRIM1# |
1 | ||
| 71956-47010B2 |
ACT10,ZCT1#..I ﾛｯｸ無,ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71956-47010B2 |
ACT10,ZCT1# ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 71956-47010B1 |
ACT10,ZCT1# ﾛｯｸ無,ｼ-ﾄ = TYPE A OR TYPE B-*104,STONE,TRIM1# |
2 | ||
| 71970-47010B1 |
ACT10,ZCT1# ﾛｯｸ付,ｼ-ﾄ = TYPE A OR TYPE B-*104,STONE,TRIM1# |
2 | ||
| 71970-47010B2 |
ACT10,ZCT1#..I ﾛｯｸ付,ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010B2 |
ACT10,ZCT1# ﾛｯｸ付,DK.GRAY,TRIM1# |
1 | ||
| 71956-47010B2 |
ACT10,ZCT1#..I ﾛｯｸ無,ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71956-47010B2 |
ACT10,ZCT1# ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 71956-47010B1 |
ACT10,ZCT1# ﾛｯｸ無,ｼ-ﾄ = TYPE A OR TYPE B-*104,STONE,TRIM1# |
2 | ||
| 71970-47010B1 |
ACT10,ZCT1# ﾛｯｸ付,ｼ-ﾄ = TYPE A OR TYPE B-*104,STONE,TRIM1# |
2 | ||
| 71970-47010B2 |
ACT10,ZCT1#..I ﾛｯｸ付,ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010B2 |
ACT10,ZCT1# ﾛｯｸ付,DK.GRAY,TRIM1# |
1 | ||
| 71956-47010B2 |
ACT10,ZCT1#..I ﾛｯｸ無,ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71956-47010B2 |
ACT10,ZCT1# ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 71956-47010B1 |
ACT10,ZCT1# ﾛｯｸ無,ｼ-ﾄ = TYPE A OR TYPE B-*104,STONE,TRIM1# |
2 | ||
| 71970-47010B1 |
ACT10,ZCT1# ﾛｯｸ付,ｼ-ﾄ = TYPE A OR TYPE B-*104,STONE,TRIM1# |
2 | ||
| 71970-47010B2 |
ACT10,ZCT1#..I ﾛｯｸ付,ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-63020B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71940-63030B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71940-63021B2 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71940-63021B3 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,LT.GRAY,TRIM1# |
2 | ||
| 71940-63030B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DARK GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-63020B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71940-63030B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71940-63021B2 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 71940-63021B3 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,LT.GRAY,TRIM1# |
2 | ||
| 71940-63030B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DARK GRAY,TRIM1# |
2 | ||
| 72035 - ADJUSTER SUB-ASSY, REAR NO.1 SEAT | ||||
| 72035-63020 |
ACT10,ZCT1# |
1 | ||
| 72035-63021 |
ACT10,ZCT1# |
1 | ||
| 72035-63021 |
ACT10,ZCT1# |
1 | ||
| 72123C - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-63010B0 |
ACT10,ZCT1# LT.GRAY,TRIM1# |
1 | ||
| 72123-63010B0 |
ACT10,ZCT1# LT.GRAY,TRIM1# |
1 | ||
| 72124C - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-63010B0 |
ACT10,ZCT1# LT.GRAY,TRIM1# |
1 | ||
| 72124-63010B0 |
ACT10,ZCT1# LT.GRAY,TRIM1# |
1 | ||
| 72345E - PIPE, RECLINING CONNECTING | ||||
| 72345-63020 |
ACT10,ZCT1# 左側 |
1 | ||
| 72345-63010 |
ACT10,ZCT1# 右側 |
1 | ||
| 72345-63020 |
ACT10,ZCT1# 左側 |
1 | ||
| 72345-63010 |
ACT10,ZCT1# 右側 |
1 | ||
| 72345E - PIPE, RECLINING CONNECTING | ||||
| 72345-63020 |
ACT10,ZCT1# 左側 |
1 | ||
| 72345-63010 |
ACT10,ZCT1# 右側 |
1 | ||
| 72345-63020 |
ACT10,ZCT1# 左側 |
1 | ||
| 72345-63010 |
ACT10,ZCT1# 右側 |
1 | ||
| 72345H - CAP, SEAT STAND FRAME | ||||
| 72345-44110 |
ACT10,ZCT1# |
4 | ||
| 72345-44110 |
ACT10,ZCT1# |
4 | ||
| 72345H - CAP, SEAT STAND FRAME | ||||
| 72345-44110 |
ACT10,ZCT1# |
4 | ||
| 72345-44110 |
ACT10,ZCT1# |
4 | ||
| 72345H - CAP, SEAT STAND FRAME | ||||
| 72345-44110 |
ACT10,ZCT1# |
4 | ||
| 72345-44110 |
ACT10,ZCT1# |
4 | ||
| 72345H - CAP, SEAT STAND FRAME | ||||
| 72345-44110 |
ACT10,ZCT1# |
4 | ||
| 72345-44110 |
ACT10,ZCT1# |
4 | ||
| 72510G - ADJUSTER ASSY, REAR RECLINING SEAT, OUTER RH | ||||
| 72510-63010 |
ACT10,ZCT1# |
1 | ||
| 72510-63010 |
ACT10,ZCT1# |
1 | ||
| 72520G - ADJUSTER ASSY, REAR RECLINING SEAT, OUTER LH | ||||
| 72520-63010 |
ACT10,ZCT1# |
1 | ||
| 72520-63010 |
ACT10,ZCT1# |
1 | ||
| 72530C - ADJUSTER ASSY, REAR RECLINING SEAT, INNER RH | ||||
| 72530-63010 |
ACT10,ZCT1# |
1 | ||
| 72530-63010 |
ACT10,ZCT1# |
1 | ||
| 72540C - ADJUSTER ASSY, REAR RECLINING SEAT, INNER LH | ||||
| 72540-63010 |
ACT10,ZCT1# |
1 | ||
| 72540-63010 |
ACT10,ZCT1# |
1 | ||
| 72551A - COVER, RECLINING HINGE | ||||
| 72551-63010B1 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1# |
1 | ||
| 72551-63010B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 72551-63010B0 |
ACT10,ZCT1# DK.GRAY,TRIM1# |
1 | ||
| 72637A - HANDLE, REAR SEAT LOCK | ||||
| 72637-13050B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1#,右側 |
1 | ||
| 72638-13020B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1#,左側 |
1 | ||
| 72637-13050B1 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1#,右側 |
1 | ||
| 72637-13050B0 |
ACT10,ZCT1# DK.GRAY,TRIM1#,右側 |
1 | ||
| 72638-13020B0 |
ACT10,ZCT1# DK.GRAY,TRIM1#,左側 |
1 | ||
| 72638-13020B1 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1#,左側 |
1 | ||
| 72637-52010B1 |
ACT10,ZCT1# DK.GRAY,TRIM1# |
2 | ||
| 72637A - HANDLE, REAR SEAT LOCK | ||||
| 72637-13050B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1#,右側 |
1 | ||
| 72638-13020B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1#,左側 |
1 | ||
| 72637-13050B1 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1#,右側 |
1 | ||
| 72637-13050B0 |
ACT10,ZCT1# DK.GRAY,TRIM1#,右側 |
1 | ||
| 72638-13020B0 |
ACT10,ZCT1# DK.GRAY,TRIM1#,左側 |
1 | ||
| 72638-13020B1 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1#,左側 |
1 | ||
| 72637-52010B1 |
ACT10,ZCT1# DK.GRAY,TRIM1# |
2 | ||
| 72728 - PROTECTOR, REAR SEAT RECLINING, INNER RH | ||||
| 72728-63010B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 72728-63010B1 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1# |
1 | ||
| 72728-63010B0 |
ACT10,ZCT1# DK.GRAY,TRIM1# |
1 | ||
| 72729 - PROTECTOR, REAR SEAT RECLINING, INNER LH | ||||
| 72729-63010B0 |
ACT10,ZCT1# DK.GRAY,TRIM1# |
1 | ||
| 72729-63010B1 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1# |
1 | ||
| 72729-63010B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-63010 |
ACT10,ZCT1# |
2 | ||
| 72749-63010 |
ACT10,ZCT1# |
2 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-63010 |
ACT10,ZCT1# |
2 | ||
| 72749-63010 |
ACT10,ZCT1# |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-63020B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE A-*104,RIGHT GRAY,TRIM1# |
1 | ||
| 72830-63030B0 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 79019 - BOARD SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79019-63010B0 |
ACT10,ZCT1# DARK GRAY,TRIM1#,右側 |
1 | ||
| 79019-63020B0 |
ACT10,ZCT1# DARK GRAY,TRIM1#,左側 |
1 | ||
| 79019-63011B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DARK GRAY,TRIM1#,右側 |
1 | ||
| 79019-63021B2 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1#,左側 |
1 | ||
| 79019-63021B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DARK GRAY,TRIM1#,左側 |
1 | ||
| 79019-63021B1 |
ACT10,ZCT1# DARK GRAY,TRIM1#,左側 |
1 | ||
| 79019-63011B1 |
ACT10,ZCT1# DARK GRAY,TRIM1#,右側 |
1 | ||
| 79019-63011B2 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1#,右側 |
1 | ||
| 79019 - BOARD SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79019-63010B0 |
ACT10,ZCT1# DARK GRAY,TRIM1#,右側 |
1 | ||
| 79019-63020B0 |
ACT10,ZCT1# DARK GRAY,TRIM1#,左側 |
1 | ||
| 79019-63011B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DARK GRAY,TRIM1#,右側 |
1 | ||
| 79019-63021B2 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1#,左側 |
1 | ||
| 79019-63021B1 |
ACT10,ZCT1#..I ｼ-ﾄ = TYPE C OR TYPE D-*104,DARK GRAY,TRIM1#,左側 |
1 | ||
| 79019-63021B1 |
ACT10,ZCT1# DARK GRAY,TRIM1#,左側 |
1 | ||
| 79019-63011B1 |
ACT10,ZCT1# DARK GRAY,TRIM1#,右側 |
1 | ||
| 79019-63011B2 |
ACT10,ZCT1# ｼ-ﾄ = TYPE A OR TYPE B-*104,LT.GRAY,TRIM1#,右側 |
1 | ||
| Common parts | ||||
| 72702-44030 | ||||
| 90119-08C37 | ||||
| 90119-10886 | ||||
| 90167-40044 | ||||
| 90467-08193 | ||||
| 91511-B0812 | ||||
| 91515-81025 | ||||
| Linked diagrams | ||||
| 6701 | ||||
(0004- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
