ZCT15-ZHSGK (2000)
Toyota Opa

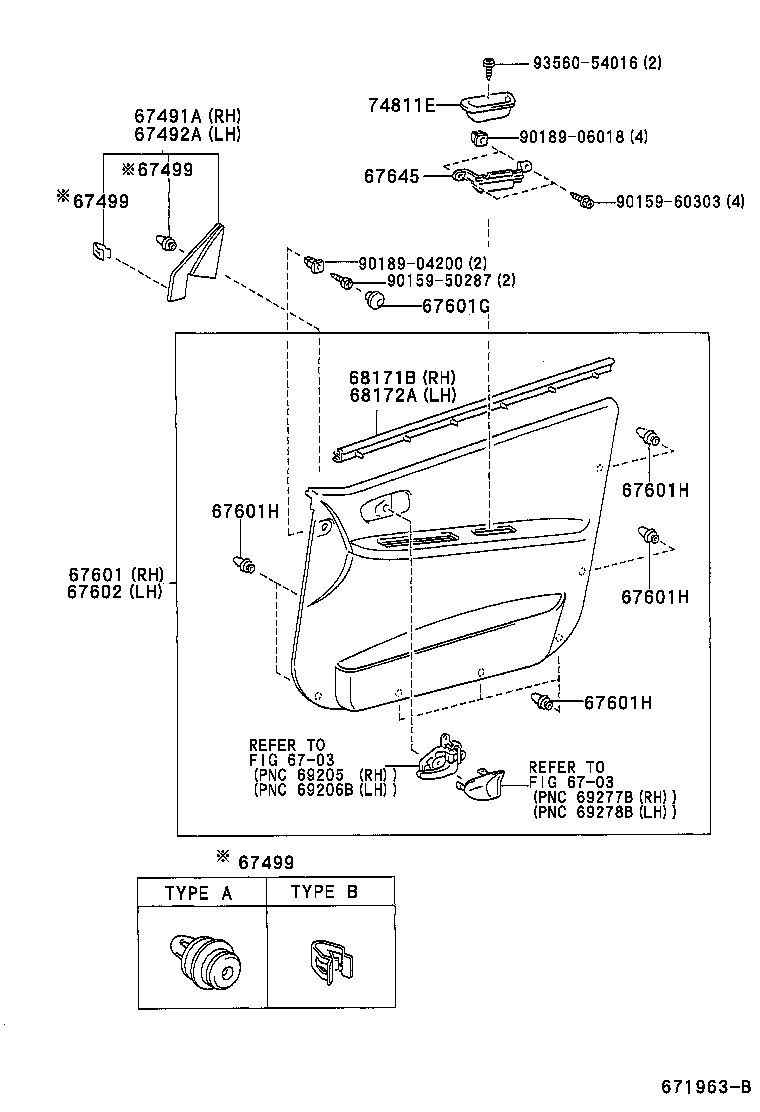

ILLUST NO. 1 OF 3(0004-0205)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-63020 |
ACT10,ZCT1# ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 67491-63020 |
ACT10,ZCT1# ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-63020 |
ACT10,ZCT1# ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 67492-63020 |
ACT10,ZCT1# ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-44010 |
ACT10,ZCT1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 67771-44010 |
ACT10,ZCT1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-44010 |
ACT10,ZCT1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 67771-44010 |
ACT10,ZCT1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-44010 |
ACT10,ZCT1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 67771-44010 |
ACT10,ZCT1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-63020B0 |
ACT10,ZCT1#..I ﾄﾘﾑ = TYPE C-*104,DK.GRAY,TRIM1# |
1 | ||
| 67610-63010B0 |
ACT10,ZCT1#..I ﾄﾘﾑ = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 67610-63031B1 |
ACT10,ZCT1# ﾄﾘﾑ = TYPE A OR TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 67610-63040B0 |
ACT10,ZCT1# LT.GRAY,TRIM1# |
1 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01800B0 |
ACT10,ZCT1# SHADOW GRAY,TRIM1# |
2 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-32120 |
ACT10,ZCT1# ｸﾞﾘｰﾝ |
2 | ||
| 90467-10188 |
ACT10,ZCT1# ﾌﾞﾙｰ |
2 | ||
| 90467-09203 |
ACT10,ZCT1# ﾌﾞﾙｰ |
2 | ||
| 67771-28020 |
ACT10,ZCT1# ﾚｯﾄﾞ |
12 | ||
| 90467-10161 |
ACT10,ZCT1# ﾅﾁｭﾗﾙ |
12 | ||
| 90467-09206 |
ACT10,ZCT1# ﾅﾁｭﾗﾙ |
12 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-32120 |
ACT10,ZCT1# ｸﾞﾘｰﾝ |
2 | ||
| 90467-10188 |
ACT10,ZCT1# ﾌﾞﾙｰ |
2 | ||
| 90467-09203 |
ACT10,ZCT1# ﾌﾞﾙｰ |
2 | ||
| 67771-28020 |
ACT10,ZCT1# ﾚｯﾄﾞ |
12 | ||
| 90467-10161 |
ACT10,ZCT1# ﾅﾁｭﾗﾙ |
12 | ||
| 90467-09206 |
ACT10,ZCT1# ﾅﾁｭﾗﾙ |
12 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-32120 |
ACT10,ZCT1# ｸﾞﾘｰﾝ |
2 | ||
| 90467-10188 |
ACT10,ZCT1# ﾌﾞﾙｰ |
2 | ||
| 90467-09203 |
ACT10,ZCT1# ﾌﾞﾙｰ |
2 | ||
| 67771-28020 |
ACT10,ZCT1# ﾚｯﾄﾞ |
12 | ||
| 90467-10161 |
ACT10,ZCT1# ﾅﾁｭﾗﾙ |
12 | ||
| 90467-09206 |
ACT10,ZCT1# ﾅﾁｭﾗﾙ |
12 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-32120 |
ACT10,ZCT1# ｸﾞﾘｰﾝ |
2 | ||
| 90467-10188 |
ACT10,ZCT1# ﾌﾞﾙｰ |
2 | ||
| 90467-09203 |
ACT10,ZCT1# ﾌﾞﾙｰ |
2 | ||
| 67771-28020 |
ACT10,ZCT1# ﾚｯﾄﾞ |
12 | ||
| 90467-10161 |
ACT10,ZCT1# ﾅﾁｭﾗﾙ |
12 | ||
| 90467-09206 |
ACT10,ZCT1# ﾅﾁｭﾗﾙ |
12 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-63040B0 |
ACT10,ZCT1# LT.GRAY,TRIM1# |
1 | ||
| 67620-63020B0 |
ACT10,ZCT1#..I ﾄﾘﾑ = TYPE C-*104,DK.GRAY,TRIM1# |
1 | ||
| 67620-63031B1 |
ACT10,ZCT1# ﾄﾘﾑ = TYPE A OR TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 67620-63010B0 |
ACT10,ZCT1#..I ﾄﾘﾑ = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 67645 - BRACKET, FRONT DOOR ARMREST SET, RH | ||||
| 67645-63020 |
ACT10,ZCT1# |
2 | ||
| 67645-63010 |
ACT10,ZCT1# |
2 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-63010 |
ACT10,ZCT1# |
1 | ||
| 68171-63010 |
ACT10,ZCT1# |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-63010 |
ACT10,ZCT1# |
1 | ||
| 68172-63010 |
ACT10,ZCT1# |
1 | ||
| 74811E - HANDLE, DOOR PULL | ||||
| 74811-12050B1 |
ACT10,ZCT1# DK.GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90159-50287 | ||||
| 90159-60303 | ||||
| 90189-04200 | ||||
| 90189-06018 | ||||
| 93560-54016 | ||||
| Linked diagrams | ||||
| 6703 | ||||

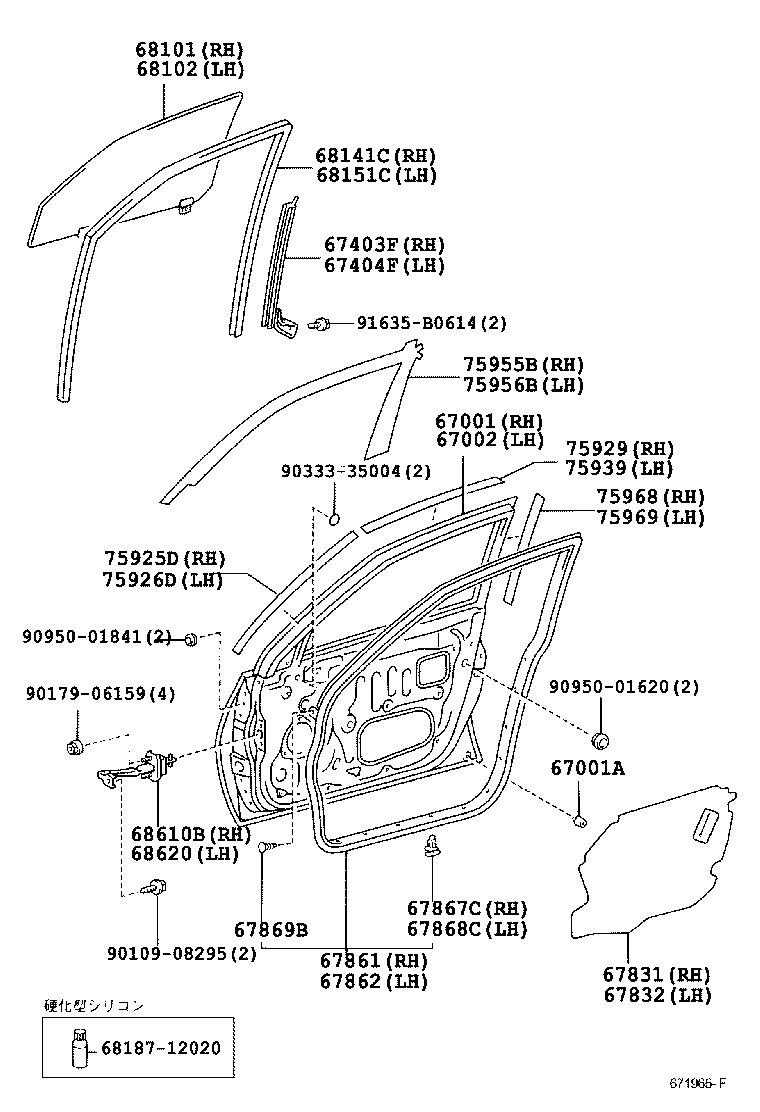

ILLUST NO. 2 OF 3(0004- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-63010 |
ACT10,ZCT1# |
1 | ||
| 67001-63010 |
ACT10,ZCT1# |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-07032 |
ACT10,ZCT1# |
4 | ||
| 90541-07032 |
ACT10,ZCT1# |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-63010 |
ACT10,ZCT1# |
1 | ||
| 67002-63010 |
ACT10,ZCT1# |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-63010 |
ACT10,ZCT1# |
1 | ||
| 67403-63010 |
ACT10,ZCT1# |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-63010 |
ACT10,ZCT1# |
1 | ||
| 67404-63010 |
ACT10,ZCT1# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-63010 |
ACT10,ZCT1# |
1 | ||
| 67831-63010 |
ACT10,ZCT1# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-63010 |
ACT10,ZCT1# |
1 | ||
| 67832-63010 |
ACT10,ZCT1# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-63010 |
ACT10,ZCT1# |
1 | ||
| 67861-63010 |
ACT10,ZCT1# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-63010 |
ACT10,ZCT1# |
1 | ||
| 67862-63010 |
ACT10,ZCT1# |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ACT10,ZCT1# |
17 | ||
| 67867-12150 |
ACT10,ZCT1# |
17 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ACT10,ZCT1# |
17 | ||
| 67867-12150 |
ACT10,ZCT1# |
17 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20030 |
ACT10,ZCT1# |
2 | ||
| 67869-20030 |
ACT10,ZCT1# |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-63010 |
ACT10,ZCT1# *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-63020 |
ACT10,ZCT1# *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ,ｱﾘ(ﾊﾂｽｲ ｶｺｳ) |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-63010 |
ACT10,ZCT1# *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-63030 |
ACT10,ZCT1# *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ,ｱﾘ(ﾊﾂｽｲ ｶｺｳ) |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-63020 |
ACT10,ZCT1# |
1 | ||
| 68141-63010 |
ACT10,ZCT1# |
1 | ||
| 68141-63011 |
ACT10,ZCT1# |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-63011 |
ACT10,ZCT1# |
1 | ||
| 68151-63020 |
ACT10,ZCT1# |
1 | ||
| 68151-63010 |
ACT10,ZCT1# |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-63010 |
ACT10,ZCT1# |
1 | ||
| 68610-63010 |
ACT10,ZCT1# |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-63010 |
ACT10,ZCT1# |
1 | ||
| 68620-63010 |
ACT10,ZCT1# |
1 | ||
| 75925D - TAPE, BLACK OUT, INNER FRONT RH | ||||
| 75925-63010 |
ACT10,ZCT1# |
1 | ||
| 75926D - TAPE, BLACK OUT, INNER FRONT LH | ||||
| 75926-63010 |
ACT10,ZCT1# |
1 | ||
| 75929 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH | ||||
| 75929-63010 |
ACT10,ZCT1# |
1 | ||
| 75939 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH | ||||
| 75939-63010 |
ACT10,ZCT1# |
1 | ||
| 75955B - TAPE, BLACK OUT FRONT DOOR, OUTER UPPER RH | ||||
| 75955-63010 |
ACT10,ZCT1# |
1 | ||
| 75956B - TAPE, BLACK OUT FRONT DOOR, OUTER UPPER LH | ||||
| 75956-63010 |
ACT10,ZCT1# |
1 | ||
| 75968 - TAPE, BLACK OUT FRONT DOOR, INNER REAR RH | ||||
| 75968-63010 |
ACT10,ZCT1# |
1 | ||
| 75969 - TAPE, BLACK OUT FRONT DOOR, INNER REAR LH | ||||
| 75969-63010 |
ACT10,ZCT1# |
1 | ||
| Common parts | ||||
| 68187-12020 | ||||
| 90109-08295 | ||||
| 90179-06159 | ||||
| 90333-35004 | ||||
| 90950-01620 | ||||
| 90950-01841 | ||||
| 91635-B0614 | ||||
ILLUST NO. 3 OF 3(0004- )
| Part # | Description | Qty | Price |
|---|

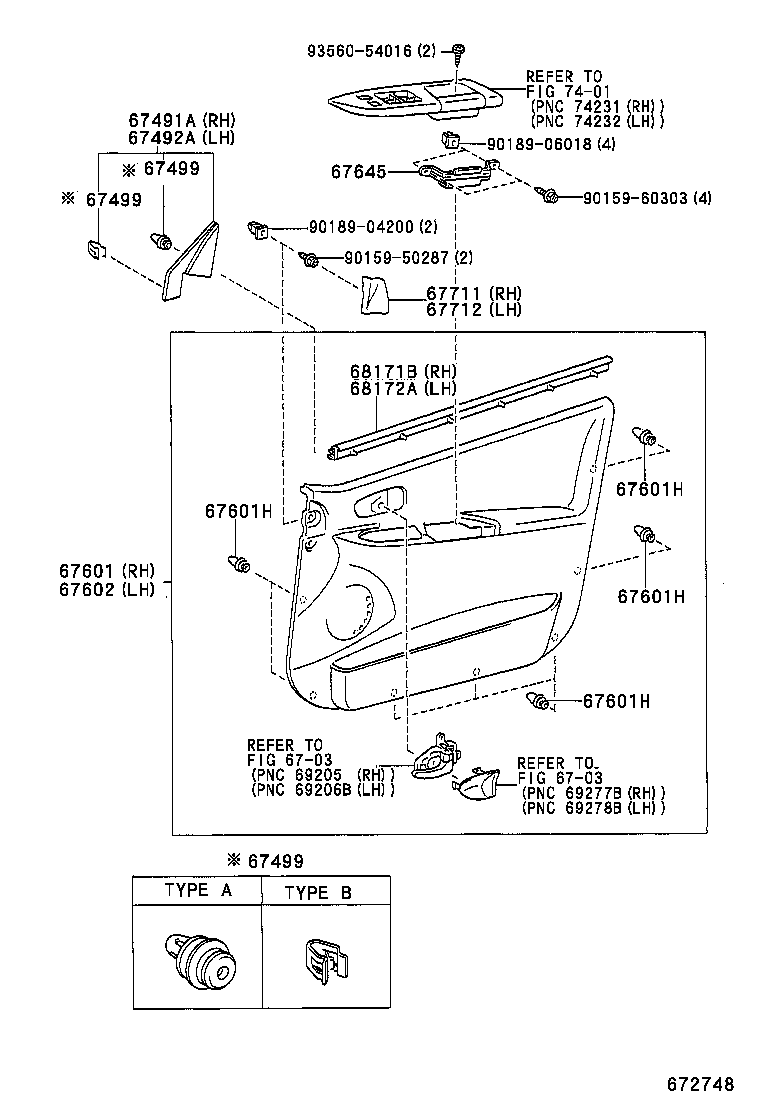

ILLUST NO. 1 OF 3(0205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-63020 |
ACT10,ZCT1# ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 67491-63020 |
ACT10,ZCT1# ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-63020 |
ACT10,ZCT1# ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 67492-63020 |
ACT10,ZCT1# ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-44010 |
ACT10,ZCT1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 67771-44010 |
ACT10,ZCT1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-44010 |
ACT10,ZCT1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 67771-44010 |
ACT10,ZCT1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-44010 |
ACT10,ZCT1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 67771-44010 |
ACT10,ZCT1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-63020B0 |
ACT10,ZCT1#..I ﾄﾘﾑ = TYPE C-*104,DK.GRAY,TRIM1# |
1 | ||
| 67610-63010B0 |
ACT10,ZCT1#..I ﾄﾘﾑ = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 67610-63031B1 |
ACT10,ZCT1# ﾄﾘﾑ = TYPE A OR TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 67610-63040B0 |
ACT10,ZCT1# LT.GRAY,TRIM1# |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-32120 |
ACT10,ZCT1# ｸﾞﾘｰﾝ |
2 | ||
| 90467-10188 |
ACT10,ZCT1# ﾌﾞﾙｰ |
2 | ||
| 90467-09203 |
ACT10,ZCT1# ﾌﾞﾙｰ |
2 | ||
| 67771-28020 |
ACT10,ZCT1# ﾚｯﾄﾞ |
12 | ||
| 90467-10161 |
ACT10,ZCT1# ﾅﾁｭﾗﾙ |
12 | ||
| 90467-09206 |
ACT10,ZCT1# ﾅﾁｭﾗﾙ |
12 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-32120 |
ACT10,ZCT1# ｸﾞﾘｰﾝ |
2 | ||
| 90467-10188 |
ACT10,ZCT1# ﾌﾞﾙｰ |
2 | ||
| 90467-09203 |
ACT10,ZCT1# ﾌﾞﾙｰ |
2 | ||
| 67771-28020 |
ACT10,ZCT1# ﾚｯﾄﾞ |
12 | ||
| 90467-10161 |
ACT10,ZCT1# ﾅﾁｭﾗﾙ |
12 | ||
| 90467-09206 |
ACT10,ZCT1# ﾅﾁｭﾗﾙ |
12 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-32120 |
ACT10,ZCT1# ｸﾞﾘｰﾝ |
2 | ||
| 90467-10188 |
ACT10,ZCT1# ﾌﾞﾙｰ |
2 | ||
| 90467-09203 |
ACT10,ZCT1# ﾌﾞﾙｰ |
2 | ||
| 67771-28020 |
ACT10,ZCT1# ﾚｯﾄﾞ |
12 | ||
| 90467-10161 |
ACT10,ZCT1# ﾅﾁｭﾗﾙ |
12 | ||
| 90467-09206 |
ACT10,ZCT1# ﾅﾁｭﾗﾙ |
12 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-32120 |
ACT10,ZCT1# ｸﾞﾘｰﾝ |
2 | ||
| 90467-10188 |
ACT10,ZCT1# ﾌﾞﾙｰ |
2 | ||
| 90467-09203 |
ACT10,ZCT1# ﾌﾞﾙｰ |
2 | ||
| 67771-28020 |
ACT10,ZCT1# ﾚｯﾄﾞ |
12 | ||
| 90467-10161 |
ACT10,ZCT1# ﾅﾁｭﾗﾙ |
12 | ||
| 90467-09206 |
ACT10,ZCT1# ﾅﾁｭﾗﾙ |
12 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-63040B0 |
ACT10,ZCT1# LT.GRAY,TRIM1# |
1 | ||
| 67620-63020B0 |
ACT10,ZCT1#..I ﾄﾘﾑ = TYPE C-*104,DK.GRAY,TRIM1# |
1 | ||
| 67620-63031B1 |
ACT10,ZCT1# ﾄﾘﾑ = TYPE A OR TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 67620-63010B0 |
ACT10,ZCT1#..I ﾄﾘﾑ = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 67645 - BRACKET, FRONT DOOR ARMREST SET, RH | ||||
| 67645-63020 |
ACT10,ZCT1# |
2 | ||
| 67645-63010 |
ACT10,ZCT1# |
2 | ||
| 67711 - COVER, FRONT DOOR TRIM, RH | ||||
| 67711-63020B0 |
ACT10,ZCT1# DK.GRAY,TRIM1# |
1 | ||
| 67712 - COVER, FRONT DOOR TRIM, LH | ||||
| 67712-63020B0 |
ACT10,ZCT1# DK.GRAY,TRIM1# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-63010 |
ACT10,ZCT1# |
1 | ||
| 68171-63010 |
ACT10,ZCT1# |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-63010 |
ACT10,ZCT1# |
1 | ||
| 68172-63010 |
ACT10,ZCT1# |
1 | ||
| Common parts | ||||
| 90159-50287 | ||||
| 90159-60303 | ||||
| 90189-04200 | ||||
| 90189-06018 | ||||
| 93560-54016 | ||||
| Linked diagrams | ||||
| 6703 | ||||
| 7401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
