ZCT15-ZHSEK (2000)

Toyota Opa

Production Apr 2000 - Apr 2005
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

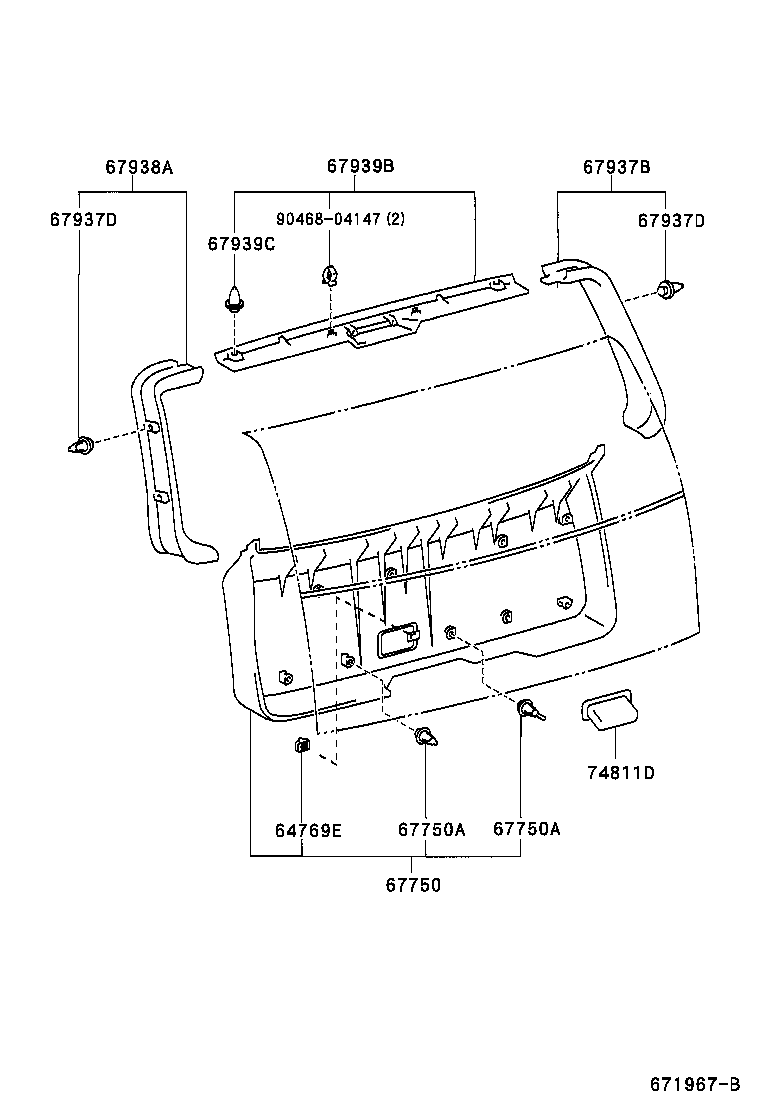

ILLUST NO. 1 OF 2(0004- )

Click highlighted areas on diagram

diagram 64769E 67750 67750A 67750A 67937B 67937D 67937D 67938A 67939B 67939C 74811D 9046804147
Part # Description Qty Price
64769E - KNOB, JACK COVER
64769-20010B4

ACT10,ZCT1#

ﾄﾞｱﾄﾘﾑ=TYPE A OR TYPE B-*104,LT.GRAY,TRIM1#

 1
64769-20010B2

ACT10,ZCT1#

DK.GRAY,TRIM1#

 1
67750 - BOARD ASSY, BACK DOOR TRIM
67750-63010B0

ACT10,ZCT1#

DARK GRAY,TRIM1#

 1
67750-63010B1

ACT10,ZCT1#

ﾄﾞｱﾄﾘﾑ=TYPE A OR TYPE B-*104,LT.GRAY,TRIM1#

 1
67750A - CLIP(FOR BACK DOOR TRIM)
90467-10151

ACT10,ZCT1#

ﾌﾞﾙｰ

 1
67771-12050

ACT10,ZCT1#

ﾚｯﾄﾞ

 10
67771-12050

ACT10,ZCT1#

ﾚｯﾄﾞ

 10
90467-10151

ACT10,ZCT1#

ﾌﾞﾙｰ

 1
67750A - CLIP(FOR BACK DOOR TRIM)
90467-10151

ACT10,ZCT1#

ﾌﾞﾙｰ

 1
67771-12050

ACT10,ZCT1#

ﾚｯﾄﾞ

 10
67771-12050

ACT10,ZCT1#

ﾚｯﾄﾞ

 10
90467-10151

ACT10,ZCT1#

ﾌﾞﾙｰ

 1
67937B - GARNISH, BACK DOOR SIDE, RH
67937-63010B1

ACT10,ZCT1#

LT. GRAY,TRIM1#

 1
67937-63010B0

ACT10,ZCT1#

LT. GRAY,TRIM1#

 1
67937D - RETAINER, DOOR TRIM
67771-30070

ACT10,ZCT1#

 4
67771-30070

ACT10,ZCT1#

 4
67937D - RETAINER, DOOR TRIM
67771-30070

ACT10,ZCT1#

 4
67771-30070

ACT10,ZCT1#

 4
67938A - GARNISH, BACK DOOR SIDE, LH
67938-63010B0

ACT10,ZCT1#

LT. GRAY,TRIM1#

 1
67938-63010B1

ACT10,ZCT1#

LT. GRAY,TRIM1#

 1
67939B - GARNISH, BACK DOOR, CENTER
67939-63010B0

ACT10,ZCT1#

LT. GRAY,TRIM1#

 1
67939-63010B1

ACT10,ZCT1#

LT. GRAY,TRIM1#

 1
67939C - CLIP(FOR BACK DOOR CENTER GARNISH)
67771-35010

ACT10,ZCT1#

 4
67771-35010

ACT10,ZCT1#

 4
74811D - HANDLE, DOOR PULL
74811-13010C0

ACT10,ZCT1#

BLACK,TRIM1#

 1
74811-13010C0

ACT10,ZCT1#

BLACK,TRIM1#

 1
Common parts
90468-04147

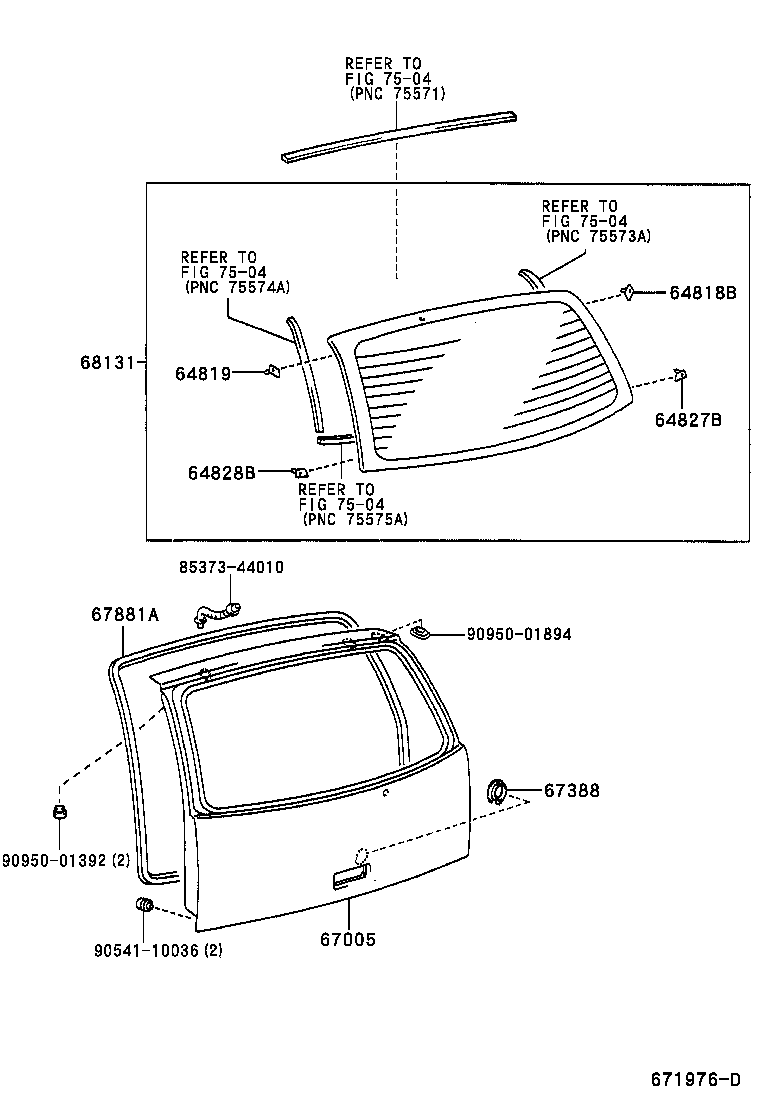

ILLUST NO. 2 OF 2(0004- )

Click highlighted areas on diagram

diagram 64818B 64819 64827B 64828B 67005 67388 67881A 68131 7504 7504 7504 7504 8537344010 9054110036 9095001392 9095001894
Part # Description Qty Price
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-63010

ACT10,ZCT1#

 1
64818-63010

ACT10,ZCT1#

 1
64819 - SPACER, BACK WINDOW GLASS, NO.2
64819-63010

ACT10,ZCT1#

 1
64819-63010

ACT10,ZCT1#

 1
64827B - CLIP, BACK WINDOW GLASS, RH
64827-63010

ACT10,ZCT1#

 1
64827-63010

ACT10,ZCT1#

 1
64828B - CLIP, BACK WINDOW GLASS, LH
64828-63010

ACT10,ZCT1#

 1
64828-63010

ACT10,ZCT1#

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-63030

ACT10,ZCT1#

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ & ﾘﾔ ﾜｲﾊﾟ)

 1
67005-63011

ZCT1#..A

 1
67005-63021

ACT10,ZCT1#

ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
67005-63020

ACT10,ZCT1#..A

ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
67005-63010

ACT10,ZCT1#..A

 1
67005-63021

ACT10,ZCT1#

ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
67005-63011

ACT10,ZCT1#..A

 1
67388 - PROTECTOR, BACK DOOR EDGE
67388-63010

ACT10,ZCT1#

 1
67388-63010

ACT10,ZCT1#

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-63010

ACT10,ZCT1#

 1
67881-63010

ACT10,ZCT1#

 1
68131 - GLASS, BACK DOOR
68105-63010

ACT10,ZCT1#..A

*EHT,厚さ=3.1,ｸﾞﾘｰﾝ

 1
68105-63901

ACT10,ZCT1#

*EHT,厚さ=3.1,ﾌﾟﾗｲﾊﾞｼｰ,ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
68105-63902

ACT10,ZCT1#

*EHT,厚さ=3.1,ﾌﾟﾗｲﾊﾞｼｰ,ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
68105-63902

ACT10,ZCT1#

*EHT,厚さ=3.1,ﾌﾟﾗｲﾊﾞｼｰ,ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
68105-63904

ACT10,ZCT1#

*EHT,厚さ=3.1,ﾌﾟﾗｲﾊﾞｼｰ,ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ & ﾘﾔ ﾜｲﾊﾟ)

 1
68105-63900

ACT10,ZCT1#..A

*EHT,厚さ=3.1,ｸﾞﾘｰﾝ,ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
68105-63010

ZCT1#..A

*EHT,厚さ=3.1,ｸﾞﾘｰﾝ

 1
68105-63905

ACT10,ZCT1#

*EHT,厚さ=3.1,ﾌﾟﾗｲﾊﾞｼｰ,ｱﾘ(ﾃﾚﾋﾞ ｱﾝﾃﾅ & ﾘﾔ ｽﾎﾟｲﾗ & ﾘﾔ ﾜｲﾊﾟ)

 1
Common parts
85373-44010
90541-10036
90950-01392
90950-01894
Linked diagrams
7504
