ZCT15-ZHSEK (2000)

Toyota Opa

Production Apr 2000 - Apr 2005
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0004-0205)

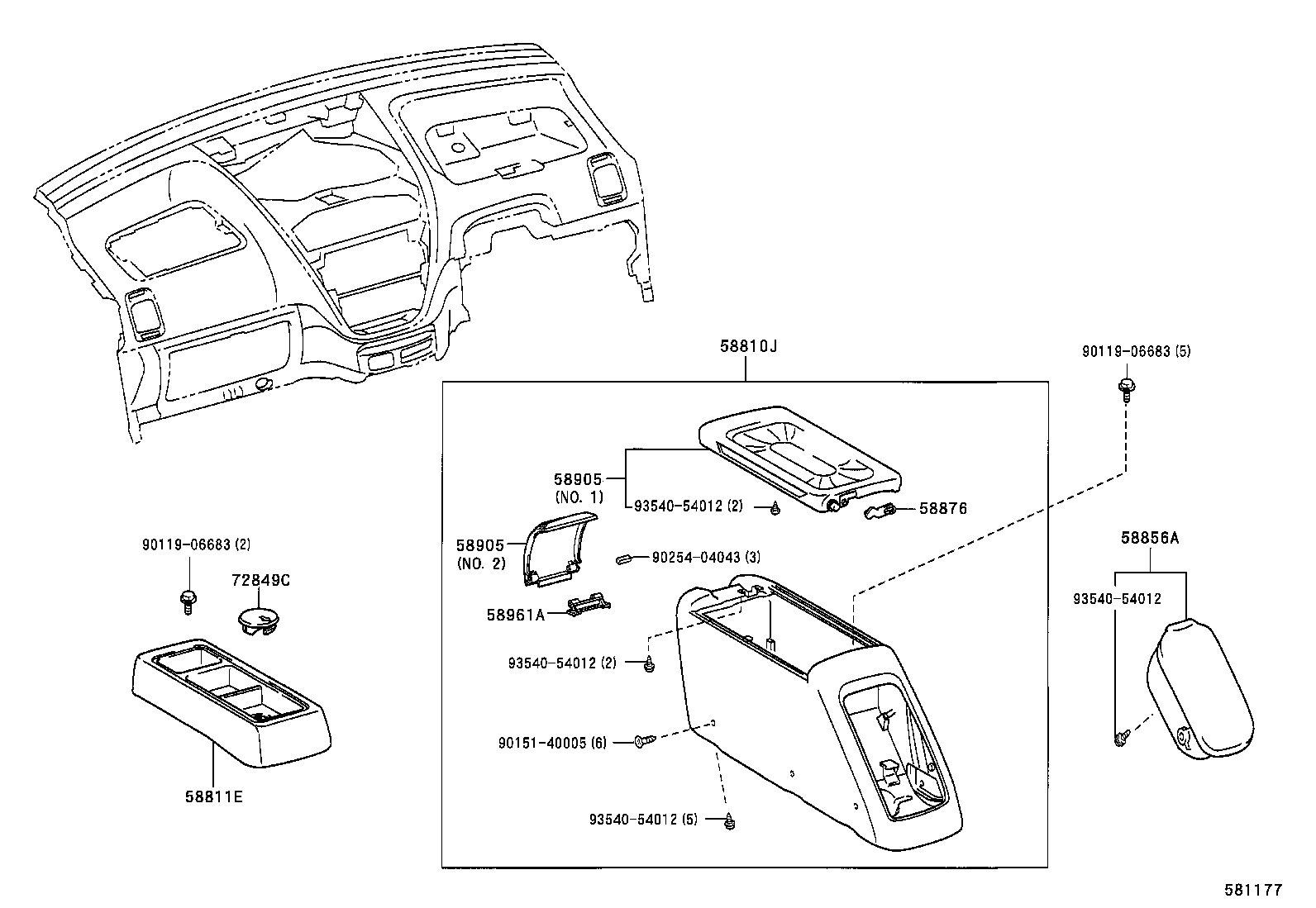

Click highlighted areas on diagram

diagram 58810J 58811E 58856A 58876 58905 58905 58961A 72849C 9011906683 9011906683 9015140005 9025404043 9354054012 9354054012 9354054012 9354054012
Part # Description Qty Price
58810J - BOX ASSY, CONSOLE
58810-63010B0

ACT10,ZCT1#

LT.GRAY,TRIM1#

 1
58811E - BOX, CONSOLE, UPPER
58811-63020B0

ACT10,ZCT1#..A

LT.GRAY,TRIM1#

 1
58811-63030B0

ACT10,ZCT1#

LT.GRAY,TRIM1#

 1
58856A - HOLDER, CONSOLE BOX
58805-63010B0

ACT10,ZCT1#

LT.GRAY,TRIM1#

 1
58876 - ARM, CONSOLE UPPER PANEL
58876-63010

ACT10,ZCT1#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58951-63020B0

ACT10,ZCT1#

LT.GRAY,TRIM1#,NO.2

 1
58905-63010B0

ACT10,ZCT1#

LT.GRAY,TRIM1#,NO.1

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58951-63020B0

ACT10,ZCT1#

LT.GRAY,TRIM1#,NO.2

 1
58905-63010B0

ACT10,ZCT1#

LT.GRAY,TRIM1#,NO.1

 1
58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE
58961-63010B0

ACT10,ZCT1#

LT.GRAY,TRIM1#

 1
72849C - CAP, SEAT ARMREST, NO.2
72849-44010B1

ACT10,ZCT1#..A

LT.GRAY,TRIM1#

 1
Common parts
90119-06683
90151-40005
90254-04043
93540-54012

(0205- )

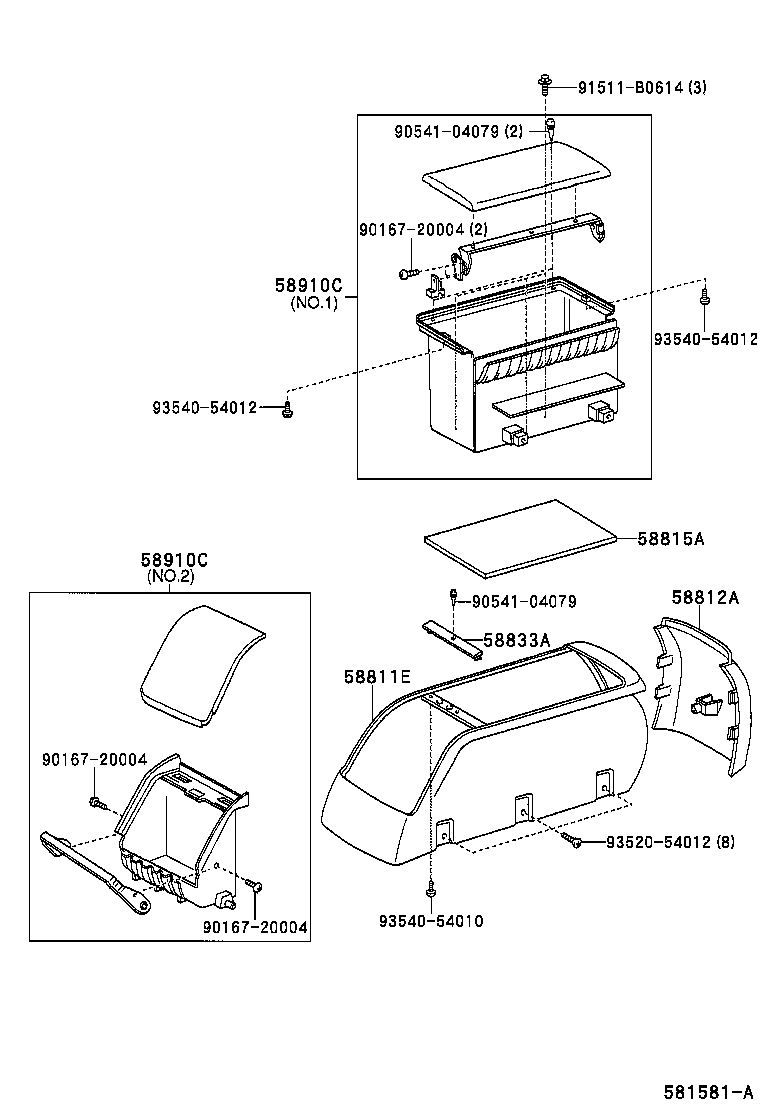

Click highlighted areas on diagram

diagram 58811E 58812A 58815A 58833A 58910C 58910C 9016720004 9016720004 9016720004 9054104079 9054104079 91511B0614 9352054012 9354054010 9354054012 9354054012
Part # Description Qty Price
58811E - BOX, CONSOLE, UPPER
58811-63020B0

ACT10,ZCT1#..A

LT.GRAY,TRIM1#

 1
58811-63030B0

ACT10,ZCT1#

LT.GRAY,TRIM1#

 1
58812A - BOX, CONSOLE, LOWER
58812-63020B0

ACT10,ZCT1#

LT.GRAY,TRIM1#

 1
58815A - CARPET, CONSOLE BOX
58815-63010

ACT10,ZCT1#

 1
58833A - COVER, CONSOLE, UPPER
58833-63010

ACT10,ZCT1#

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-63010

ACT10,ZCT1#

ﾓｸﾒ(ﾌﾞﾗﾂｸ),NO.1

 1
58910-63020

ACT10,ZCT1#

ﾓｸﾒ(ﾌﾞﾗﾂｸ),NO.2

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-63010

ACT10,ZCT1#

ﾓｸﾒ(ﾌﾞﾗﾂｸ),NO.1

 1
58910-63020

ACT10,ZCT1#

ﾓｸﾒ(ﾌﾞﾗﾂｸ),NO.2

 1
Common parts
90167-20004
90541-04079
91511-B0614
93520-54012
93540-54010
93540-54012
