ZCT15-ZHSEK (2000)

Toyota Opa

Production Apr 2000 - Apr 2005
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0004- )ZCT15

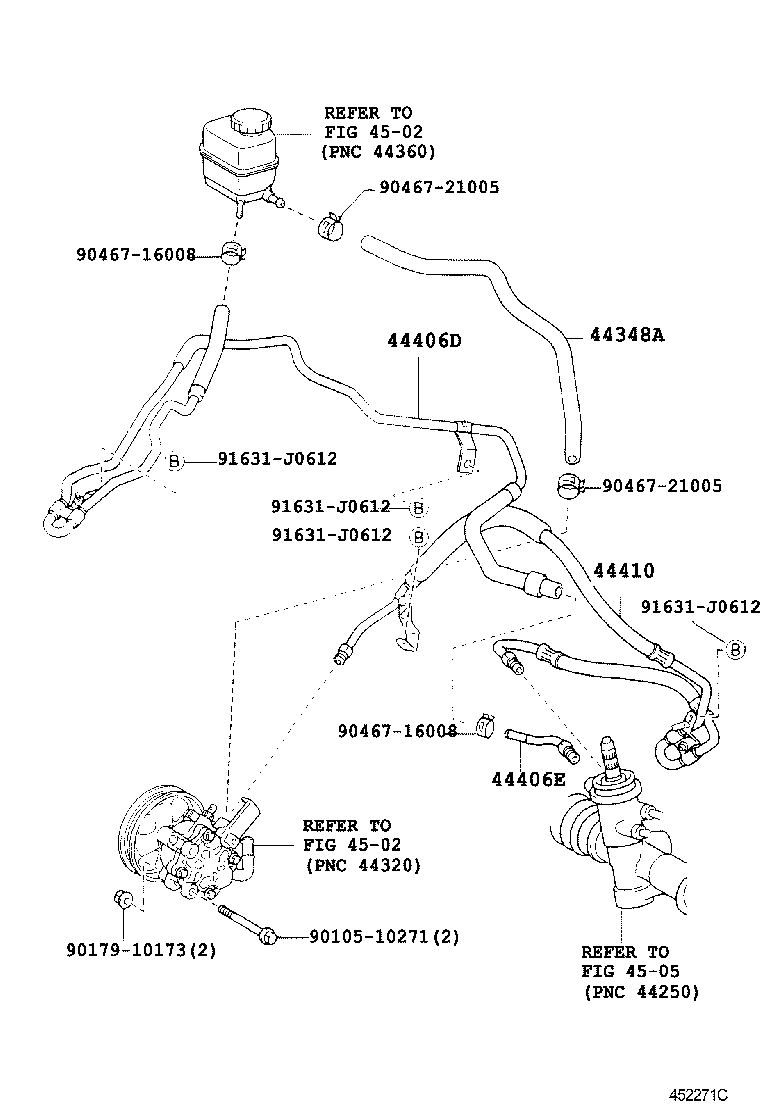

Click highlighted areas on diagram

diagram 44348A 44406D 44406E 44410 4502 4502 4505 9010510271 9017910173 9046716008 9046716008 9046721005 9046721005 91631J0612 91631J0612 91631J0612 91631J0612
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-63010

ZCT1#

 1
44348-63010

ZCT1#

 1
44406D - TUBE SUB-ASSY, RETURN, NO.1
44406-63020

ZCT15

 1
44406-63020

ZCT15

 1
44406E - TUBE SUB-ASSY, RETURN, NO.2
44416-32080

ZCT15

 1
44416-32080

ZCT15

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-63020

ZCT15

 1
44410-63021

ZCT15

 1
Common parts
90105-10271
90179-10173
90467-16008
90467-21005
91631-J0612
Linked diagrams
4502
4505
