ZCT10-ZHSGK (2000)
Toyota Opa
Production
Apr 2000
-
Apr 2005
Engine
1ZZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0004- )ZCT1#

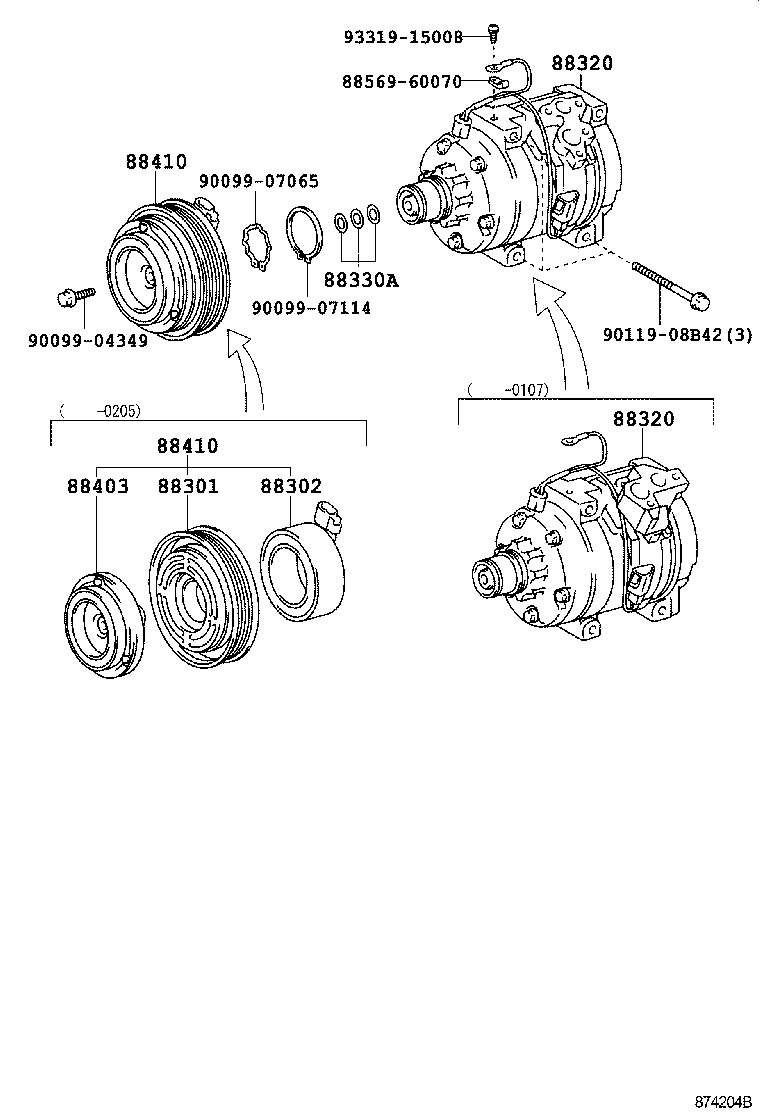

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-32120 |
ZCT1# |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-44010 |
ACT10,ZCT1# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-63010 |
ZCT1# |
1 | ||
| 88320-63030 |
ZCT1# |
1 | ||
| 88320-2B430 |
ZCT1# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-63010 |
ZCT1# |
1 | ||
| 88320-63030 |
ZCT1# |
1 | ||
| 88320-2B430 |
ZCT1# |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
ACT10,ZCT1# |
1 | ||
| 88335-14020 |
ACT10,ZCT1# |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-32010 |
ACT10,ZCT1# |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-32200 |
ZCT1# |
1 | ||
| 88410-02110 |
ZCT1# |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-32200 |
ZCT1# |
1 | ||
| 88410-02110 |
ZCT1# |
1 | ||
| Common parts | ||||
| 88569-60070 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90119-08B42 | ||||
| 93319-15008 | ||||
