ZCT10-ZHSGK (2000)

Toyota Opa

Production Apr 2000 - Apr 2005
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0004- )

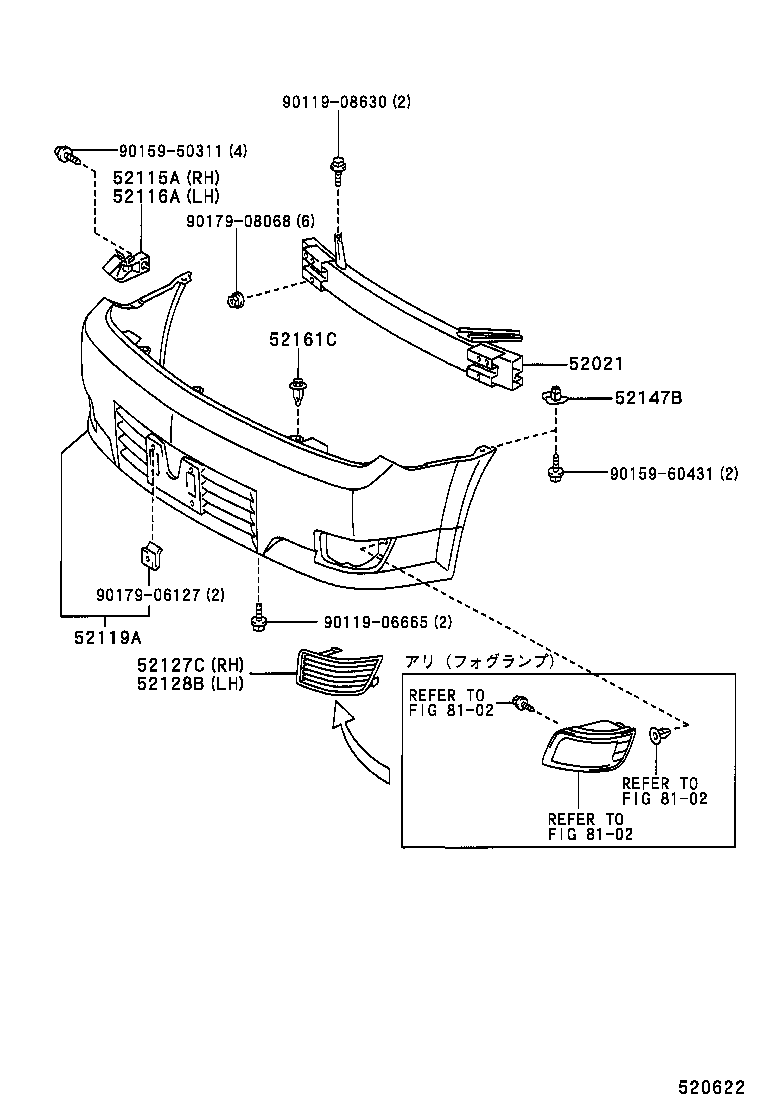

Click highlighted areas on diagram

diagram 52021 52115A 52116A 52119A 52127C 52128B 52147B 52161C 8102 8102 8102 9011906665 9011908630 9015950311 9015960431 9017906127 9017908068
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-63010

ACT10,ZCT1#

 1
52021-63010

ACT10,ZCT1#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-63010

ACT10,ZCT1#

 1
52115-63010

ACT10,ZCT1#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-63010

ACT10,ZCT1#

 1
52116-63010

ACT10,ZCT1#

 1
52119A - COVER, FRONT BUMPER
52119-63010J0

ACT10,ZCT1#

DK.BLUE M.M.,8P4

 1
52119-63010D1

ACT10,ZCT1#

PALE ROSE ME.OP.,3N7

 1
52119-63010A0

ACT10,ZCT1#

SUPER WHITE 2,040

 1
52119-63010C0

ACT10,ZCT1#

BLACK MC.,209

 1
52119-63010E0

ACT10,ZCT1#

BEIGE ME.,4P7

 1
52119-63010A1

ACT10,ZCT1#

SU. WHITE PM.,051

 1
52119-63010J1

ACT10,ZCT1#

BLUE M.M.,8P5

 1
52119-63010D2

ACT10,ZCT1#

RED M.M.,3N8

 1
52119-63010B0

ACT10,ZCT1#

SILVER ME.,1C0

 1
52119-63010C0

ACT10,ZCT1#

BLACK MC.,209

 1
52119-63010D0

ACT10,ZCT1#

RED MC.,3M8

 1
52119-63010G0

ACT10,ZCT1#

JADE GREEN M.M.,6S9

 1
52119-63010B0

ACT10,ZCT1#

SILVER ME.,1C0

 1
52119-63010F0

ACT10,ZCT1#

CHAMPAGNE ME.,586

 1
52119-63010A1

ACT10,ZCT1#

SU. WHITE PM.,051

 1
52147B - BRACKET, FRONT BUMPER MOUNTING
52147-16080

ACT10,ZCT1#

 2
52147-16080

ACT10,ZCT1#

 2
52147-21010

ACT10,ZCT1#

 2
52161C - PIECE, FRONT BUMPER
52161-16010

ACT10,ZCT1#

 3
52161-16010

ACT10,ZCT1#

 3
Common parts
90119-06665
90119-08630
90159-50311
90159-60431
90179-06127
90179-08068
Linked diagrams
8102
