ZCT10-ZHSGK (2000)
Toyota Opa

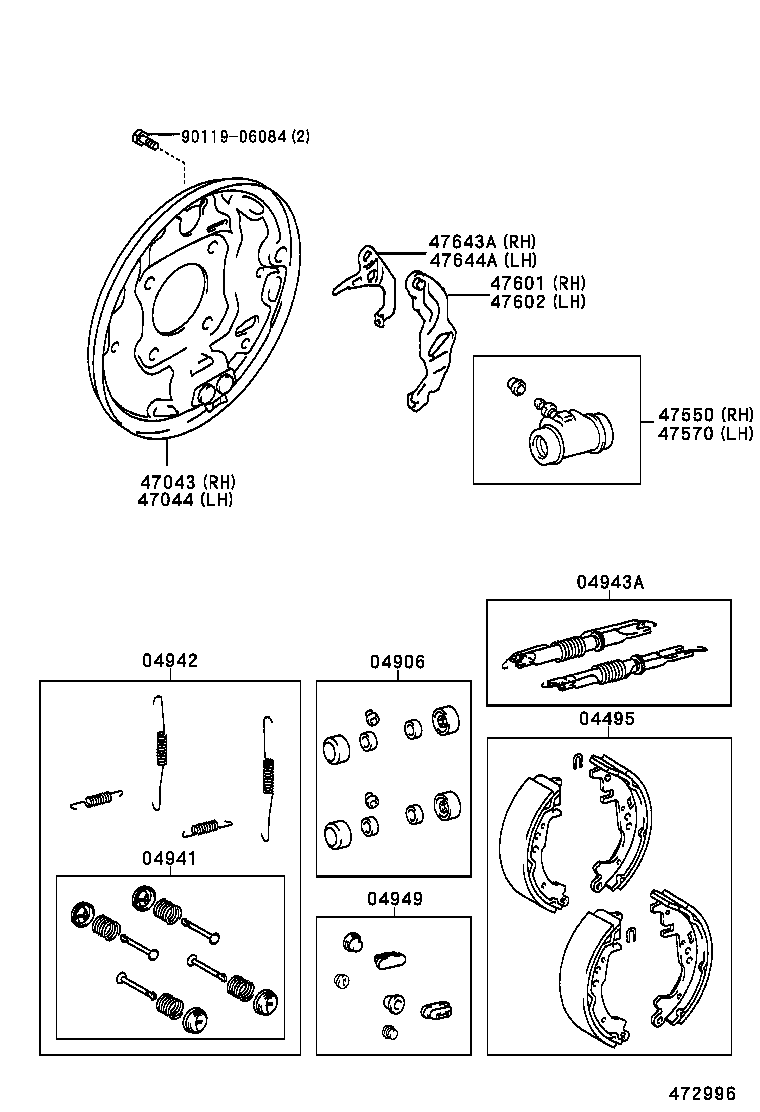

(0205- )ZCT10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-47010 |
ZCT10 ﾏｰｸ AKB LA509A |
1 | ||
| 04495-52020 |
ZCT10 ﾏｰｸ NBK LN521 |
1 | ||
| 04495-52040 |
ZCT10 ﾏｰｸ NBK LN521 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-52020 |
ZCT10 |
1 | ||
| 04906-52020 |
ZCT10 |
1 | ||
| 04906-10021 |
ZCT10 |
1 | ||
| 04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN | ||||
| 04941-12010 |
ZCT10 |
1 | ||
| 04941-46010 |
ZCT10 |
1 | ||
| 04942 - SPRING KIT, REAR BRAKE | ||||
| 04942-46010 |
ZCT10 |
1 | ||
| 04942-12010 |
ZCT10 |
1 | ||
| 04943A - STRUT KIT, REAR BRAKE | ||||
| 04943-12010 |
ZCT10 |
1 | ||
| 04949 - PLUG KIT, REAR BRAKE | ||||
| 04949-12010 |
ZCT10 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-47010 |
ZCT10 |
1 | ||
| 47043-47010 |
ZCT10 |
1 | ||
| 47043-20140 |
ZCT10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 47043-47010 |
ZCT10 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-47010 |
ZCT10 |
1 | ||
| 47044-20140 |
ZCT10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 47044-47010 |
ZCT10 |
1 | ||
| 47044-47010 |
ZCT10 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-20150 |
ZCT10 |
1 | ||
| 47550-20211 |
ZCT10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 47550-20150 |
ZCT10 |
1 | ||
| 47550-20150 |
ZCT10 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-20101 |
ZCT10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 47570-20060 |
ZCT10 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 47570-20060 |
ZCT10 |
1 | ||
| 47570-20060 |
ZCT10 |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-47010 |
ZCT10 |
1 | ||
| 47601-47010 |
ZCT10 |
1 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-47010 |
ZCT10 |
1 | ||
| 47602-47010 |
ZCT10 |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-47010 |
ZCT10 |
1 | ||
| 47643-47010 |
ZCT10 |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-47010 |
ZCT10 |
1 | ||
| 47644-47010 |
ZCT10 |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||

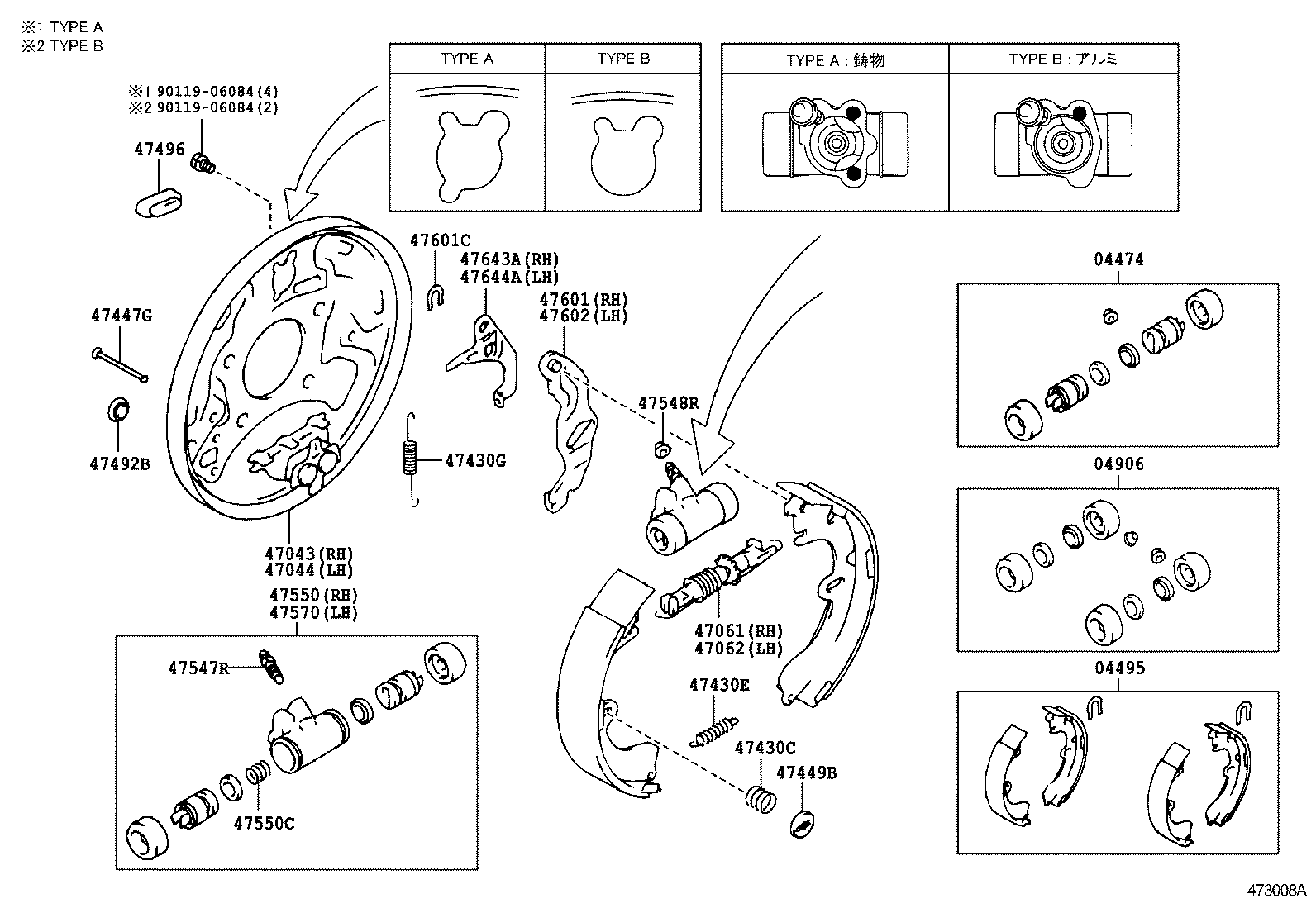

(0004-0205)ZCT10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-63020 |
ZCT10 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 04474-52020 |
ZCT10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 04474-63020 |
ZCT10 |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-47010 |
ZCT10 ﾏｰｸ AKB LA509A |
1 | ||
| 04495-52020 |
ZCT10 ﾏｰｸ NBK LN521 |
1 | ||
| 04495-52040 |
ZCT10 ﾏｰｸ NBK LN521 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-52020 |
ZCT10 |
1 | ||
| 04906-52020 |
ZCT10 |
1 | ||
| 04906-10021 |
ZCT10 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-47010 |
ZCT10 |
1 | ||
| 47043-47010 |
ZCT10 |
1 | ||
| 47043-20140 |
ZCT10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 47043-47010 |
ZCT10 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-47010 |
ZCT10 |
1 | ||
| 47044-20140 |
ZCT10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 47044-47010 |
ZCT10 |
1 | ||
| 47044-47010 |
ZCT10 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 47061 - STRUT SET, PARKING BRAKE SHOE, RH | ||||
| 47061-47010 |
ZCT10 |
1 | ||
| 47062 - STRUT SET, PARKING BRAKE SHOE, LH | ||||
| 47062-47010 |
ZCT10 |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20147 |
ZCT10 |
4 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-14073 |
ZCT10 |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90506-14072 |
ACT10,ZCT1# |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-11010 |
ZCT10 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30030 |
ZCT10 |
4 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-32010 |
ZCT10 |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
ACT10,ZCT1# |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-20010 |
ZCT10 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
ACT10,ZCT1# |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-20150 |
ZCT10 |
1 | ||
| 47550-20211 |
ZCT10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 47550-20150 |
ZCT10 |
1 | ||
| 47550-20150 |
ZCT10 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-07006 |
ZCT10 |
2 | ||
| 90029-60014 |
ZCT10 |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-20101 |
ZCT10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 47570-20060 |
ZCT10 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 47570-20060 |
ZCT10 |
1 | ||
| 47570-20060 |
ZCT10 |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-47010 |
ZCT10 |
1 | ||
| 47601-47010 |
ZCT10 |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
ACT10,ZCT1# 厚さ=1.2 |
2 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-47010 |
ZCT10 |
1 | ||
| 47602-47010 |
ZCT10 |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-47010 |
ZCT10 |
1 | ||
| 47643-47010 |
ZCT10 |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-47010 |
ZCT10 |
1 | ||
| 47644-47010 |
ZCT10 |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
