ZCT10-ZHSGK (2000)
Toyota Opa
Production
Apr 2000
-
Apr 2005
Engine
1ZZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

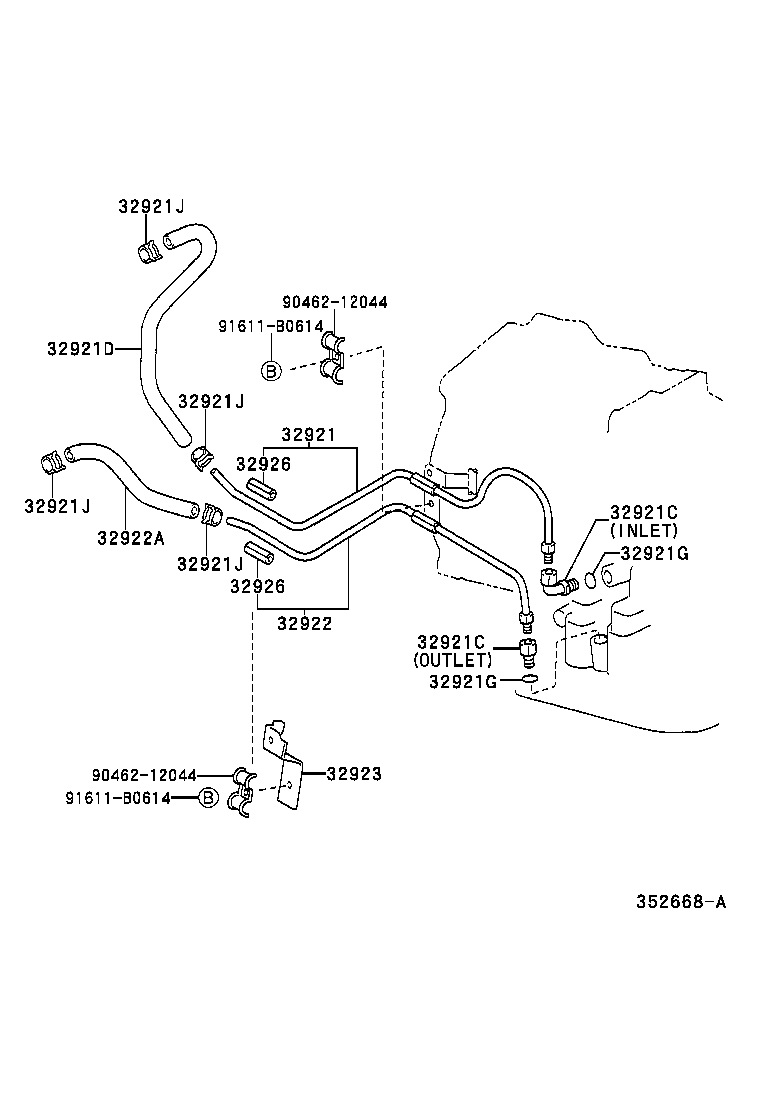

(0004-0205)ZCT1# ; (0205- )ZCT15
Click highlighted areas on diagram
U341E,U341F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-63020 |
ZCT1# |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16010 |
ZCT1# ｲﾝﾚｯﾄ |
1 | ||
| 90404-13004 |
ZCT10 |
2 | ||
| 90404-16031 |
ZCT1# ｱｳﾄﾚｯﾄ |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16010 |
ZCT1# ｲﾝﾚｯﾄ |
1 | ||
| 90404-13004 |
ZCT10 |
2 | ||
| 90404-16031 |
ZCT1# ｱｳﾄﾚｯﾄ |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-63020 |
ZCT1# |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ZCT1# |
2 | ||
| 90301-10189 |
ZCT1# |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ZCT1# |
2 | ||
| 90301-10189 |
ZCT1# |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
ZCT1# |
4 | ||
| 90467-16013 |
ZCT1# |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
ZCT1# |
4 | ||
| 90467-16013 |
ZCT1# |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
ZCT1# |
4 | ||
| 90467-16013 |
ZCT1# |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
ZCT1# |
4 | ||
| 90467-16013 |
ZCT1# |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-63020 |
ZCT1# |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17104 |
ZCT1# |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-32080 |
ZCT1# |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
ZCT1# 長さ=35,内径=10 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
ZCT1# 長さ=35,内径=10 |
4 | ||
| Common parts | ||||
| 90462-12044 | ||||
| 91611-B0614 | ||||

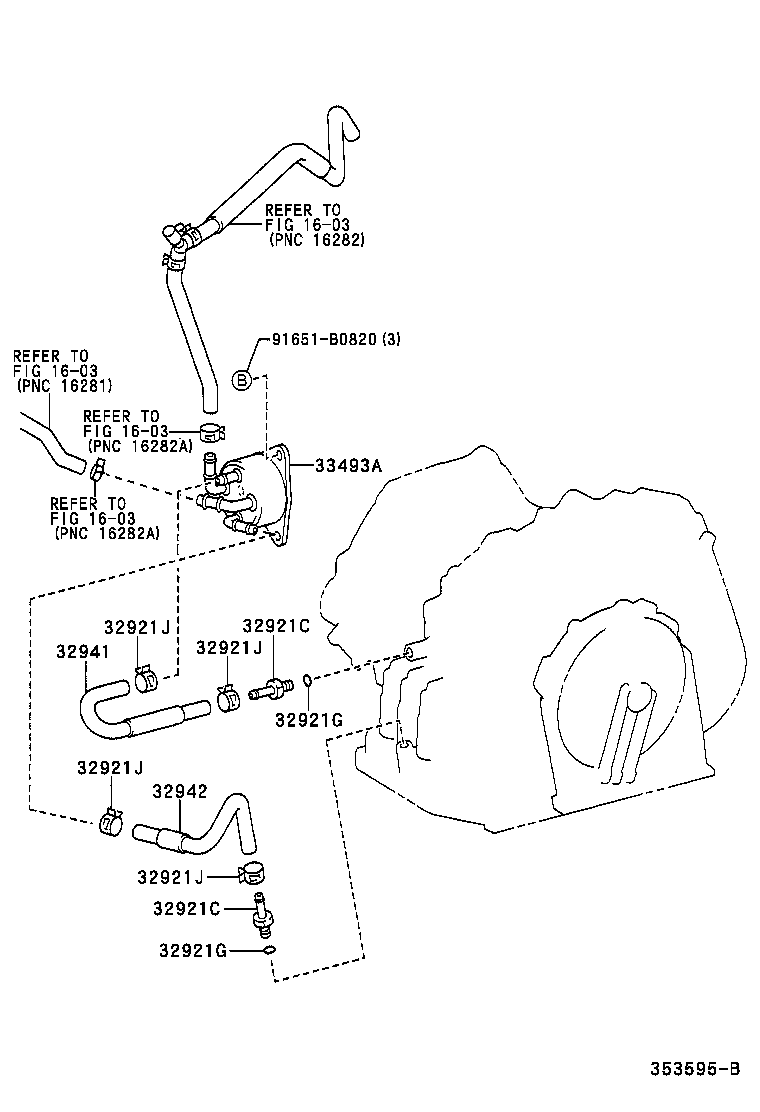

(0205-0212)ZCT10
Click highlighted areas on diagram
U341E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16010 |
ZCT1# ｲﾝﾚｯﾄ |
1 | ||
| 90404-13004 |
ZCT10 |
2 | ||
| 90404-16031 |
ZCT1# ｱｳﾄﾚｯﾄ |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16010 |
ZCT1# ｲﾝﾚｯﾄ |
1 | ||
| 90404-13004 |
ZCT10 |
2 | ||
| 90404-16031 |
ZCT1# ｱｳﾄﾚｯﾄ |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ZCT1# |
2 | ||
| 90301-10189 |
ZCT1# |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ZCT1# |
2 | ||
| 90301-10189 |
ZCT1# |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
ZCT1# |
4 | ||
| 90467-16013 |
ZCT1# |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
ZCT1# |
4 | ||
| 90467-16013 |
ZCT1# |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
ZCT1# |
4 | ||
| 90467-16013 |
ZCT1# |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
ZCT1# |
4 | ||
| 90467-16013 |
ZCT1# |
4 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-20210 |
ZCT10 |
1 | ||
| 32941-68010 |
ZCT10 |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-20060 |
ZCT10 |
1 | ||
| 32942-68010 |
ZCT10 |
1 | ||
| 33493A - COOLER, TRANSMISSION OIL | ||||
| 33493-20020 |
ZCT10 |
1 | ||
| 33493-20021 |
ZCT10 |
1 | ||
| Common parts | ||||
| 91651-B0820 | ||||
| Linked diagrams | ||||
| 1603 | ||||

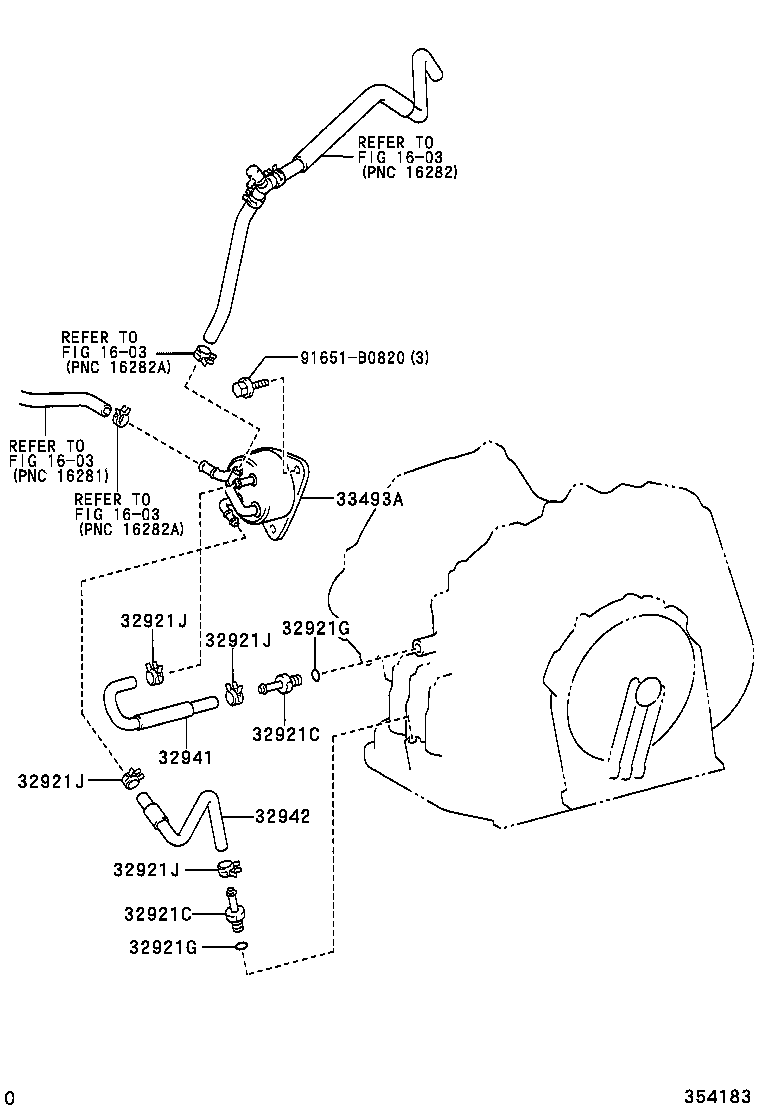

(0212- )ZCT10
Click highlighted areas on diagram
U341E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16010 |
ZCT1# ｲﾝﾚｯﾄ |
1 | ||
| 90404-13004 |
ZCT10 |
2 | ||
| 90404-16031 |
ZCT1# ｱｳﾄﾚｯﾄ |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16010 |
ZCT1# ｲﾝﾚｯﾄ |
1 | ||
| 90404-13004 |
ZCT10 |
2 | ||
| 90404-16031 |
ZCT1# ｱｳﾄﾚｯﾄ |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ZCT1# |
2 | ||
| 90301-10189 |
ZCT1# |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ZCT1# |
2 | ||
| 90301-10189 |
ZCT1# |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
ZCT1# |
4 | ||
| 90467-16013 |
ZCT1# |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
ZCT1# |
4 | ||
| 90467-16013 |
ZCT1# |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
ZCT1# |
4 | ||
| 90467-16013 |
ZCT1# |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
ZCT1# |
4 | ||
| 90467-16013 |
ZCT1# |
4 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-20210 |
ZCT10 |
1 | ||
| 32941-68010 |
ZCT10 |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-20060 |
ZCT10 |
1 | ||
| 32942-68010 |
ZCT10 |
1 | ||
| 33493A - COOLER, TRANSMISSION OIL | ||||
| 33493-20020 |
ZCT10 |
1 | ||
| 33493-20021 |
ZCT10 |
1 | ||
| Common parts | ||||
| 91651-B0820 | ||||
| Linked diagrams | ||||
| 1603 | ||||
