ZCT10-ZHSGK (2000)
Toyota Opa
Production
Apr 2000
-
Apr 2005
Engine
1ZZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0004- )ZCT1#

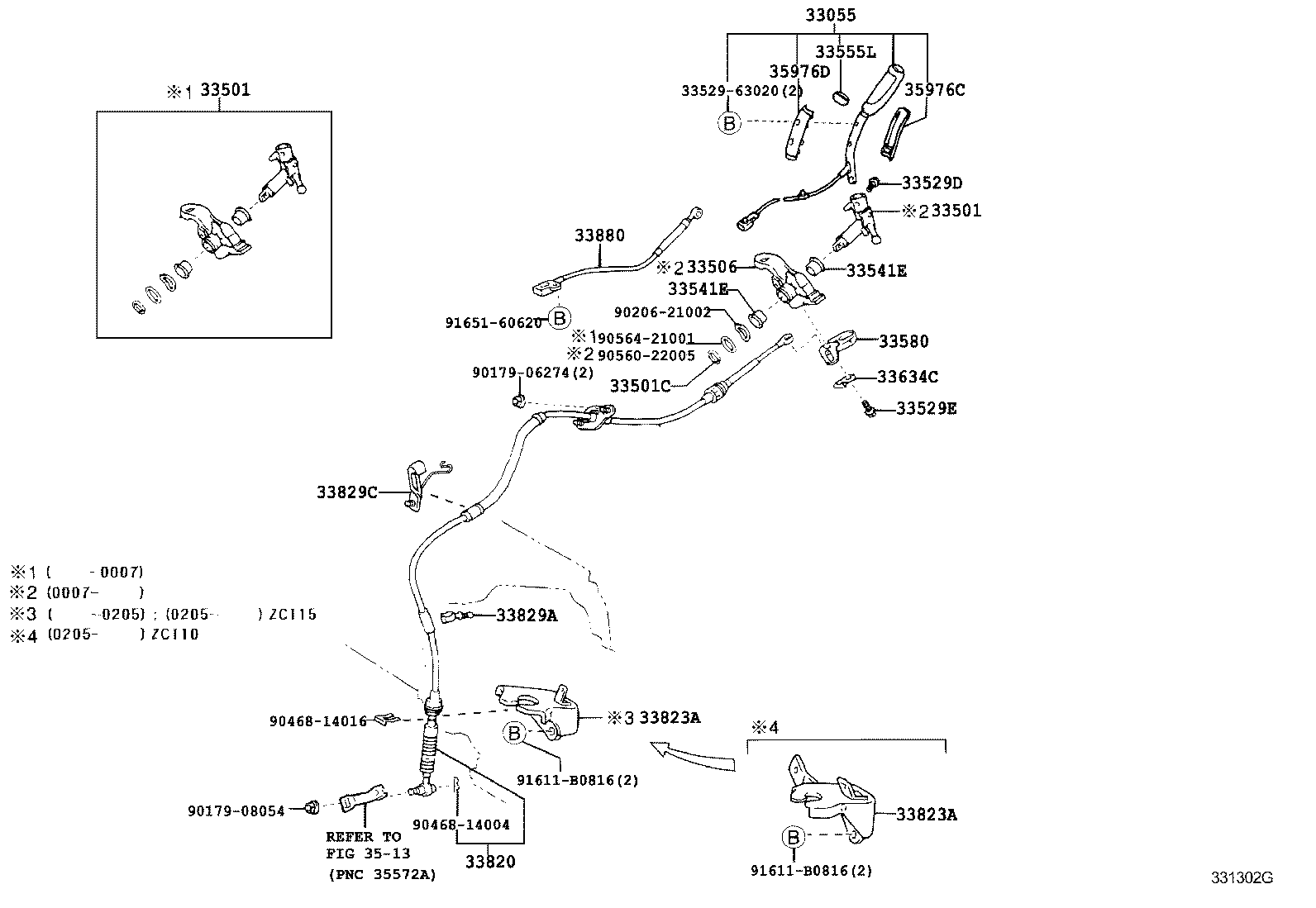

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33055 - LEVER SUB-ASSY, COLUMN SHIFT | ||||
| 33055-63020 |
ZCT1# |
1 | ||
| 33055-63021 |
ZCT1# |
1 | ||
| 33055-63021 |
ZCT1# |
1 | ||
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33501-63021 |
ACT10,ZCT1# |
1 | ||
| 33501-69015 |
ZCT1# |
1 | ||
| 33501-63021 |
ACT10,ZCT1# |
1 | ||
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33501-63021 |
ACT10,ZCT1# |
1 | ||
| 33501-69015 |
ZCT1# |
1 | ||
| 33501-63021 |
ACT10,ZCT1# |
1 | ||
| 33501C - RING (FOR CONTROL SHAFT) | ||||
| 96150-02000 |
ACT10,ZCT1# |
1 | ||
| 96150-02000 |
ACT10,ZCT1# |
1 | ||
| 33506 - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIF | ||||
| 33506-63042 |
ZCT1# |
1 | ||
| 33506-63042 |
ZCT1# |
1 | ||
| 33529D - BOLT, SHIFT LEVER | ||||
| 33529-63010 |
ACT10,ZCT1# |
1 | ||
| 33529-63010 |
ACT10,ZCT1# |
1 | ||
| 33529-32010 |
ZCT1# |
1 | ||
| 33529E - BOLT, SHIFT LEVER RETAINER | ||||
| 33529-52010 |
ACT10,ZCT1# |
1 | ||
| 33529-52010 |
ACT10,ZCT1# |
1 | ||
| 33541E - BUSH (FOR COLUMN SHIFT LEVER) | ||||
| 90386-21002 |
ACT10,ZCT1# |
2 | ||
| 90386-20007 |
ZCT1# |
2 | ||
| 90386-21002 |
ACT10,ZCT1# |
2 | ||
| 33541E - BUSH (FOR COLUMN SHIFT LEVER) | ||||
| 90386-21002 |
ACT10,ZCT1# |
2 | ||
| 90386-20007 |
ZCT1# |
2 | ||
| 90386-21002 |
ACT10,ZCT1# |
2 | ||
| 33555L - BOOT, SHIFT LEVER | ||||
| 33555-63010 |
ACT10,ZCT1# |
1 | ||
| 33555-63010 |
ACT10,ZCT1# |
1 | ||
| 33580 - BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT) | ||||
| 33580-63020 |
ACT10,ZCT1# |
1 | ||
| 33580-63020 |
ACT10,ZCT1# |
1 | ||
| 33634C - BRACKET, SHIFT LEVER HARNESS CONNECTOR | ||||
| 33634-32010 |
ACT10,ZCT1# |
1 | ||
| 33634-32010 |
ACT10,ZCT1# |
1 | ||
| 33820 - CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT) | ||||
| 33820-63020 |
ZCT1# |
1 | ||
| 33820-63020 |
ZCT1# |
1 | ||
| 33823A - BRACKET, TRANSMISSION CONTROL CABLE | ||||
| 33823-20280 |
ZCT10 |
1 | ||
| 33823-20230 |
ZCT1# |
1 | ||
| 33823-68020 |
ZCT10 |
1 | ||
| 33823A - BRACKET, TRANSMISSION CONTROL CABLE | ||||
| 33823-20280 |
ZCT10 |
1 | ||
| 33823-20230 |
ZCT1# |
1 | ||
| 33823-68020 |
ZCT10 |
1 | ||
| 33829A - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-32020 |
ZCT1# |
1 | ||
| 33829-32020 |
ZCT1# |
1 | ||
| 33829C - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-63010 |
ZCT1# |
1 | ||
| 33829-63060 |
ZCT1# |
1 | ||
| 33880 - CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT) | ||||
| 33880-63010 |
ACT10,ZCT1# |
1 | ||
| 33880-63010 |
ACT10,ZCT1# |
1 | ||
| 35976C - COVER, SLIDE, NO.1(FOR SHIFT LEVER) | ||||
| 35976-63010 |
ACT10,ZCT1# |
1 | ||
| 35976-63010 |
ACT10,ZCT1# |
1 | ||
| 35976D - COVER, SLIDE, NO.2(FOR SHIFT LEVER) | ||||
| 35976-63020 |
ACT10,ZCT1# |
1 | ||
| 35976-63020 |
ACT10,ZCT1# |
1 | ||
| Common parts | ||||
| 33529-63020 | ||||
| 90179-06274 | ||||
| 90179-08054 | ||||
| 90206-21002 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90560-22005 | ||||
| 90564-21001 | ||||
| 91611-B0816 | ||||
| 91651-60620 | ||||
| Linked diagrams | ||||
| 3513 | ||||
