ZCT10-ZHSEK (2000)
Toyota Opa

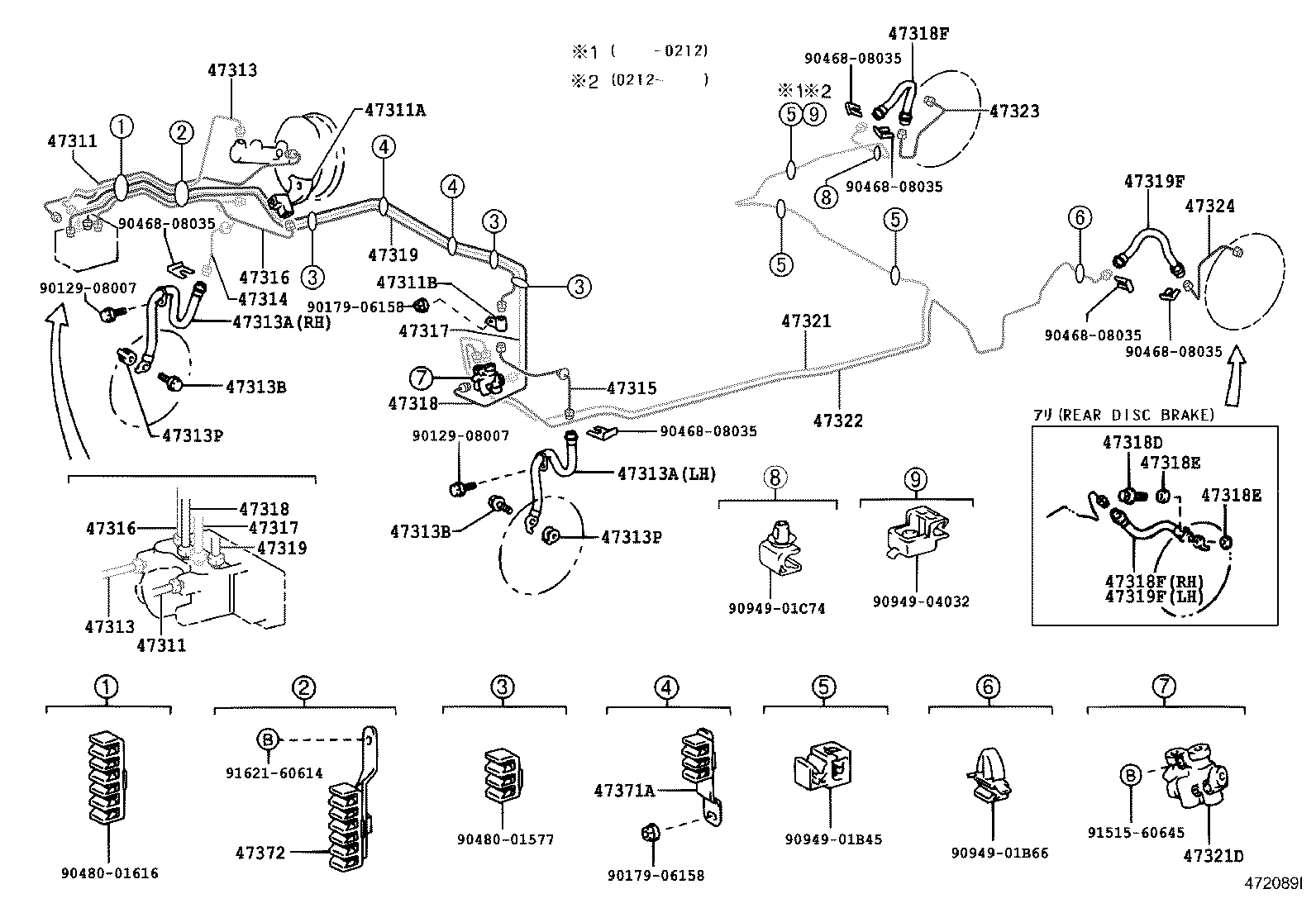

ILLUST NO. 1 OF 2(0004- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-63010 |
ZCT10 |
1 | ||
| 47311-63010 |
ZCT10 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-63010 |
ZCT10 |
1 | ||
| 47311-63010 |
ZCT10 |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90904-12019 |
ZCT10 |
1 | ||
| 90904-12019 |
ZCT10 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10213 |
ACT10,ZCT1# |
1 | ||
| 90412-10167 |
ACT10,ZCT1# |
1 | ||
| 90412-10167 |
ACT10,ZCT1# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-63010 |
ZCT10 |
1 | ||
| 47313-63010 |
ZCT10 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-63010 |
ZCT10 |
1 | ||
| 47313-63010 |
ZCT10 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A34 |
ACT10,ZCT1# 右側 |
1 | ||
| 90947-02A35 |
ACT10,ZCT1# 左側 |
1 | ||
| 90947-02A35 |
ACT10,ZCT1# 左側 |
1 | ||
| 90947-02A34 |
ACT10,ZCT1# 右側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A34 |
ACT10,ZCT1# 右側 |
1 | ||
| 90947-02A35 |
ACT10,ZCT1# 左側 |
1 | ||
| 90947-02A35 |
ACT10,ZCT1# 左側 |
1 | ||
| 90947-02A34 |
ACT10,ZCT1# 右側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACT10,ZCT1# |
2 | ||
| 90401-10058 |
ACT10,ZCT1# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACT10,ZCT1# |
2 | ||
| 90401-10058 |
ACT10,ZCT1# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ACT10,ZCT1# |
2 | ||
| 47389-50020 |
ACT10,ZCT1# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ACT10,ZCT1# |
2 | ||
| 47389-50020 |
ACT10,ZCT1# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-63010 |
ZCT10 |
1 | ||
| 47314-63010 |
ZCT10 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-63010 |
ACT10,ZCT1# |
1 | ||
| 47315-63010 |
ACT10,ZCT1# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-63010 |
ZCT10 |
1 | ||
| 47316-63010 |
ZCT10 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-63010 |
ZCT10 |
1 | ||
| 47316-63010 |
ZCT10 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-63010 |
ACT10,ZCT1# |
1 | ||
| 47317-63010 |
ACT10,ZCT1# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-63010 |
ACT10,ZCT1# |
1 | ||
| 47317-63010 |
ACT10,ZCT1# |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-63010 |
ACT10,ZCT1# |
1 | ||
| 47318-63010 |
ACT10,ZCT1# |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-63010 |
ACT10,ZCT1# |
1 | ||
| 47318-63010 |
ACT10,ZCT1# |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02C49 |
ACT10,ZCT10 |
1 | ||
| 90947-02C49 |
ACT10,ZCT10 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02C49 |
ACT10,ZCT10 |
1 | ||
| 90947-02C49 |
ACT10,ZCT10 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-63010 |
ACT10,ZCT1# |
1 | ||
| 47319-63010 |
ACT10,ZCT1# |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-63010 |
ACT10,ZCT1# |
1 | ||
| 47319-63010 |
ACT10,ZCT1# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02C49 |
ACT10,ZCT10 |
1 | ||
| 90947-02C49 |
ACT10,ZCT10 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02C49 |
ACT10,ZCT10 |
1 | ||
| 90947-02C49 |
ACT10,ZCT10 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-63010 |
ACT10,ZCT10 |
1 | ||
| 47321-63030 |
ACT10,ZCT10 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
ACT10,ZCT1# |
1 | ||
| 90412-10140 |
ACT10,ZCT1# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-63010 |
ACT10,ZCT10 |
1 | ||
| 47322-63030 |
ACT10,ZCT10 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-63010 |
ZCT10 |
1 | ||
| 47323-63010 |
ZCT10 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-63010 |
ZCT10 |
1 | ||
| 47324-63010 |
ZCT10 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-32220 |
ACT10,ZCT1# |
2 | ||
| 47371-32220 |
ACT10,ZCT1# |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-63010 |
ACT10,ZCT1# |
1 | ||
| 47371-63010 |
ACT10,ZCT1# |
1 | ||
| Common parts | ||||
| 90129-08007 | ||||
| 90179-06158 | ||||
| 90468-08035 | ||||
| 90480-01577 | ||||
| 90480-01616 | ||||
| 90949-01B45 | ||||
| 90949-01B66 | ||||
| 90949-01C74 | ||||
| 90949-04032 | ||||
| 91515-60645 | ||||
| 91621-60614 | ||||

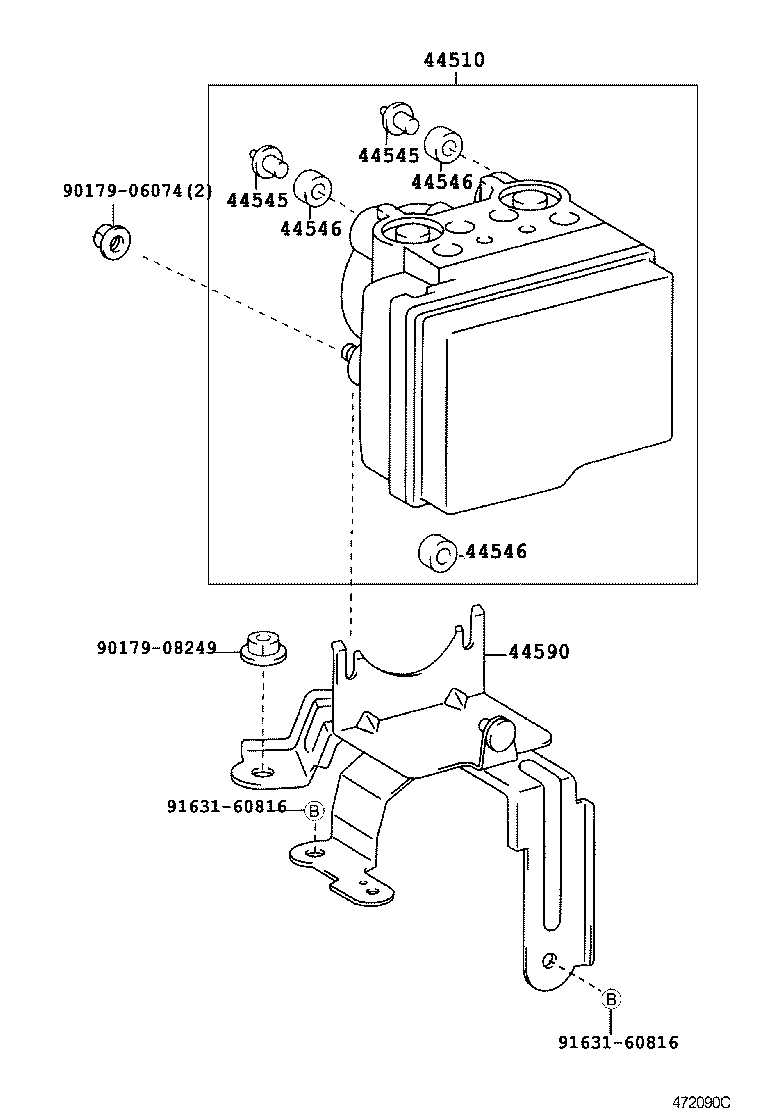

ILLUST NO. 2 OF 2(0004- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-20081 |
ACT10,ZCT10 |
1 | ||
| 44050-20082 |
ACT10,ZCT10 |
1 | ||
| 44050-63010 |
ACT10,ZCT10 |
1 | ||
| 44050-20080 |
ACT10,ZCT10 |
1 | ||
| 44545 - BOLT, UNION(FOR BRAKE ACTUATOR) | ||||
| 44545-63010 |
ACT10,ZCT1# |
2 | ||
| 44545-63010 |
ACT10,ZCT1# |
2 | ||
| 44545 - BOLT, UNION(FOR BRAKE ACTUATOR) | ||||
| 44545-63010 |
ACT10,ZCT1# |
2 | ||
| 44545-63010 |
ACT10,ZCT1# |
2 | ||
| 44546 - SPACER, AIR INLET | ||||
| 44546-63010 |
ACT10,ZCT1# |
3 | ||
| 44546-63010 |
ACT10,ZCT1# |
3 | ||
| 44546 - SPACER, AIR INLET | ||||
| 44546-63010 |
ACT10,ZCT1# |
3 | ||
| 44546-63010 |
ACT10,ZCT1# |
3 | ||
| 44546 - SPACER, AIR INLET | ||||
| 44546-63010 |
ACT10,ZCT1# |
3 | ||
| 44546-63010 |
ACT10,ZCT1# |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-63010 |
ACT10,ZCT1# |
1 | ||
| 44590-63010 |
ACT10,ZCT1# |
1 | ||
| Common parts | ||||
| 90179-06074 | ||||
| 90179-08249 | ||||
| 91631-60816 | ||||
