Toyota Opa ACT10 WIRELESS DOOR LOCK

ACT10-ZHEGH (2000)

Toyota Opa

Production Aug 2000 - Apr 2005

Engine 1AZFSE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

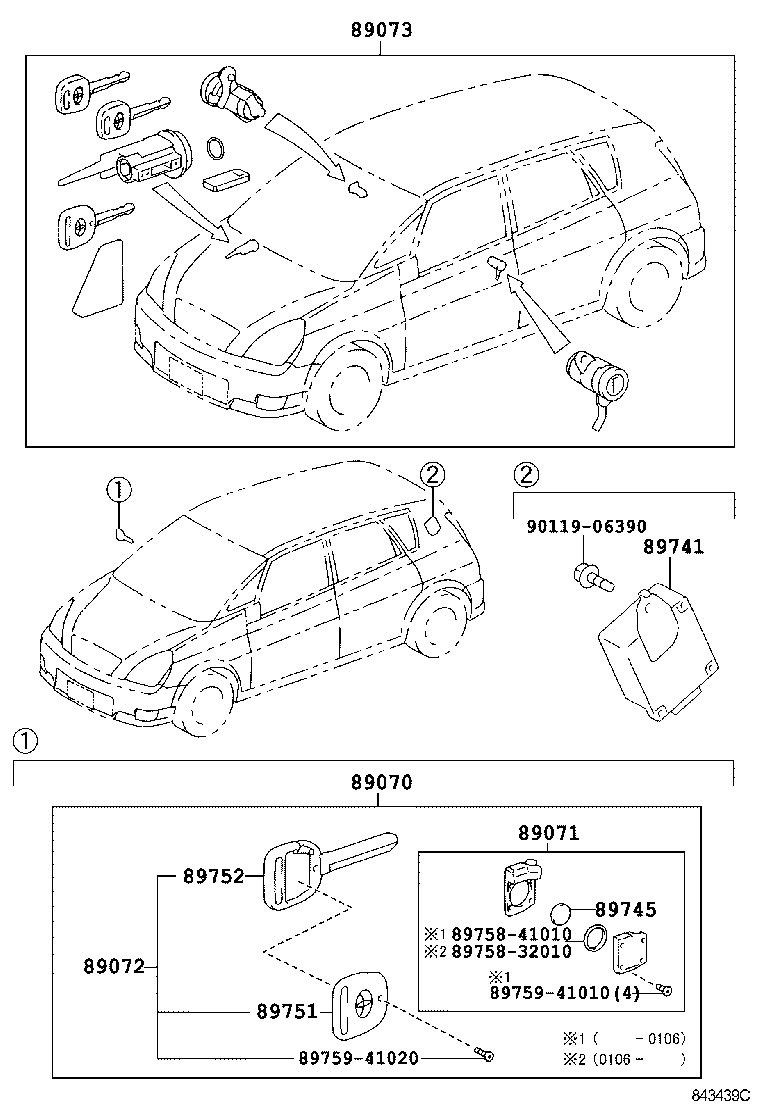

Click highlighted areas on diagram

Part #	Description	Period	Qty
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-47090	ACT10,ZCT1#	04/2000 - 07/2001	1
89070-32080	ACT10,ZCT1#	07/2001 - 05/2002	1
89070-32080	ACT10,ZCT1#	05/2002 - 12/2999	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-52010	ACT10,ZCT1#	04/2000 - 07/2001	1
89071-32030	ACT10,ZCT1#..I	05/2002 - 12/2999	2
89071-32030	ACT10,ZCT1#	07/2001 - 05/2002	1
89072 - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-47020	ACT10,ZCT1#	04/2000 - 05/2002	1
89072-47020	ACT10,ZCT1#	05/2002 - 04/2005	1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-63010	ACT10,ZCT1#	04/2000 - 05/2002	1
69005-63020	ACT10,ZCT1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/2002 - 12/2999	1
89741 - RECEIVER, DOOR CONTROL
89741-63010	ACT10,ZCT1#	04/2000 - 07/2001	1
89741-63020	ACT10,ZCT1#	05/2002 - 12/2999	1
89741-63020	ACT10,ZCT1#	07/2001 - 05/2002	1
89745 - BATTERY, TRANSMITTER
89745-41010	ACT10,ZCT1#	04/2000 - 05/2002	1
89745-41010	ACT10,ZCT1#..I	05/2002 - 12/2999	2
89751 - COVER, TRANSMITTER HOUSING
89751-44010	ACT10,ZCT1#..I	05/2002 - 12/2999	2
89751-44010	ACT10,ZCT1#	04/2000 - 05/2002	1
89752 - CASE, TRANSMITTER HOUSING
89752-46020	ACT10,ZCT1#	04/2000 - 05/2002	1
89752-46020	ACT10,ZCT1#	05/2002 - 04/2005	1
Common parts
89758-32010
89758-41010
89759-41010
89759-41020
90119-06390

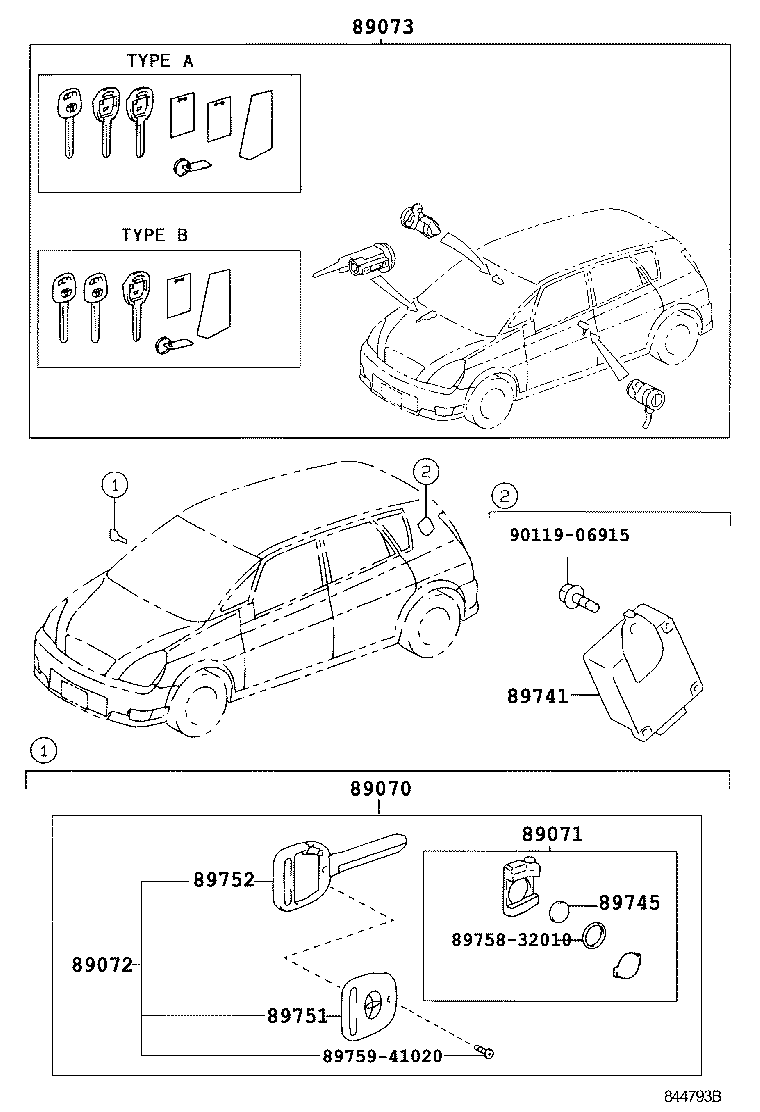

Click highlighted areas on diagram

Part #	Description	Period	Qty
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-47090	ACT10,ZCT1#	04/2000 - 07/2001	1
89070-32080	ACT10,ZCT1#	07/2001 - 05/2002	1
89070-32080	ACT10,ZCT1#	05/2002 - 12/2999	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-52010	ACT10,ZCT1#	04/2000 - 07/2001	1
89071-32030	ACT10,ZCT1#..I	05/2002 - 12/2999	2
89071-32030	ACT10,ZCT1#	07/2001 - 05/2002	1
89072 - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-47020	ACT10,ZCT1#	04/2000 - 05/2002	1
89072-47020	ACT10,ZCT1#	05/2002 - 04/2005	1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-63010	ACT10,ZCT1#	04/2000 - 05/2002	1
69005-63020	ACT10,ZCT1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/2002 - 12/2999	1
89741 - RECEIVER, DOOR CONTROL
89741-63010	ACT10,ZCT1#	04/2000 - 07/2001	1
89741-63020	ACT10,ZCT1#	05/2002 - 12/2999	1
89741-63020	ACT10,ZCT1#	07/2001 - 05/2002	1
89745 - BATTERY, TRANSMITTER
89745-41010	ACT10,ZCT1#	04/2000 - 05/2002	1
89745-41010	ACT10,ZCT1#..I	05/2002 - 12/2999	2
89751 - COVER, TRANSMITTER HOUSING
89751-44010	ACT10,ZCT1#..I	05/2002 - 12/2999	2
89751-44010	ACT10,ZCT1#	04/2000 - 05/2002	1
89752 - CASE, TRANSMITTER HOUSING
89752-46020	ACT10,ZCT1#	04/2000 - 05/2002	1
89752-46020	ACT10,ZCT1#	05/2002 - 04/2005	1
Common parts
89758-32010
89759-41020
90119-06915
