ACT10-ZHEGH (2000)

Toyota Opa

Production Aug 2000 - Apr 2005
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

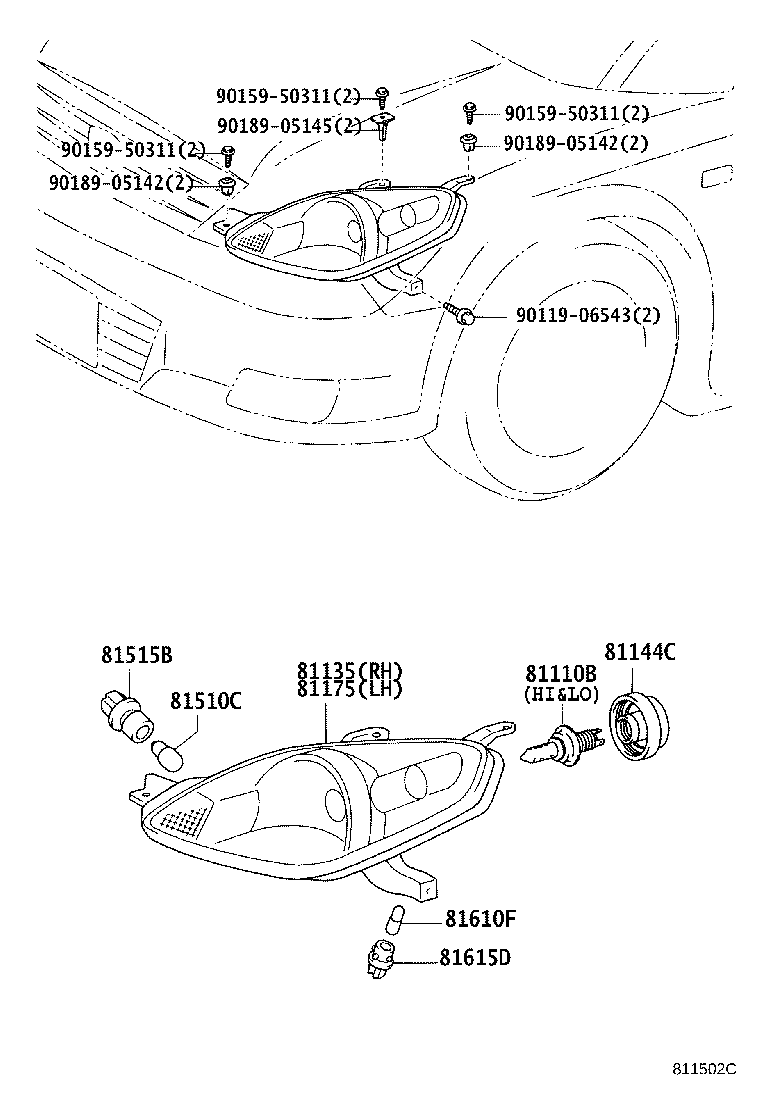

ILLUST NO. 1 OF 2(0004-0205)

Click highlighted areas on diagram

diagram 81110B 81135 81144C 81175 81510C 81515B 81610F 81615D 9011906543 9015950311 9015950311 9015950311 9018905142 9018905142 9018905145
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058

ACT10,ZCT1#

12V 60/55W,ﾊﾛｹﾞﾝ

 2
90981-22004

ACT10,ZCT1#

12V 60/55W,*HAL *WH

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-63020

ACT10..I

S ﾊﾟﾂｹ-ｼﾞ *(S)

 1
81130-63010

ACT10,ZCT1#

 1
81130-63020

ACT10,ZCT1#..I

S ﾊﾟﾂｹ-ｼﾞ *(S)

 1
81144C - COVER, HEADLAMP SOCKET
90075-65002

ACT10,ZCT1#

 2
90075-65002

ACT10,ZCT1#

 2
81175 - UNIT ASSY, HEADLAMP, LH
81170-63010

ACT10,ZCT1#

 1
81170-63020

ACT10..I

S ﾊﾟﾂｹ-ｼﾞ *(S)

 1
81170-63020

ACT10,ZCT1#..I

S ﾊﾟﾂｹ-ｼﾞ *(S)

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011

ACT10,ZCT1#

12V 21W,ｱﾝﾊﾞｰ

 2
90981-15011

ACT10,ZCT1#

12V 21W,ｱﾝﾊﾞｰ

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

ACT10,ZCT1#

 2
90075-60028

ACT10,ZCT1#

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

ACT10,ZCT1#

12V 5W

 2
99132-12050

ACT10,ZCT1#

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60001

ACT10,ZCT1#

 2
90075-60001

ACT10,ZCT1#

 2
Common parts
90119-06543
90159-50311
90189-05142
90189-05145

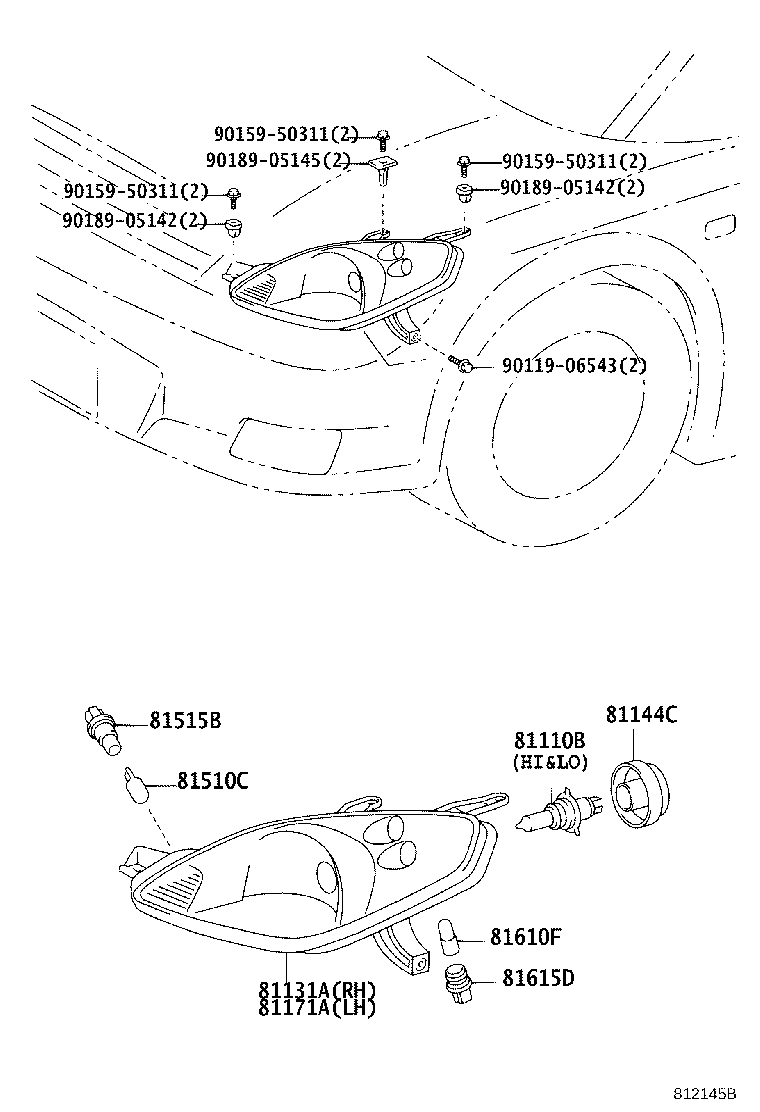

ILLUST NO. 1 OF 2(0205- )

Click highlighted areas on diagram

diagram 81110B 81131A 81144C 81171A 81510C 81515B 81610F 81615D 9011906543 9015950311 9015950311 9015950311 9018905142 9018905142 9018905145
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058

ACT10,ZCT1#

12V 60/55W,ﾊﾛｹﾞﾝ

 2
90981-22004

ACT10,ZCT1#

12V 60/55W,*HAL *WH

 2
81131A - UNIT, HEADLAMP, RH
81140-63040

ACT10,ZCT1#

ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ

 1
81130-63030

ACT10,ZCT1#

 1
81144C - COVER, HEADLAMP SOCKET
90075-65002

ACT10,ZCT1#

 2
90075-65002

ACT10,ZCT1#

 2
81171A - UNIT, HEADLAMP, LH
81070-63040

ACT10,ZCT1#

ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ

 1
81170-63030

ACT10,ZCT1#

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011

ACT10,ZCT1#

12V 21W,ｱﾝﾊﾞｰ

 2
90981-15011

ACT10,ZCT1#

12V 21W,ｱﾝﾊﾞｰ

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

ACT10,ZCT1#

 2
90075-60028

ACT10,ZCT1#

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

ACT10,ZCT1#

12V 5W

 2
99132-12050

ACT10,ZCT1#

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60001

ACT10,ZCT1#

 2
90075-60001

ACT10,ZCT1#

 2
Common parts
90119-06543
90159-50311
90189-05142
90189-05145

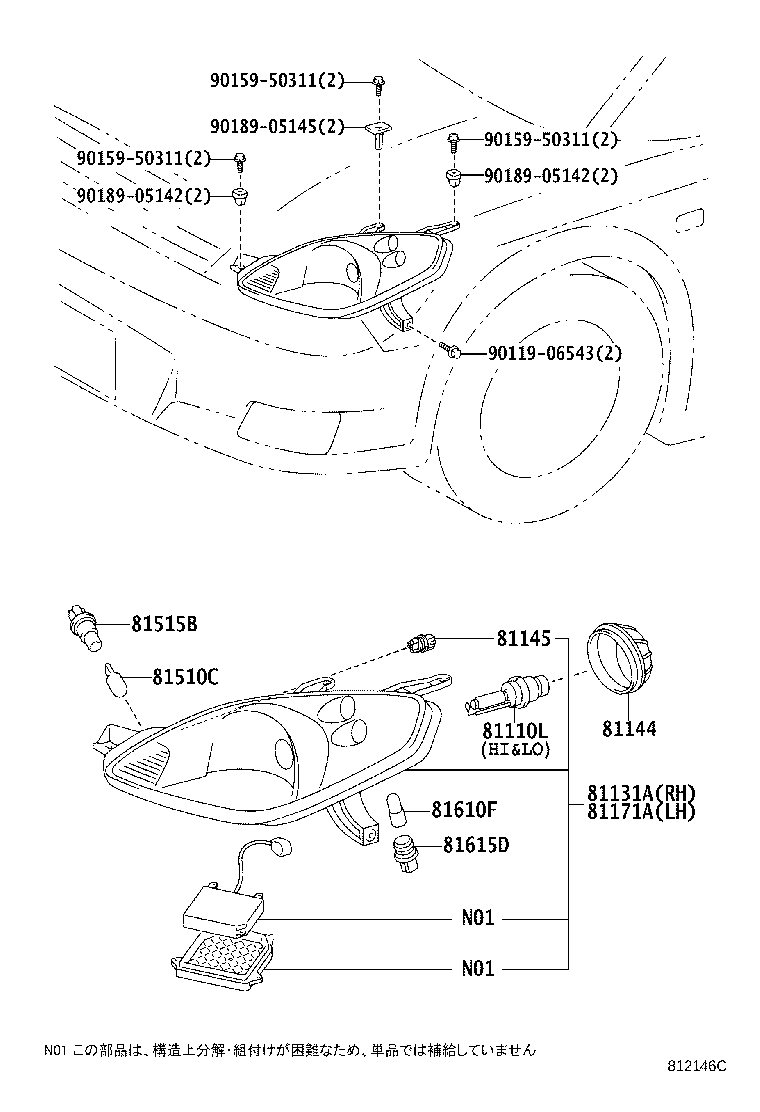

ILLUST NO. 1 OF 2(0205- )

Click highlighted areas on diagram

ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ

diagram 81110L 81131A 81144 81145 81171A 81510C 81515B 81610F 81615D 9011906543 9015950311 9015950311 9015950311 9018905142 9018905142 9018905145
Part # Description Qty Price
81110L - BULB, DISCHARGE HEADLAMP
90981-20007

ACT10,ZCT1#

85V 35W

 2
81131A - UNIT, HEADLAMP, RH
81140-63040

ACT10,ZCT1#

ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ

 1
81130-63030

ACT10,ZCT1#

 1
81144 - COVER, HEADLAMP, NO.1
81135-63040

ACT10,ZCT1#

 2
81145 - COVER, HEADLAMP, NO.2
90075-60053

ACT10,ZCT1#

 2
81171A - UNIT, HEADLAMP, LH
81070-63040

ACT10,ZCT1#

ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ

 1
81170-63030

ACT10,ZCT1#

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011

ACT10,ZCT1#

12V 21W,ｱﾝﾊﾞｰ

 2
90981-15011

ACT10,ZCT1#

12V 21W,ｱﾝﾊﾞｰ

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

ACT10,ZCT1#

 2
90075-60028

ACT10,ZCT1#

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

ACT10,ZCT1#

12V 5W

 2
99132-12050

ACT10,ZCT1#

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60001

ACT10,ZCT1#

 2
90075-60001

ACT10,ZCT1#

 2
Common parts
90119-06543
90159-50311
90189-05142
90189-05145

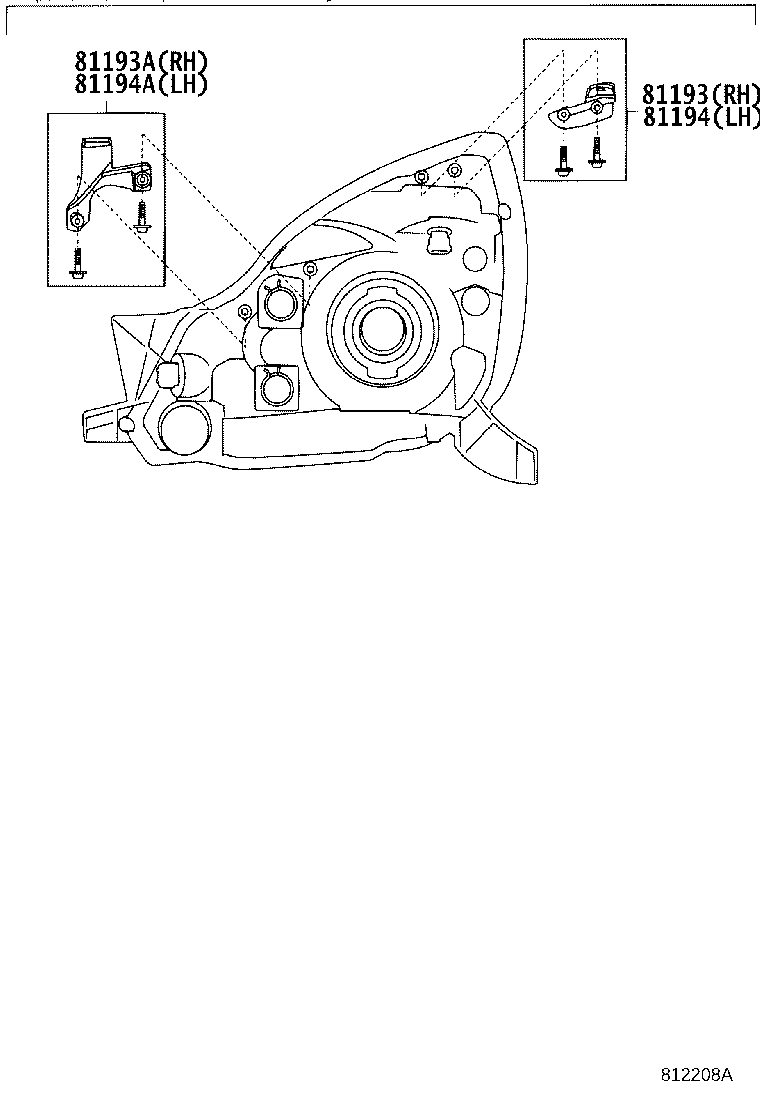

ILLUST NO. 2 OF 2(0205- )

Click highlighted areas on diagram

diagram 81193 81193A 81194 81194A
Part # Description Qty Price
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-63010

ACT10,ZCT1#

 1
81193A - PROTECTOR, HEADLAMP, RH
81193-63020

ACT10,ZCT1#

 1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-63010

ACT10,ZCT1#

 1
81194A - PROTECTOR, HEADLAMP, LH
81194-63020

ACT10,ZCT1#

 1
