ACT10-ZHEGH (2000)

Toyota Opa

Production Aug 2000 - Apr 2005
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )I

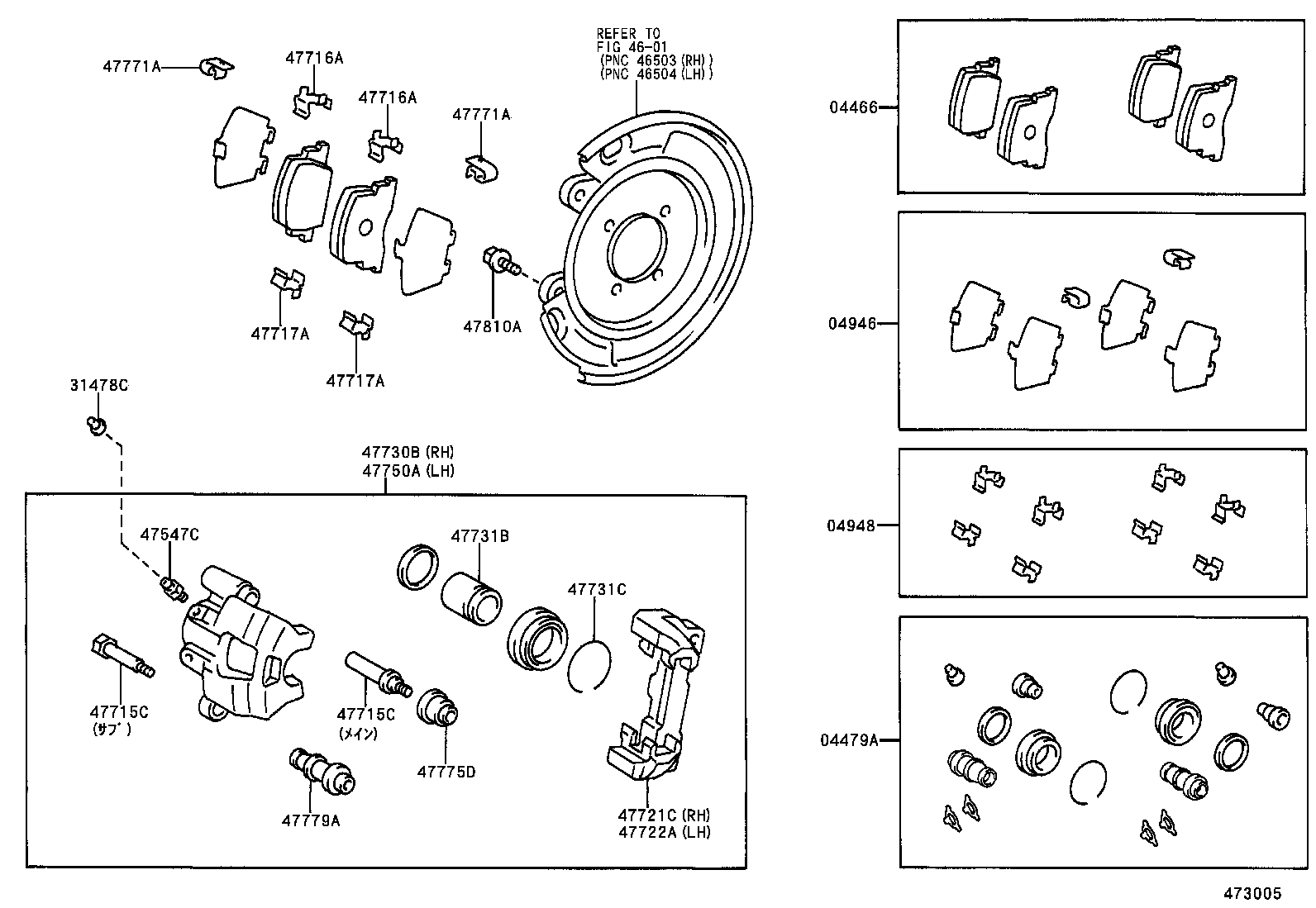

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 4601 47547C 47715C 47715C 47716A 47716A 47717A 47717A 47721C 47722A 47730B 47731B 47731C 47750A 47771A 47771A 47775D 47779A 47810A
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-32040

ACT10,ZCT1#..I

ﾏｰｸ SUMITOMO PS549

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-32120

ACT10,ZCT1#..I

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-32080

ACT10,ZCT1#..I

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-32040

ACT10,ZCT1#..I

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

ACT10,ZCT1#..I

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-20010

ACT10,ZCT1#..I

 2
47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)
47715-32020

ACT10,ZCT1#..I

ﾒｲﾝ

 2
47715-32030

ACT10,ZCT1#..I

ｻﾌﾞ

 2
47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)
47715-32020

ACT10,ZCT1#..I

ﾒｲﾝ

 2
47715-32030

ACT10,ZCT1#..I

ｻﾌﾞ

 2
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-32060

ACT10,ZCT1#..I

 4
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-32060

ACT10,ZCT1#..I

 4
47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
47717-32060

ACT10,ZCT1#..I

 4
47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
47717-32060

ACT10,ZCT1#..I

 4
47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47721-32150

ACT10,ZCT1#..I

 1
47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47722-32150

ACT10,ZCT1#..I

 1
47730B - CYLINDER ASSY, REAR DISC BRAKE, RH
47730-32170

ACT10,ZCT1#..I

 1
47731B - PISTON, REAR DISC BRAKE
47731-32060

ACT10,ZCT1#..I

 2
47731C - RING, SET(FOR REAR DISC BRAKE PISTON)
90522-43002

ACT10,ZCT1#..I

 2
47750A - CYLINDER ASSY, DISC BRAKE, REAR LH
47750-32170

ACT10,ZCT1#..I

 1
47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)
47771-32030

ACT10,ZCT1#..I

 2
47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)
47771-32030

ACT10,ZCT1#..I

 2
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-32050

ACT10,ZCT1#..I

 2
47779A - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47779-32030

ACT10,ZCT1#..I

 2
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90119-10379

ACT10,ZCT1#..I

 4
Linked diagrams
4601
