ACT10-ZHEGH (2000)
Toyota Opa

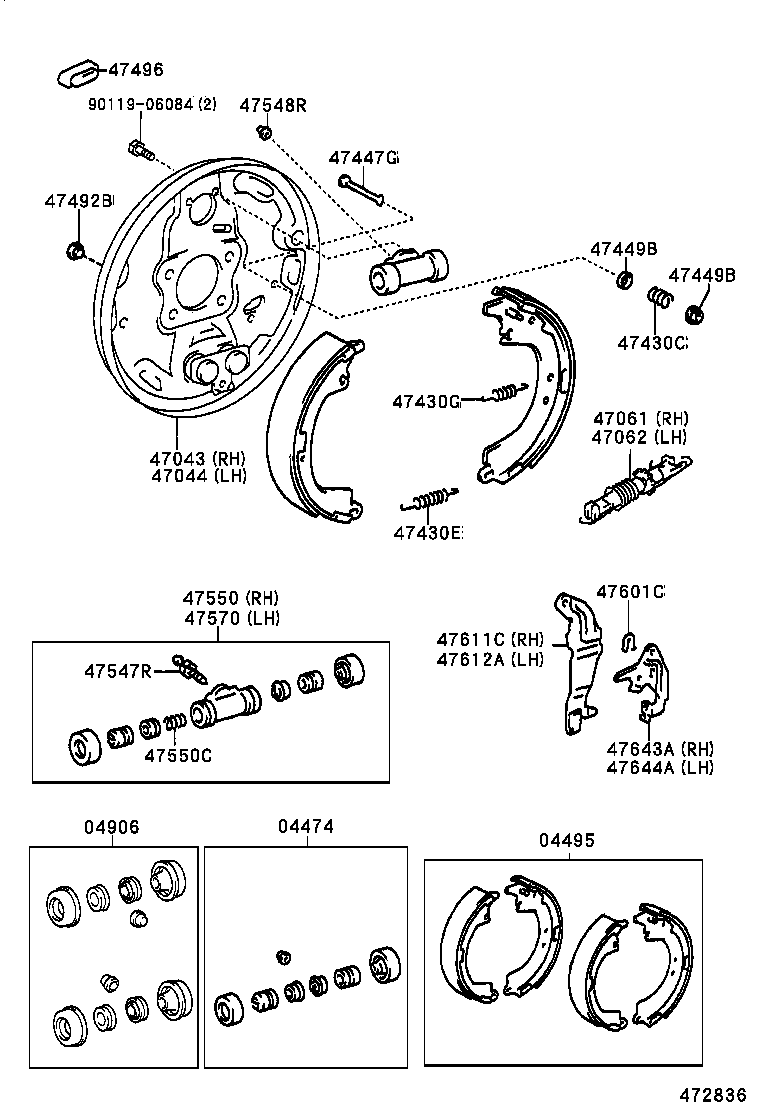

(0109-0205)ACT10,ZCT15
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-63010 |
ACT10 |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-63010 |
ACT10,ZCT15 ﾏｰｸ AKB LA509A |
1 | ||
| 04495-52030 |
ACT10 ﾏｰｸ NBK LN521 |
1 | ||
| 04495-52030 |
ACT10,ZCT15 ﾏｰｸ NBK LN521 |
1 | ||
| 04495-52030 |
ACT10,ZCT15 ﾏｰｸ NBK LN521 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-63010 |
ACT10 |
1 | ||
| 04906-63010 |
ACT10 |
1 | ||
| 04906-42020 |
ACT10 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-63010 |
ACT10,ZCT15 |
1 | ||
| 47043-63010 |
ACT10,ZCT15 |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-63010 |
ACT10,ZCT15 |
1 | ||
| 47044-63010 |
ACT10,ZCT15 |
1 | ||
| 47061 - STRUT SET, PARKING BRAKE SHOE, RH | ||||
| 47061-63010 |
ACT10,ZCT15 |
1 | ||
| 47062 - STRUT SET, PARKING BRAKE SHOE, LH | ||||
| 47062-63020 |
ACT10,ZCT15 |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20756 |
ACT10,ZCT15 |
4 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-18076 |
ACT10,ZCT15 |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90506-14072 |
ACT10,ZCT1# |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20030 |
ACT10,ZCT15 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
ACT10,ZCT15 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
ACT10,ZCT15 |
8 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
ACT10,ZCT15 |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
ACT10,ZCT1# |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-26010 |
ACT10,ZCT15 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
ACT10,ZCT1# |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-63010 |
ACT10 |
1 | ||
| 47550-63010 |
ACT10 |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09079 |
ACT10,ZCT15 |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-63010 |
ACT10 |
1 | ||
| 47550-63010 |
ACT10 |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
ACT10,ZCT1# 厚さ=1.2 |
2 | ||
| 47611C - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-33010 |
ACT10,ZCT15 |
1 | ||
| 47611-33010 |
ACT10,ZCT15 |
1 | ||
| 47612A - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-33010 |
ACT10,ZCT15 |
1 | ||
| 47612-33010 |
ACT10,ZCT15 |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-42010 |
ACT10,ZCT15 |
1 | ||
| 47643-42010 |
ACT10,ZCT15 |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-42010 |
ACT10,ZCT15 |
1 | ||
| 47644-42010 |
ACT10,ZCT15 |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
(0004-0109)ACT10,ZCT15
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-63010 |
ACT10 |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-63010 |
ACT10,ZCT15 ﾏｰｸ AKB LA509A |
1 | ||
| 04495-52030 |
ACT10 ﾏｰｸ NBK LN521 |
1 | ||
| 04495-52030 |
ACT10,ZCT15 ﾏｰｸ NBK LN521 |
1 | ||
| 04495-52030 |
ACT10,ZCT15 ﾏｰｸ NBK LN521 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-63010 |
ACT10 |
1 | ||
| 04906-63010 |
ACT10 |
1 | ||
| 04906-42020 |
ACT10 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-63010 |
ACT10,ZCT15 |
1 | ||
| 47043-63010 |
ACT10,ZCT15 |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-63010 |
ACT10,ZCT15 |
1 | ||
| 47044-63010 |
ACT10,ZCT15 |
1 | ||
| 47061 - STRUT SET, PARKING BRAKE SHOE, RH | ||||
| 47061-63010 |
ACT10,ZCT15 |
1 | ||
| 47062 - STRUT SET, PARKING BRAKE SHOE, LH | ||||
| 47062-63020 |
ACT10,ZCT15 |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20756 |
ACT10,ZCT15 |
4 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-18076 |
ACT10,ZCT15 |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90506-14072 |
ACT10,ZCT1# |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20030 |
ACT10,ZCT15 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
ACT10,ZCT15 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
ACT10,ZCT15 |
8 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
ACT10,ZCT15 |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
ACT10,ZCT1# |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-26010 |
ACT10,ZCT15 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
ACT10,ZCT1# |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-63010 |
ACT10 |
1 | ||
| 47550-63010 |
ACT10 |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09079 |
ACT10,ZCT15 |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-63010 |
ACT10 |
1 | ||
| 47550-63010 |
ACT10 |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
ACT10,ZCT1# 厚さ=1.2 |
2 | ||
| 47611C - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-33010 |
ACT10,ZCT15 |
1 | ||
| 47611-33010 |
ACT10,ZCT15 |
1 | ||
| 47612A - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-33010 |
ACT10,ZCT15 |
1 | ||
| 47612-33010 |
ACT10,ZCT15 |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-42010 |
ACT10,ZCT15 |
1 | ||
| 47643-42010 |
ACT10,ZCT15 |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-42010 |
ACT10,ZCT15 |
1 | ||
| 47644-42010 |
ACT10,ZCT15 |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||

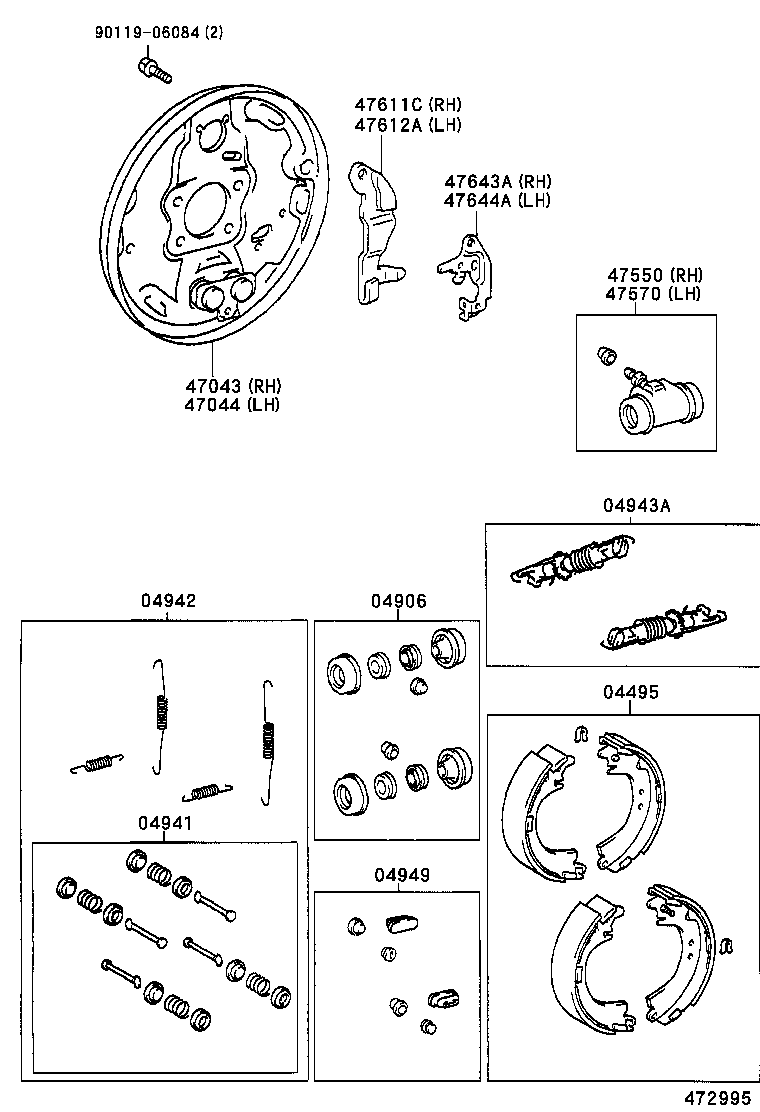

(0205- )ACT10,ZCT15
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-63010 |
ACT10,ZCT15 ﾏｰｸ AKB LA509A |
1 | ||
| 04495-52030 |
ACT10 ﾏｰｸ NBK LN521 |
1 | ||
| 04495-52030 |
ACT10,ZCT15 ﾏｰｸ NBK LN521 |
1 | ||
| 04495-52030 |
ACT10,ZCT15 ﾏｰｸ NBK LN521 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-63010 |
ACT10 |
1 | ||
| 04906-63010 |
ACT10 |
1 | ||
| 04906-42020 |
ACT10 |
1 | ||
| 04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN | ||||
| 04941-28010 |
ACT10,ZCT15 |
1 | ||
| 04942 - SPRING KIT, REAR BRAKE | ||||
| 04942-13020 |
ACT10,ZCT15 |
1 | ||
| 04942-13030 |
ACT10,ZCT15 |
1 | ||
| 04943A - STRUT KIT, REAR BRAKE | ||||
| 04943-13010 |
ACT10,ZCT15 |
1 | ||
| 04949 - PLUG KIT, REAR BRAKE | ||||
| 04949-13010 |
ACT10,ZCT15 |
1 | ||
| 04949-08030 |
ACT10 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-63010 |
ACT10,ZCT15 |
1 | ||
| 47043-63010 |
ACT10,ZCT15 |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-63010 |
ACT10,ZCT15 |
1 | ||
| 47044-63010 |
ACT10,ZCT15 |
1 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-63010 |
ACT10 |
1 | ||
| 47550-63010 |
ACT10 |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-63010 |
ACT10 |
1 | ||
| 47550-63010 |
ACT10 |
1 | ||
| 47611C - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-33010 |
ACT10,ZCT15 |
1 | ||
| 47611-33010 |
ACT10,ZCT15 |
1 | ||
| 47612A - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-33010 |
ACT10,ZCT15 |
1 | ||
| 47612-33010 |
ACT10,ZCT15 |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-42010 |
ACT10,ZCT15 |
1 | ||
| 47643-42010 |
ACT10,ZCT15 |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-42010 |
ACT10,ZCT15 |
1 | ||
| 47644-42010 |
ACT10,ZCT15 |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
