ACT10-ZHEGH (2000)

Toyota Opa

Production Aug 2000 - Apr 2005
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )ACT10

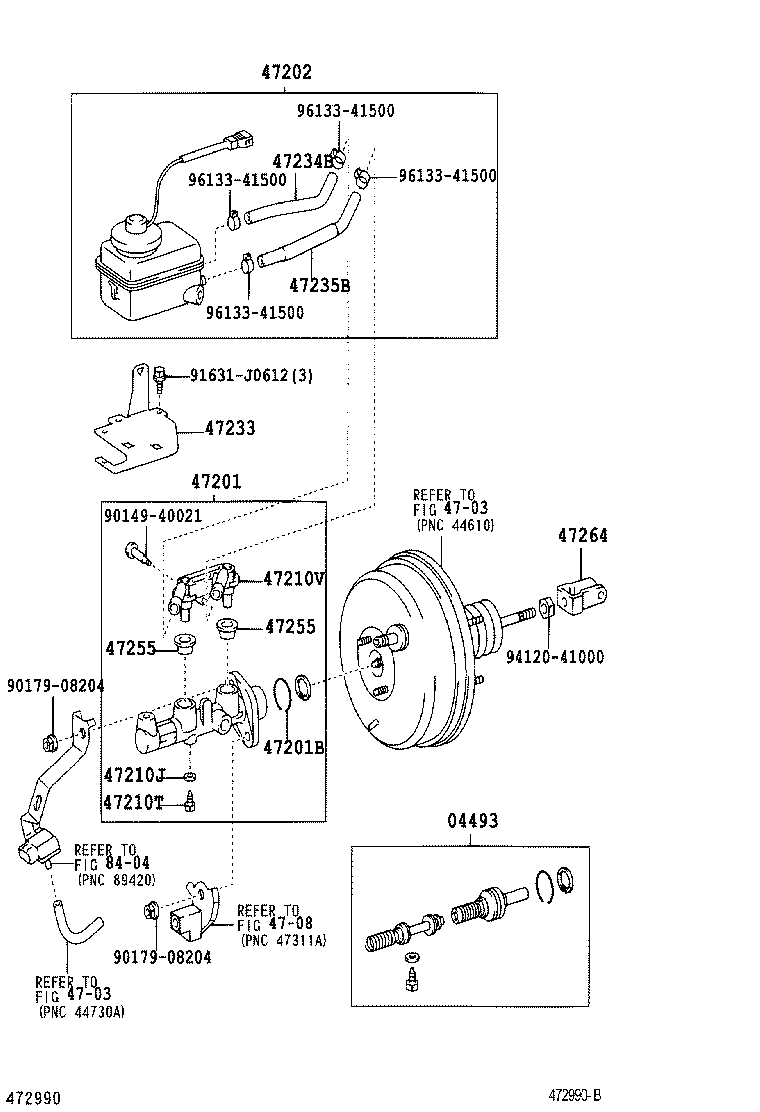

Click highlighted areas on diagram

diagram 04493 4703 4703 4708 47201 47201B 47202 47210J 47210T 47210V 47233 47234B 47235B 47255 47255 47264 8404 9014940021 9017908204 9017908204 91631J0612 9412041000 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-32120

ACT10,ZCT1#

 1
04493-32120

ACT10,ZCT1#

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-63010

ACT10,ZCT1#

 1
47201-63010

ACT10,ZCT1#

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90029-20059

ACT10,ZCT1#

 1
90029-20059

ACT10,ZCT1#

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-63020

ACT10,ZCT15

 1
47220-63021

ACT10,ZCT15

 1
47220-63021

ACT10,ZCT15

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

ACT10,ZCT1#

 1
90029-43001

ACT10,ZCT1#

 1
90029-43001

ACT10,ZCT1#

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

ACT10,ZCT1#

 1
90109-06077

ACT10,ZCT1#

 1
47210V - UNION(FOR BRAKE MASTER CYLINDER)
90029-40404

ACT10,ZCT1#

 1
90029-40404

ACT10,ZCT1#

 1
47233 - BRACKET, RESERVOIR
47233-63010

ACT10,ZCT1#

 1
47233-63010

ACT10,ZCT1#

 1
47234B - TUBE, RESERVOIR, NO.1
47234-63020

ACT10,ZCT15

 1
47234-63020

ACT10,ZCT15

 1
47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47235-63020

ACT10,ZCT15

 1
47235-63020

ACT10,ZCT15

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

ACT10,ZCT1#

 2
47255-16010

ACT10,ZCT1#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

ACT10,ZCT1#

 2
47255-16010

ACT10,ZCT1#

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-63020

ACT10,ZCT15

 1
47264-63020

ACT10,ZCT15

 1
Common parts
90149-40021
90179-08204
91631-J0612
94120-41000
96133-41500
Linked diagrams
4703
4708
8404
