ACT10-ZHEEH (2000)
Toyota Opa
Production
Aug 2000
-
May 2002
Engine
1AZFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0004-0205)

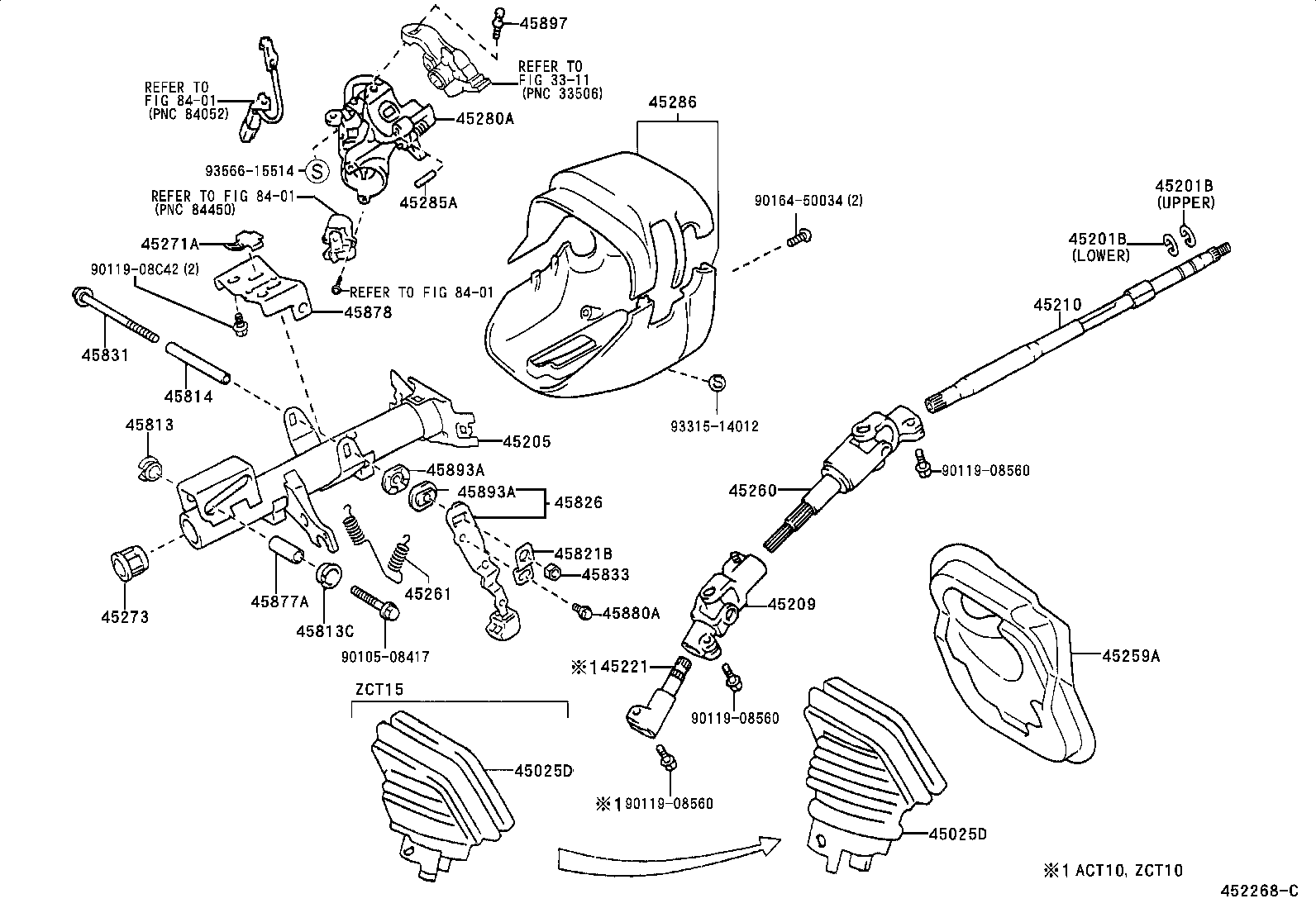

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-32150 |
ACT10,ZCT10 |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-32150 |
ACT10,ZCT10 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
ACT10,ZCT1# 厚さ=1.20,下側 |
1 | ||
| 90520-17269 |
ACT10,ZCT1# 厚さ=1.20,上側 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
ACT10,ZCT1# 厚さ=1.20,下側 |
1 | ||
| 90520-17269 |
ACT10,ZCT1# 厚さ=1.20,上側 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-63010 |
ACT10,ZCT1# |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-63010 |
ACT10,ZCT10 |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-32200 |
ACT10,ZCT1# |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-32120 |
ACT10,ZCT10 |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-63010 |
ACT10,ZCT1# |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-63010 |
ACT10,ZCT10 |
1 | ||
| 45261 - SPRING, TILT STEERING JUMP UP | ||||
| 45261-20010 |
ACT10,ZCT1# |
1 | ||
| 45271A - CLAMP, STEERING COLUMN, UPPER NO.2 | ||||
| 45271-52010 |
ACT10,ZCT1# |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-20060 |
ACT10,ZCT1# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-32191 |
ACT10,ZCT1# |
1 | ||
| 45285A - PIN, STEERING LOCK | ||||
| 45285-32010 |
ACT10,ZCT1# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-63901B0 |
ACT10 DK.GRAY,TRIM1# |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-52010 |
ACT10,ZCT1# 外径=24 |
1 | ||
| 45813C - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-52020 |
ACT10,ZCT1# |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-52010 |
ACT10,ZCT1# 外径=8 |
1 | ||
| 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 | ||||
| 45821-52010 |
ACT10,ZCT1# |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-52020 |
ACT10,ZCT1# |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-52010 |
ACT10,ZCT1# |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-52010 |
ACT10,ZCT1# |
1 | ||
| 45877A - SPACER, STEERING COLUMN BRACKET | ||||
| 45877-52010 |
ACT10,ZCT1# |
1 | ||
| 45878 - BRACKET, STEERING COLUMN UPPER SUPPORT | ||||
| 45878-52010 |
ACT10,ZCT1# |
1 | ||
| 45880A - BOLT(FOR STEERING TILT LEVER) | ||||
| 45832-12010 |
ACT10,ZCT1# |
1 | ||
| 45893A - STOPPER, TILT STEERING PAWL | ||||
| 45893-52010 |
ACT10,ZCT1# |
2 | ||
| 45893A - STOPPER, TILT STEERING PAWL | ||||
| 45893-52010 |
ACT10,ZCT1# |
2 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ACT10,ZCT1# |
1 | ||
| Common parts | ||||
| 90105-08417 | ||||
| 90119-08560 | ||||
| 90119-08C42 | ||||
| 90164-50034 | ||||
| 93315-14012 | ||||
| 93566-15514 | ||||
| Linked diagrams | ||||
| 3311 | ||||
| 8401 | ||||
