ACT10-ZHEEH (2000)

Toyota Opa

Production Aug 2000 - May 2002
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )1AZFSE

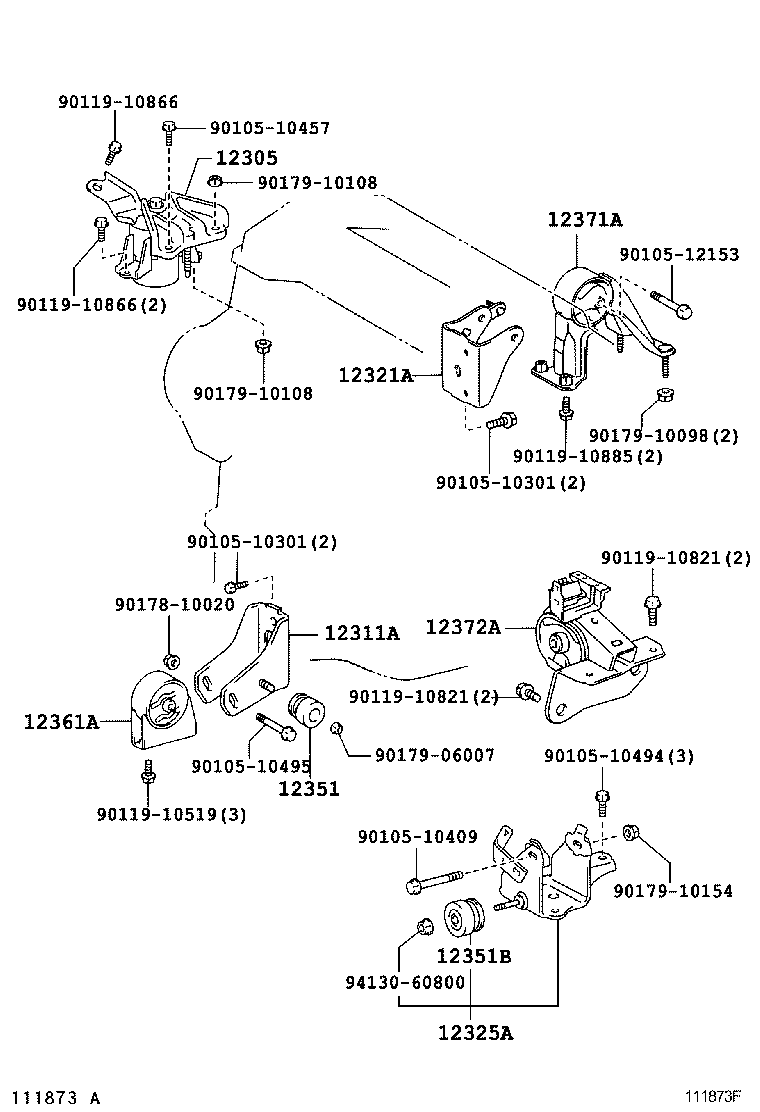

Click highlighted areas on diagram

diagram 12305 12311A 12321A 12325A 12351 12351B 12361A 12371A 12372A 9010510301 9010510301 9010510409 9010510457 9010510494 9010510495 9010512153 9011910519 9011910821 9011910821 9011910866 9011910866 9011910885 9017810020 9017906007 9017910098 9017910108 9017910108 9017910154 9413060800
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-28130

1AZFSE..ACT10

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-28050

1AZFSE..ACT10

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-28070

1AZFSE..ACT10

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12304-28020

1AZFSE..ACT10

 1
12351 - DAMPER, ENGINE MOUNTING
12351-64020

1AZFSE..ACT10

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-74531

1AZFSE..ACT10

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-74570

1AZFSE..ACT10

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12306-28050

1AZFSE..ACT10

 1
Common parts
90105-10301
90105-10409
90105-10457
90105-10494
90105-10495
90105-12153
90119-10519
90119-10821
90119-10866
90119-10885
90178-10020
90179-06007
90179-10098
90179-10108
90179-10154
94130-60800
