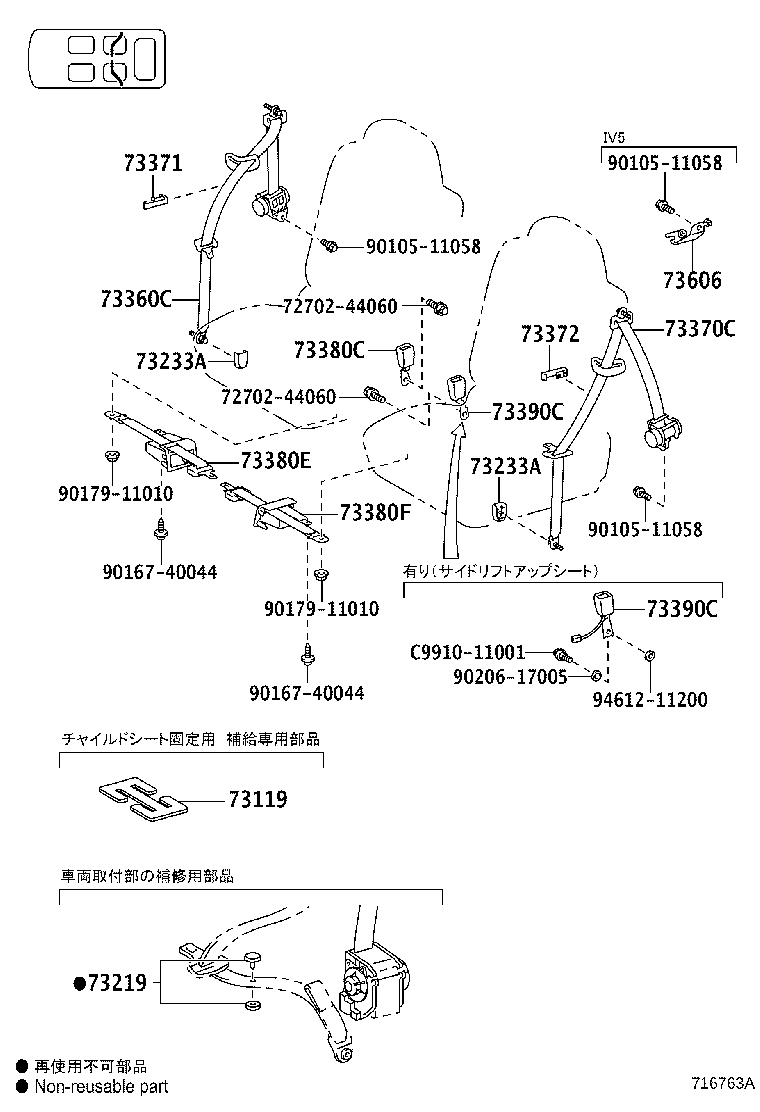

ZRR75W-BPXSP (2010)
Toyota Noah/Voxy
(1004- )07S
ﾘﾔ NO.1 ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
ZRR7#..CBU,IV5 |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
ZRR7#..CBU,IV5 ﾌﾞﾗｯｸ |
1 | ||
| 73219-33020 |
ZRR7#..CBU,IV5 ｸﾞﾚｰ |
1 | ||
| 73219-33030 |
ZRR7#..CBU,IV5 ﾍﾞｰｼﾞｭ |
1 | ||
| 73233A - COVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT | ||||
| 73233-52010B1 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU DK.GRAY,TRIM1# |
2 | ||
| 73233-52010C0 |
ZRR70..(05S,08S)..(CBU,IV5);ZRR70..07S..(S,SI,V,X,Z,ZS)..CBU;ZRR75..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU BLACK,TRIM2# |
2 | ||
| 73233A - COVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT | ||||
| 73233-52010B1 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU DK.GRAY,TRIM1# |
2 | ||
| 73233-52010C0 |
ZRR70..(05S,08S)..(CBU,IV5);ZRR70..07S..(S,SI,V,X,Z,ZS)..CBU;ZRR75..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU BLACK,TRIM2# |
2 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-28430B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
1 | ||
| 73360-28700B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) BLACK,TRIM2# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-28610B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU BLACK,TRIM1# |
1 | ||
| 73370-28630B0 |
ZRR70..(05S,08S)..(CBU,IV5);ZRR70..07S..(S,SI,V,X,Z,ZS)..CBU;ZRR75..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU BLACK,TRIM2# |
1 | ||
| 73371 - HANGER, REAR SEAT SHOULDER BELT, RH | ||||
| 73371-16050P6 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 73371-1605022 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) BLACK,TRIM2# |
1 | ||
| 73372 - HANGER, REAR SEAT SHOULDER BELT, LH | ||||
| 73371-1605022 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) BLACK,TRIM2# |
1 | ||
| 73371-16050P6 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 73380-28530C1 |
ZRR7#..07S..(S,SI,V,X,Z,ZS)..CBU BLACK,TRIM2# |
1 | ||
| 73380E - BELT ASSY, RR SEAT, INNER | ||||
| 73360-28710C1 |
ZRR7#..07S..(S,SI,V,X,Z,ZS)..CBU BLACK,TRIM2# |
1 | ||
| 73380F - BELT ASSY, RR SEAT, INNER | ||||
| 73370-28640C0 |
ZRR7#..07S..(S,SI,V,X,Z,ZS)..CBU BLACK,TRIM2# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73380-28530C1 |
ZRR7#..07S..(S,SI,V,X,Z,ZS)..CBU BLACK,TRIM2# |
1 | ||
| 73230-28540B0 |
ZRR7#..07S..CBU DK.GRAY,TRIM1# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73380-28530C1 |
ZRR7#..07S..(S,SI,V,X,Z,ZS)..CBU BLACK,TRIM2# |
1 | ||
| 73230-28540B0 |
ZRR7#..07S..CBU DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-44060 | ||||
| 90105-11058 | ||||
| 90167-40044 | ||||
| 90179-11010 | ||||
| 90206-17005 | ||||
| 94612-11200 | ||||
| C9910-11001 | ||||

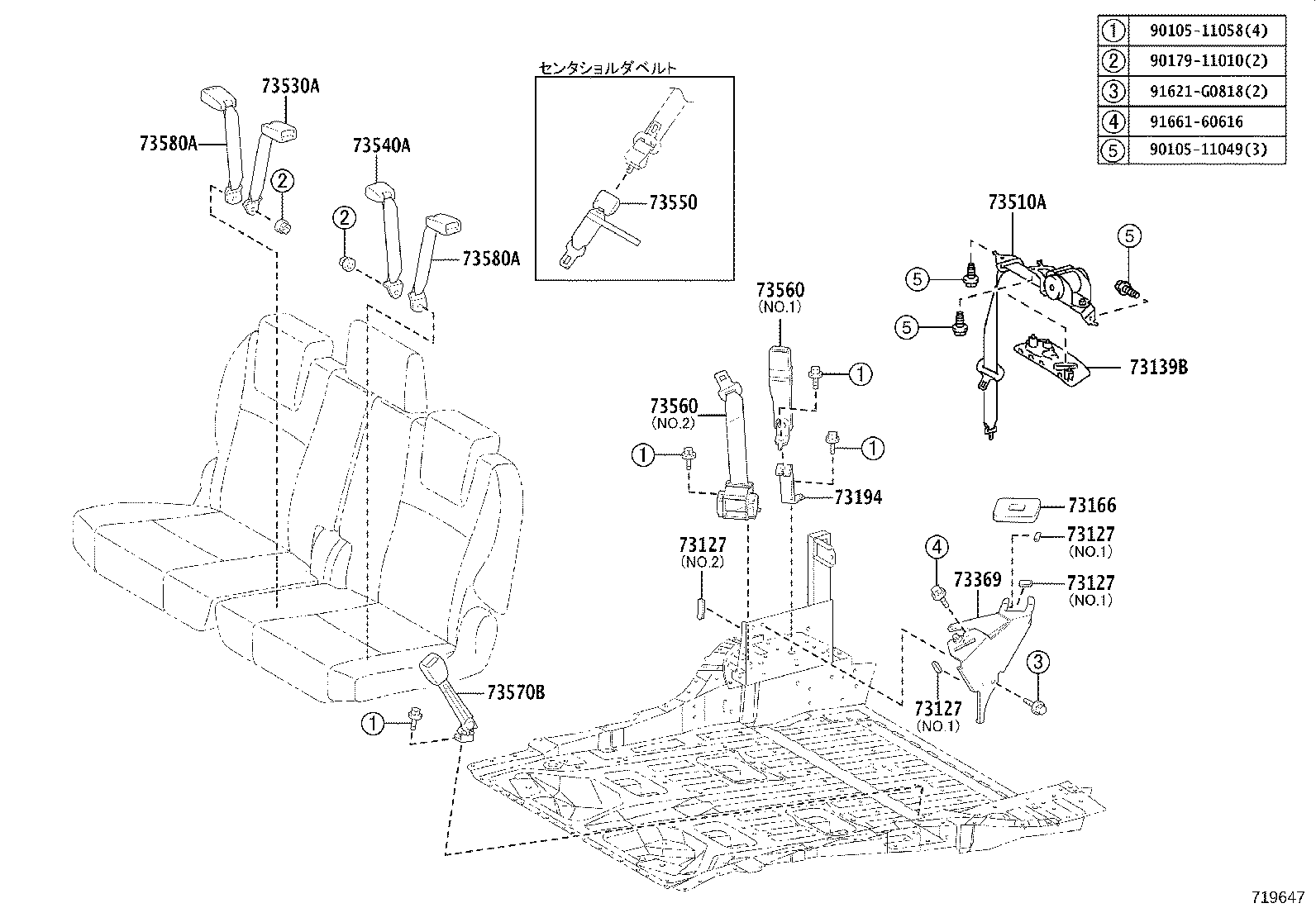

(1005- )07S,08S
ﾘﾔ NO.2 ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73139B - COVER, SEAT BELT ANCHOR | ||||
| 73139-28050B0 |
ZRR7#..(S,SI,V,X,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM2# |
1 | ||
| 73510A - BELT ASSY, REAR NO.2 SEAT, 3 POINT TYPE | ||||
| 73510-28130C0 |
ZRR7#..(S,SI,V,X,Z,ZS)..(CBU,IV5) BLACK,TRIM2# |
1 | ||
| 73530A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, RH | ||||
| 73530-28110C0 |
ZRR7#..(S,SI,V,X,Z,ZS)..CBU BLACK,TRIM2# |
1 | ||
| 73540A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, LH | ||||
| 73540-28100B0 |
ZRR7#..(S,SI,V,X,Z,ZS)..CBU DK.GRAY,TRIM1# |
1 | ||
| 73540-28110C0 |
ZRR7#..(S,SI,V,X,Z,ZS)..CBU BLACK,TRIM2# |
1 | ||
| 73550 - BELT ASSY, REAR NO.2 SEAT LAP TYPE, CENTER | ||||
| 73550-28100B0 |
ZRR7#..(S,SI,V,X,Z,ZS)..CBU DK.GRAY,TRIM1# |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-28410B0 |
ZRR7#..(S,SI,V,X,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
1 | ||
| 73560-28420B0 |
ZRR7#..(S,SI,V,X,Z,ZS)..(CBU,IV5) BLACK,TRIM2# |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-28410B0 |
ZRR7#..(S,SI,V,X,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
1 | ||
| 73560-28420B0 |
ZRR7#..(S,SI,V,X,Z,ZS)..(CBU,IV5) BLACK,TRIM2# |
1 | ||
| 73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER | ||||
| 73580-28200B0 |
ZRR7#..(S,SI,V,X,Z,ZS)..CBU DK.GRAY,TRIM1# |
2 | ||
| 73580-28230C0 |
ZRR7#..(S,SI,V,X,Z,ZS)..CBU BLACK,TRIM2# |
2 | ||
| 73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER | ||||
| 73580-28200B0 |
ZRR7#..(S,SI,V,X,Z,ZS)..CBU DK.GRAY,TRIM1# |
2 | ||
| 73580-28230C0 |
ZRR7#..(S,SI,V,X,Z,ZS)..CBU BLACK,TRIM2# |
2 | ||
| Common parts | ||||
| 90105-11049 | ||||
| 90105-11058 | ||||
| 90179-11010 | ||||
| 91621-G0818 | ||||
| 91661-60616 | ||||
