ZRR75W-APXSP (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0706- )

Click highlighted areas on diagram

ﾚﾌﾄ

diagram 04438H 04438J 41336E 43040 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448F 43448G 43470 43474E 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04428-58030

ZRR75..CBU,IV5;ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5)

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-42180

ZRR7#..CBU,IV5

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-28020

ZRR7#..CBU,IV5

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-28011

ZRR7#..CBU,IV5

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-28010

ZRR7#..CBU,IV5

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-44050

ZRR75..(S,SI,Z,ZS)..CBU

 1
43420-44120

ZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-33002

ZRR7#..CBU,IV5

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-50026

ZRR7#..CBU,IV5

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-42100

ZRR7#..CBU,IV5

 1
42345-20040

ZRR7#..CBU,IV5

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-42090

ZRR7#..CBU,IV5

 1
42345-28020

ZRR7#..CBU,IV5

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-42010

ZRR7#..CBU,IV5

TYPE A:ｲﾗｽﾄ参照

 1
90949-01559

ZRR7#..CBU,IV5

TYPE B:ｲﾗｽﾄ参照

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-42010

ZRR7#..CBU,IV5

TYPE A:ｲﾗｽﾄ参照

 1
90949-01559

ZRR7#..CBU,IV5

TYPE B:ｲﾗｽﾄ参照

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160

ZRR7#..CBU,IV5

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-80167

ZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)

 1
43470-80064

ZRR7#..(S,SI,Z,ZS)..(CBU,IV5)

 1

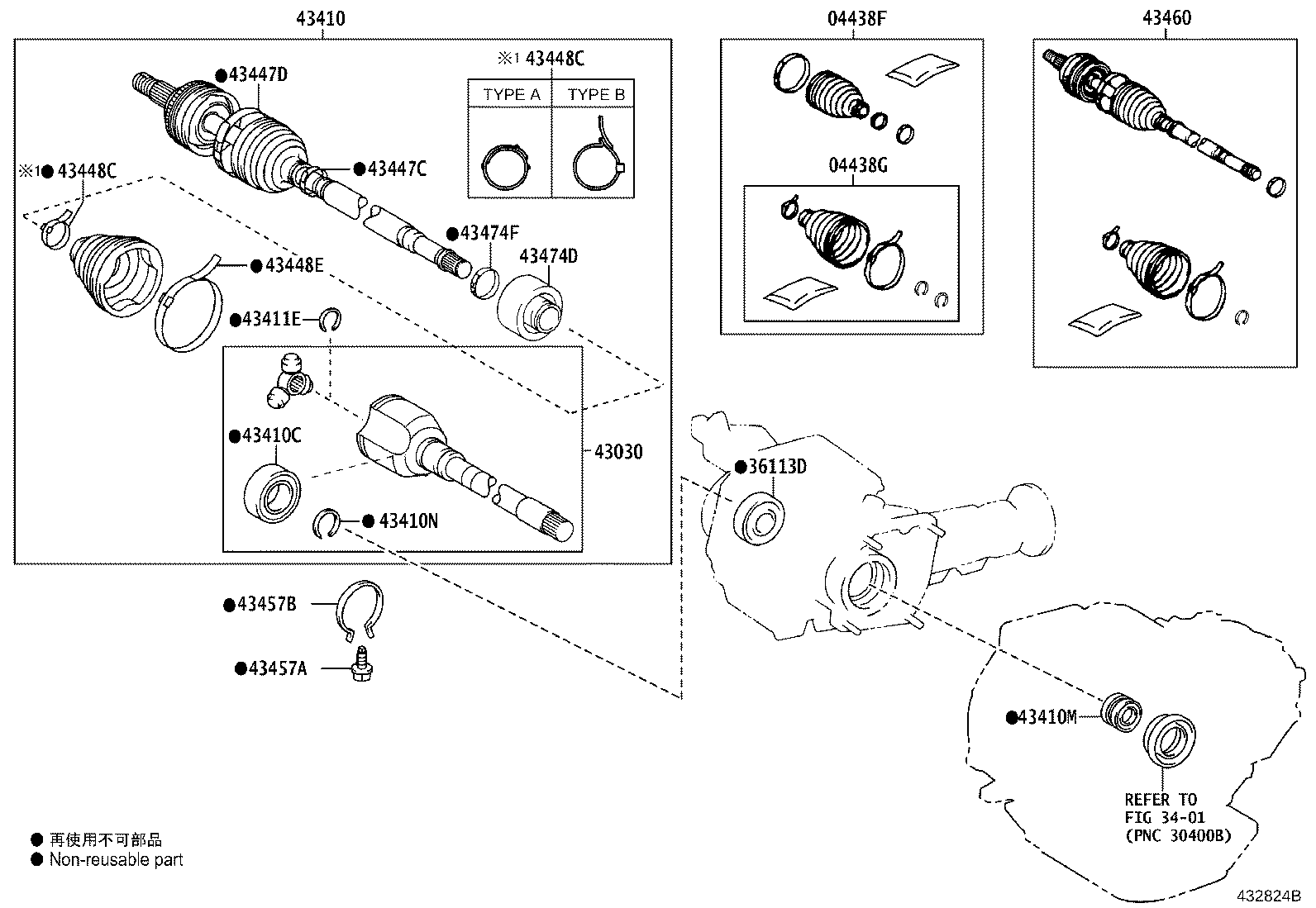

ILLUST NO. 1 OF 2(0706- )ZRR75

Click highlighted areas on diagram

ﾗｲﾄ

diagram 04438F 04438G 3401 36113D 43030 43410 43410C 43410M 43410N 43411E 43447C 43447D 43448C 43448C 43448E 43457A 43457B 43460 43474D 43474F
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04428-58030

ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-42180

ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)

 1
36113D - SEAL, OIL (FOR TRANSFER CASE RH)
90311-36006

ZRR75..CBU,IV5

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-28031

ZRR75..CBU,IV5

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-28090

ZRR75..(G,TRASX,V,X,YY)..(CBU,IV5)

 1
43410-28140

ZRR75..(S,SI,Z,ZS)..CBU

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-36006

ZRR75..CBU,IV5

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90316-28003

ZRR75..CBU,IV5

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-33008

ZRR75..CBU,IV5

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-28010

ZRR7#..CBU,IV5

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-42100

ZRR7#..CBU,IV5

 1
42345-20040

ZRR7#..CBU,IV5

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-42090

ZRR7#..CBU,IV5

 1
42345-28020

ZRR7#..CBU,IV5

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01559

ZRR7#..CBU,IV5

TYPE B:ｲﾗｽﾄ参照

 1
42345-42010

ZRR7#..CBU,IV5

TYPE A:ｲﾗｽﾄ参照

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01559

ZRR7#..CBU,IV5

TYPE B:ｲﾗｽﾄ参照

 1
42345-42010

ZRR7#..CBU,IV5

TYPE A:ｲﾗｽﾄ参照

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160

ZRR7#..CBU,IV5

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90901-19060

ZRR75..CBU,IV5

*10−1.25PX28.5−14.8

 1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-75002

ZRR75..CBU,IV5

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-29665

ZRR75..(S,SI,Z,ZS)..CBU

 1
43470-80171

ZRR75..(G,TRASX,V,X,YY)..(CBU,IV5)

 1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-44010

ZRR75..CBU,IV5;ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5)

 1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010

ZRR7#..CBU,IV5

 1
Linked diagrams
3401
