ZRR75G-BRXEK (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010
Engine 3ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706- )ZRR75

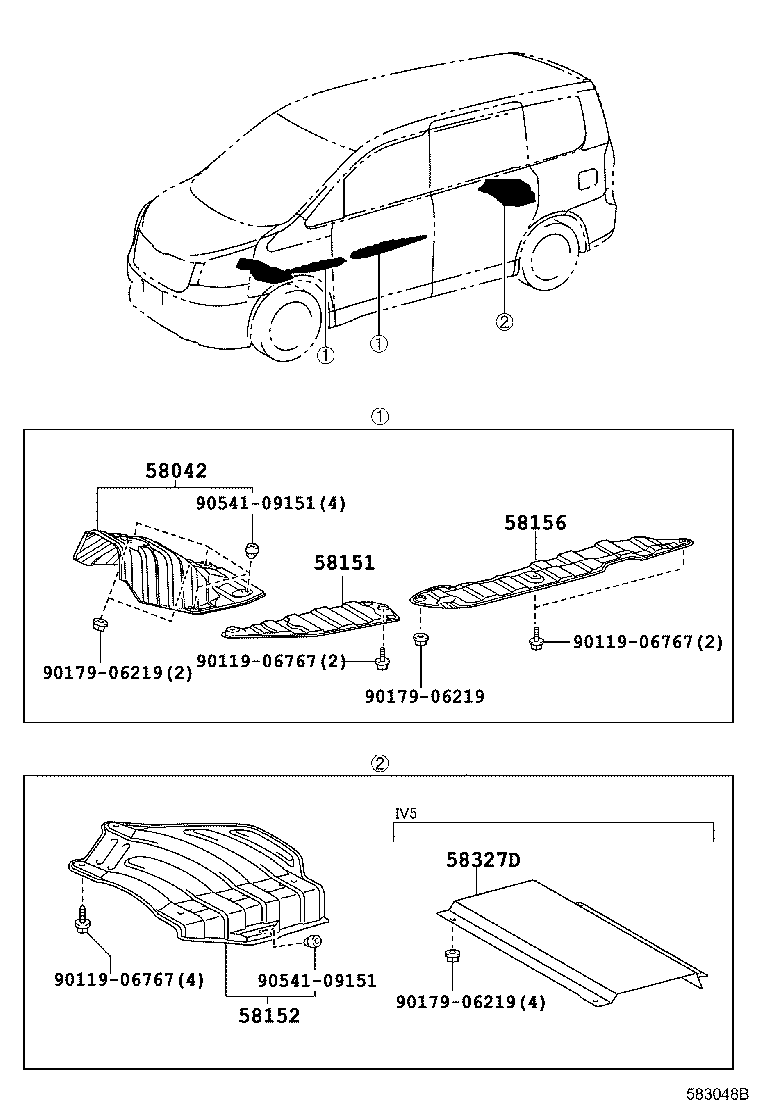

Click highlighted areas on diagram

diagram 58042 58151 58152 58156 58327D 9011906767 9011906767 9011906767 9017906219 9017906219 9017906219 9054109151 9054109151
Part # Description Qty Price
58042 - INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.2
58042-28030

ZRR7#..CBU,IV5

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-28120

ZRR75..CBU,IV5

 1
58152 - INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2
58152-44020

ZRR75..CBU

 1
58156 - INSULATOR, FRONT FLOOR HEAT, NO.4
58156-28010

ZRR75..CBU,IV5

 1
Common parts
90119-06767
90179-06219
90541-09151
